Parker Rectus Elbow Fittings: Precisely Selecting Material, Form, and Application

Elbow fittings are connecting components that safely redirect flow paths, minimize pressure losses, and allow flexible use of installation spaces. Parker Rectus offers various materials and sealing options to meet the high demands of production technology: raw or nickel-plated brass, stainless steel for corrosive environments, anodized aluminum for lightweight, electrically insulating constructions, and special alloys upon request. The selection of the correct material and appropriate thread size determines corrosion resistance, mechanical strength, and the service life-defining properties of the fitting.

Material Specifics and Application Limits

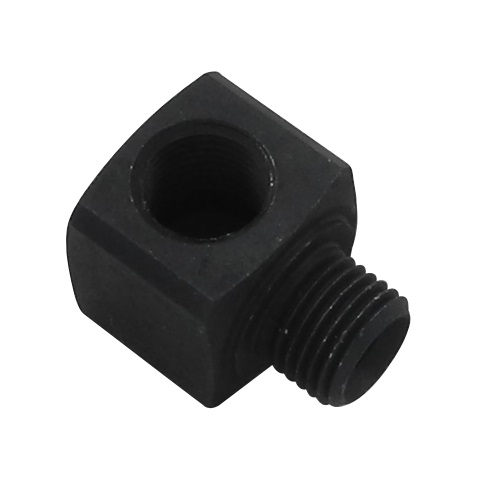

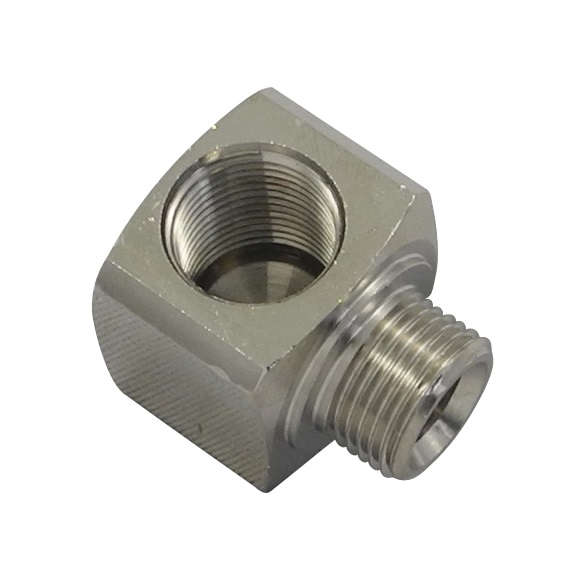

Brass offers a favorable balance of workability and corrosion protection for general compressed air and hydraulic applications. Nickel-plated versions increase abrasion and corrosion resistance in slightly aggressive atmospheres. Stainless steel (typically AISI 316 / material 1.4401) is required for contact with water, coolants, or aggressive media; it ensures chemical resistance and temperature stability. Anodized aluminum reduces weight and is suitable for applications where electrical insulation and corrosion protection against atmospheric influences are important. For food, pharmaceutical, or medical technology, polished, certified stainless steels and suitable sealing materials are essential.

Designs, Thread Types, and Geometries

Parker Rectus elbow fittings are available as 45° or 90° angles, in straight-through, reducing, and swivel variants. Standard threads include metric ISO thread (M), BSPP/BSPT, and NPT for international applications. For precise installation in confined spaces, compact designs and slender S-shapes are available. The selection of the thread size determines the flow cross-section and pressure loss; for higher volume flows, larger components or smaller bend radii are preferable to minimize turbulence and pressure drop. Sealing concepts range from pre-assembled O-rings made of NBR, FKM, or EPDM to metal sealing surfaces for high-pressure or vacuum applications.

Connection Variants and Sealing Techniques

Connections are available as screw-in, push-in, or quick-coupling compatible forms. Screw-in variants with a conical sealing surface are suitable for permanent systems, while push-in connections allow quick assembly and disassembly. O-rings made of NBR are standard for compressed air; FKM (Viton) is resistant to oils and high temperatures; EPDM is suitable for water and steam applications. Metallic-to-metal seals are used for high pressures and temperature fluctuations. When selecting, pay attention to the temperature range, chemical resistance, and HRTL requirements of the system.

Mechanical Stress and Installation Instructions

Elbow fittings must absorb mechanical loads at mounting points and dampen vibrations. For metallic connections, use torques according to manufacturer specifications to avoid overload and thread damage. To prevent galling and material deformation, torque limitations and, if necessary, flanges or brackets are recommended to relieve the fittings. For stainless steel fittings, galvanic corrosion between different metals must be considered; insulating washers or suitable sealants prevent contact corrosion. For swivel variants, lubrication and wear protection measures, as well as regular inspections, are provided.

Thermal and Chemical Resistance

Temperature resistance depends on the material and seal: brass systems are typically usable up to about 120°C, nickel-plated variants slightly above; stainless steel versions support significantly higher temperatures up to over 300°C, depending on the sealant and operating conditions. Chemical resistance requires the combination of suitable materials with compatible seals. Check compatibility lists and material data sheets before use in contact with coolants, solvents, or process chemicals. For aggressive media, coated surfaces or special material versions are preferable.

Leakage Behavior and Test Procedures

Elbow fittings should be checked for leaks before installation. Common test procedures include compressed air tests, vacuum tests, and leak rate measurement according to DIN/ISO standards. For safety-relevant installations, regular re-tests and documented test runs are mandatory. For critical applications, the use of test rings or double-sealed systems is advisable to ensure secondary sealing.

Practical Examples: Use of Elbow Fittings in Production

Precise assembly in a production line: In an assembly cell with limited space, a 90° elbow fitting made of nickel-plated brass ensures the safe redirection of the compressed air line at a screwing station. The compact design reduces the bending radius and prevents kinks in the hose, while an NBR O-ring secures the connection against leakage. Result: constant pressure supply without flow loss.

Coolant integration on machine tools: On a CNC machine, coolants are routed via stainless steel elbow fittings (AISI 316) with EPDM seals. The elbow fittings are corrosion-resistant to emulsified coolants and allow for a secure, separable installation directly on machine nozzles. The lower friction resistance and smooth inner surface minimize deposits and facilitate cleaning intervals.

Lightweight, insulated cable routing in robot cells: In robotics applications, anodized aluminum elbow fittings are used to reduce weight on the arm and ensure electrical insulation. Combination with quick couplings enables tool-free maintenance and quick replacement of end effectors. The elbow fittings are arranged to minimize bending stress on flexible lines while not affecting signal and power lines.

Vacuum applications in packaging lines: For vacuum grippers, elbow fittings with metal-to-metal seals are used to avoid microscopic leaks. Precise machining of the sealing surfaces and suitable surface roughness ensure low leak rates and constant vacuum values over long operating times.

Selection Criteria and Decision Tree

The selection of the appropriate elbow fitting is based on operating pressure, medium, temperature, thread type, installation space, and maintenance strategy. Start by defining the medium and maximum operating temperature, then select the material and seal according to chemical resistance, determine the necessary thread size according to volume flow and final pressure, and finally check the mechanical load capacity and installation conditions. Detailed technical information and material data can be found in our product data sheets and at https://maku-industrie.de/technik.

• Select material according to medium and environment; seal according to temperature and chemical resistance; thread according to flow requirements and installation space.

Maintenance, Storage, and Technical Support

Store elbow fittings dry, separated by material, to avoid galvanic corrosion. Avoid stacking that could damage surfaces. During installation, observe the manufacturer's torque specifications and do not overstretch seals. Plan inspection intervals to check for leaks, corrosion, and mechanical wear. For individual applications, we provide technical support and material data sheets; further application examples and practical reports can be found at https://maku-industrie.de/anwendungsbeispiele.

Conformity, Standards, and Documentation

Parker Rectus elbow fittings comply with common industry standards and can be supplied with compliant test certificates upon request. Pay attention to standard references such as DIN, ISO, or specific FDA/NSF certificates for food and pharmaceutical applications. Document installation locations, serial numbers, and test reports to ensure traceability and operational safety.

FAQs

1. Which elbow fitting material is suitable for coolants?

For coolants, stainless steel (AISI 316) is the first choice due to its corrosion resistance and chemical resistance; EPDM or special FKM seals should be selected depending on the composition of the coolant. Check compatibility lists and operating data of the media before selection.

2. How does the angle degree affect pressure loss?

Larger angles (90°) create a stronger change in direction and higher local turbulence than smaller angles (45°), leading to increased pressure loss. For high volume flows or pressure-critical systems, shallower angles or larger cross-sections are preferable to minimize pressure drop.

3. When are metallic seals necessary?

Metallic seals are useful for very high pressures, high temperatures, aggressive media, or vacuum applications where elastic seals would fail. They offer high temperature stability and low relaxation, but require precisely machined sealing surfaces and, if necessary, readjustment concepts.
