Seal Kits for Hydraulic Plugs and Quick Couplings: Materials, Designs, and Applications

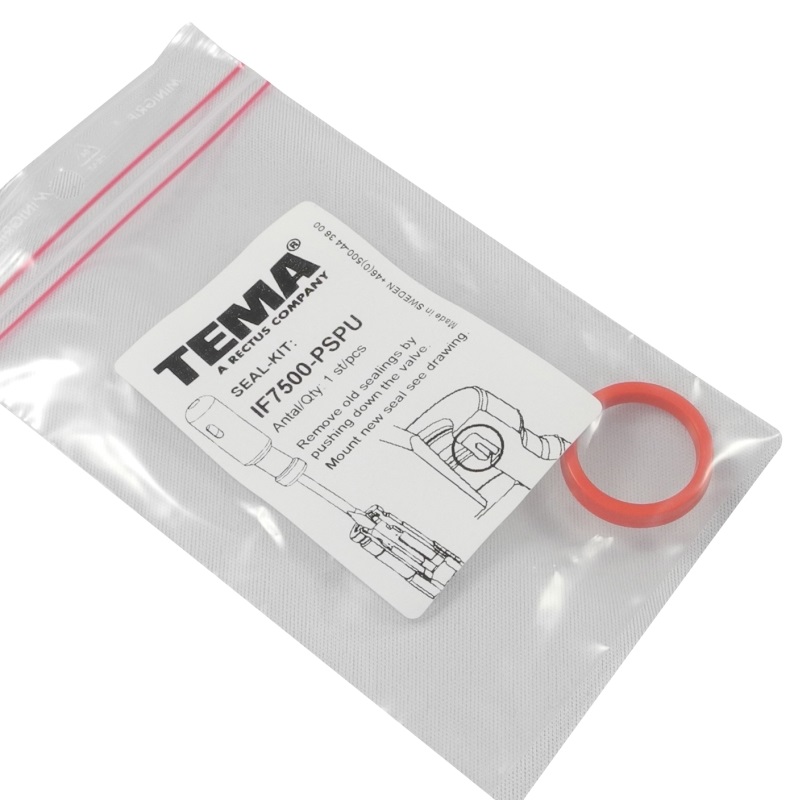

Seal kits for hydraulic plugs and quick couplings are wear-determining components in the hydraulic circuit. Choosing the right maintenance kit determines leak-tightness, service life, and downtime. This text describes materials, designs, connection-specific requirements, and practical applications for Rectus and comparable couplings, enabling you to select suitable repair kits and optimize assembly steps.

Materials and Their Properties

Common elastomers for hydraulic seals include FKM (fluororubber), NBR (nitrile rubber), EPDM, and polyurethane (PUR). FKM offers high resistance to hydraulic oils, high temperatures, and chemical attacks, making it suitable for high-temperature and high-pressure applications. NBR is characterized by very good oil resistance and favorable costs but is limited in higher temperature ranges and against ozone. EPDM is insensitive to hot water, steam, and certain additives but less resistant to mineral oil-based hydraulic fluids; EPDM is often used in water-based or glycol-containing systems. PUR offers high abrasion resistance and mechanical resilience, making it suitable for dynamic seals with frequent movement. In seal kits for plugs, combinations of these materials are often used to cover static and dynamic sealing.

Designs and Functional Principle

Seal kits typically contain O-rings, flat gaskets, disc springs, check valve seals, and special molded parts for coupling pistons and plugs. O-rings and radially acting seals handle static and light dynamic sealing. Flat gaskets and specifically shaped sealing washers prevent leaks at ring-seated flanges and screw connections. Disc springs or spring pressure systems in coupling units ensure a form-fitting seat and compensate for wear. In quick couplings, additional protective rings and abrasion discs are necessary to prevent damage to plug tips and to regulate insertion and return forces. In Rectus systems, the geometry of the sealing elements is often matched to the preload of the locking grooves and the piston guide; replacement kits therefore contain precisely profiled parts.

Connection- and Component-Specific Requirements

Plugs and quick couplings differ in sealing principle, nominal size, and locking mechanism. For high-pressure hydraulics, seals with low compressibility and high abrasion resistance are required. For threaded connections, weld ends, or press connections, form-fitting surfaces and soft elastomers are combined to compensate for microscopic unevenness. For manufactured plugs with piston guides, attention must be paid to the fit between the piston and the nipple to avoid cavitation and flank leakage. Seal kits must therefore meet the dimensions and tolerances of the original parts; deviations lead to gap flows and premature failure.

Temperature, Media, and Pressure Range

Seal selection is based on temperature range, type of hydraulic medium, and operating pressure. Typical ranges: NBR up to approx. +100 °C, FKM up to +200 °C, EPDM up to +150 °C, PUR up to +120 °C. For continuous pressure, shocks, and pulsations, polymeric materials with high fatigue resistance are advantageous. For offshore or humid environments, FKM or specific NBR with additional coatings is recommended. Chemical compatibility tests with additives such as corrosion inhibitors, thickeners, or flame retardants are required. Pressure ranges of quick couplings vary; systems up to 300 bar are common, special variants reach higher pressures. Seal kits specify the permissible operating parameters; do not exceed them.

Assembly, Maintenance, and Testing Procedures

Before installation, the mounting surface must be mechanically cleaned, sharp edges deburred, and sealing grooves checked for burrs. Use only manufacturer-recommended greases for lubrication to avoid swelling or embrittlement processes. The assembly sequence and torque specifications for screw connections must be observed, as well as the correct positioning of O-rings in their grooves. After assembly, leak tests under defined pressure must be carried out, followed by a short-term test under operating conditions. For routine maintenance, it is recommended to replace complete maintenance kits instead of individual components to avoid material aging and mixed material combinations.

Practical Examples: Use Cases and Solutions

1) Industrial hydraulics with high-temperature oil: In a press system, intermittent leaks occurred at Rectus quick couplings. Analysis revealed thermally stressed NBR O-rings. Solution: Replacement with an FKM seal kit according to original dimensions, plus slight adjustment of the coupling spring preload. Result: Leak-tightness at 140 °C and reduced replacement frequency. 2) Mobile hydraulics with abrasive media: On a concrete mixer, plugs and couplings were heavily worn. Replacing the standard O-rings with PUR-based sealing rings with higher abrasion resistance and an additional protective ring led to improved running behavior and longer service intervals. Sliding surfaces were provided with a thin PTFE layer to minimize friction. 3) Water-based cooling systems: In an injection molding machine with a glycol-containing medium, EPDM seals were required. The suitable seal kit contained EPDM flat gaskets and corrosion-resistant stainless steel springs for the locking mechanism. No chemical or swelling damage observed after installation; regular visual inspections every 6 months recommended. These case studies show that the selection of the right material, the adjustment of the spring preload, and, if necessary, the use of protective rings are crucial for performance. Further application cases and technical explanations can be found under Application Examples and detailed technical pages under Technology.

Selection Criteria for Purchasing Seal Kits

Choose seal kits based on the following criteria: * Compatibility with hydraulic medium, temperature, and pressure range; * Material resistance to additives and environmental conditions; * Dimensional tolerances and fit for Rectus or OEM components; * Completeness of the kit: O-rings, flat gaskets, springs, and protective rings; * Manufacturer information, test reports, and spare part numbers. A complete maintenance kit reduces sources of error during assembly and is more economical in the long term than replacing individual parts. Pay attention to documentation of material certificates and test protocols, especially in safety-relevant applications.

Quality Assurance and Storage

Store seal kits cool, dry, and protected from light, separate from solvents and chemicals. Elastomers age under UV and ozone exposure; long-term storage can lead to embrittlement. Quality inspection before installation: visual inspection for cracks, dimensional inspection of O-rings, and simple hardness measurement by Shore A. For critical applications, batch traceability and release by test protocols are recommended.

Compatible Spare Parts and Documentation

When purchasing seal kits, pay attention to exact spare part numbers and, if necessary, approvals from the original manufacturer. Dimension tables, exploded drawings, and spare parts lists simplify assignment. In our online shop, you will find well-maintained product descriptions with material specifications and installation sketches; selection is made according to nominal size and functional form.

Contact and Further Information

For technical advice on selecting suitable seal kits or evaluating media tests, you can request product-related data sheets or consult our technical pages: https://maku-industrie.de/technik. Specific installation examples and case studies are documented under https://maku-industrie.de/anwendungsbeispiele.

FAQ

Which materials are suitable for high-pressure hydraulics up to 300 bar? FKM and specially formulated NBR with high pressure and abrasion resistance are suitable; PUR is recommended for high dynamic loads. Choose kits with reinforced abrasion discs and appropriate spring preload. How often should seal kits be changed? Change intervals depend on operating hours, operating temperature, and medium; for critical systems, documented intervals and replacement during any major disassembly are recommended. Often, planned replacement every 12–24 months is sensible, or earlier depending on practical use. Can I replace individual components of a kit, or must the complete maintenance kit be used? From a functional perspective, replacing complete maintenance kits is preferable to avoid material mixing, wear differences, and improper combinations. Individual part replacement is possible if material, shape, and dimensions are precisely documented and the connecting parts are still in good condition.
