Temperature Control Couplings for Mold Cooling: Technical Selection Criteria and Application Practice

Temperature control couplings for mold cooling connect tool interiors and temperature control circuits securely, quickly, and leak-tight. In injection molding and blow molding, the coupling determines short cycles, leakage risk, and maintenance effort. This category includes shut-off quick couplings in brass and nickel-plated versions with Safe-Lock mechanism, compatible with external threads, internal threads, and hose connections. The focus is on corrosion resistance, sealing material, flow performance, as well as ease of assembly and cleaning.

Materials and Coatings

Brass offers good thermal conductivity and is cost-effective to machine; it is suitable for many temperature control applications with water or glycol-water mixtures. For higher corrosion requirements or in more aggressive media, a nickel-plated brass surface is recommended, which reduces contact corrosion and protects friction points. Alternatively, in special cases, stainless steel (1.4404/316L) is used when chlorides, high temperatures, or abrasive additives are expected. Components such as springs and balls are made corrosion-resistant to prevent malfunctions of the quick coupling.

Designs and Connection Variants

For tool plates and external applications, compact nipples with external threads (e.g., G, BSPP, NPT) are common. Internal thread versions allow for flush milling into cooling channel bushings and reduce dead volume. Hose connections in straight or angled form are suitable for flexible supply lines in retrofit systems. Shut-off couplings prevent pressure loss and medium leakage when disconnected, thereby protecting the temperature control circuit and tools. Safe-Lock mechanisms provide additional security against unintentional disconnection due to vibrations and high pressures.

Seals and Temperature/Pressure Ranges

Sealing materials determine chemical compatibility and temperature range. EPDM is standard for water, glycol, and neutral additives up to approximately 120 °C. FKM (Viton) offers higher temperature and chemical resistance, suitable for heat-resistant oils and aggressive additives. PTFE inserts increase abrasion resistance and minimize friction losses during frequent coupling cycles. Sizing is based on maximum system pressure: typical temperature control couplings cover 10–25 bar; for high-pressure temperature control, specialized high-pressure couplings up to 40 bar are used. Operating pressure, medium temperature, and thermal expansion must be considered before selection.

Hydraulic and Flow Characteristics

Efficient mold cooling requires the lowest possible pressure loss. The flow-optimized internal contour of the couplings reduces flow resistance and cavitation. Flow characteristics (Q) are system-dependent; typical nominal diameters ND6 to ND16 offer flow rates from a few liters per minute to over 50 l/min. In multi-channel tools, uniform distribution is more important than the maximum flow of a single coupling. Connection cross-section, dead volume, and transitions must be optimized for short heating and cooling times.

Assembly, Maintenance, and Upkeep

Easily accessible screw connections and replaceable sealing inserts reduce downtime. Before assembly, sealing surfaces must be cleaned of residues; tightening torques for connection threads follow manufacturer specifications to avoid overstretching the seals. Regular inspection intervals include visual inspection, leak testing at operating pressure, and replacement of seals after defined cycles or visible wear. For nickel-plated surfaces, a passivating cleaning without chloride-containing agents is recommended. Spare part availability (nipples, coupling bodies, springs, O-rings) is crucial for production reliability.

Safety and Leakage Management

Shut-off couplings minimize medium loss during disconnection. The Safe-Lock design prevents unintentional release. Nevertheless, additional measures are useful: collection devices, pressure-tested isolation valves, and sensors for leakage detection. In multi-shift operations, disconnection procedures should only occur when the system pressure is relieved. Seals must be chosen so that no dangerous emissions occur in case of failure. Documented test protocols increase traceability and meet internal audit requirements.

Connection Selection: Thread and Hose Connection

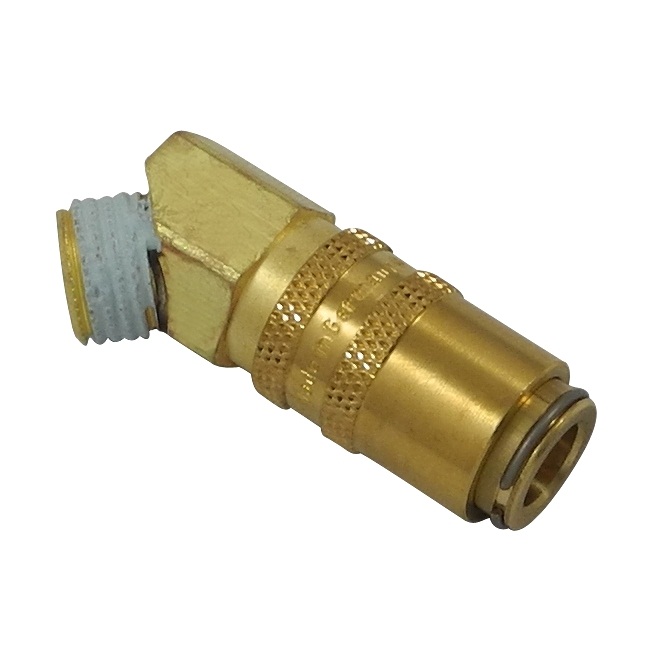

The choice between external thread, internal thread, and hose connection depends on the installation location and the modifiability of the line. External threads are suitable for quick field assembly and standard fittings; internal threads allow for flush installation in tool plates and reduce external dimensions. Hose connections are flexible for retrofits or modular tool systems; hose clamps or crimp connections secure the fit. Thread tolerances and sealing concepts (flat seal, cone, PTFE tape) must be designed according to standards and manufacturer specifications.

Practical Examples: Specific Installation Scenarios and Recommendations

Example 1 – Installation in a Multi-Cavity Injection Mold: In a temperature-controlled multi-cavity mold, ND8 temperature control couplings with a nickel-plated brass surface are used per cavity. The couplings are shut-off and feature Safe-Lock. Before assembly, cooling channels are cleaned, and the nipples are tightened to the manufacturer's specified torque. Due to the flow-optimized internal diameters, pressure loss is reduced by approx. 20% compared to standard couplings, which shortens the cycle time by several seconds. Maintenance interval: O-ring replacement every 6 months with daily production; a set of replacement seals is kept in the tool folder. Example 2 – Retrofit of an Old Design with Hose Connections: When retrofitting an old tool plate, screw-on hose connections with internal threads and EPDM seals are installed. Flexible hoses with stainless steel sheathing connect the temperature control unit and the mold. The Safe-Lock couplings facilitate daily disconnection during tool changes. Before the first use, the system is flushed with a glycol-water mixture and pressure-tested; flow rates are calibrated so that the temperature difference Delta T ≤ 5 K is maintained. Example 3 – High-Temperature Application with FKM Seals: For temperature control systems operating with hot thermal oil, stainless steel couplings with FKM seals are recommended. The connection threads are designed as NPT to minimize leaks. The coupling bodies have reduced dead volumes to ensure uniform heating. During downtime, the medium is drained to prevent damage to the seals from static heat exposure.

Selection Criteria: Quick Decision, Appropriate Order

* Medium and temperature range, operating pressure, connection type, nominal diameter, and sealing material determine the suitable coupling; Safe-Lock is mandatory for vibration or tool changes.

Compatibility, Standards, and Documentation

Temperature control couplings should be manufactured according to relevant industry standards and have material certificates. For systems in the food or medical sector, special materials and seals are required. Technical data sheets, test certificates, and availability information for spare parts must be checked before purchase. Further technical resources and application examples can be found on our technology page: https://maku-industrie.de/technik and in the collection of practical cases: https://maku-industrie.de/anwendungsbeispiele.

Scope of Delivery, Spare Parts, and Ordering

When ordering, please note that coupling bodies, nipples, spring mechanisms, and sealing sets are supplied as standard. Check for variants with protective caps, vent holes, or integrated ball retention. When ordering, please provide the following data: medium and operating parameters, desired connection type, nominal diameter, preferred sealing material, and whether Safe-Lock is required. Available finish options (nickel-plated, plain, stainless steel) influence service life and suitability for specific media.

FAQ

1. Which seal is the best choice for water-glycol temperature control systems?

For water-glycol mixtures, EPDM is usually the first choice due to good compatibility and temperature resistance up to approximately 120 °C. For higher temperatures or more aggressive additives, FKM is recommended. PTFE inserts can additionally reduce abrasion.

2. When is a Safe-Lock coupling absolutely necessary?

Safe-Lock is necessary when frequent disconnection during ongoing production, strong vibrations, or safety requirements exist. It prevents unintentional release and reduces the risk of medium loss and personal injury.

3. How often should sealing elements be replaced in continuous operation?

A replacement interval for O-rings and seals every 6–12 months is recommended for 24/7 operation; a shorter interval is advisable for elevated temperatures, aggressive media, or visible wear. Documented test protocols help minimize downtime.
