Spring Balancers and Balancers: Precision Weight Compensation Systems for Industrial Applications

**Spring balancers** and **balancers** are mechanical weight compensators that position suspended tools, hoses, or components at a defined working height and stabilize them during movement. They reduce muscle fatigue, increase repeatability, and minimize workplace congestion caused by hanging media. Typical applications include assembly lines, manual workstations in manufacturing, welding stations, and testing stations. On this page, you will find product and application-related information to facilitate the selection of durable, safe, and economical solutions.

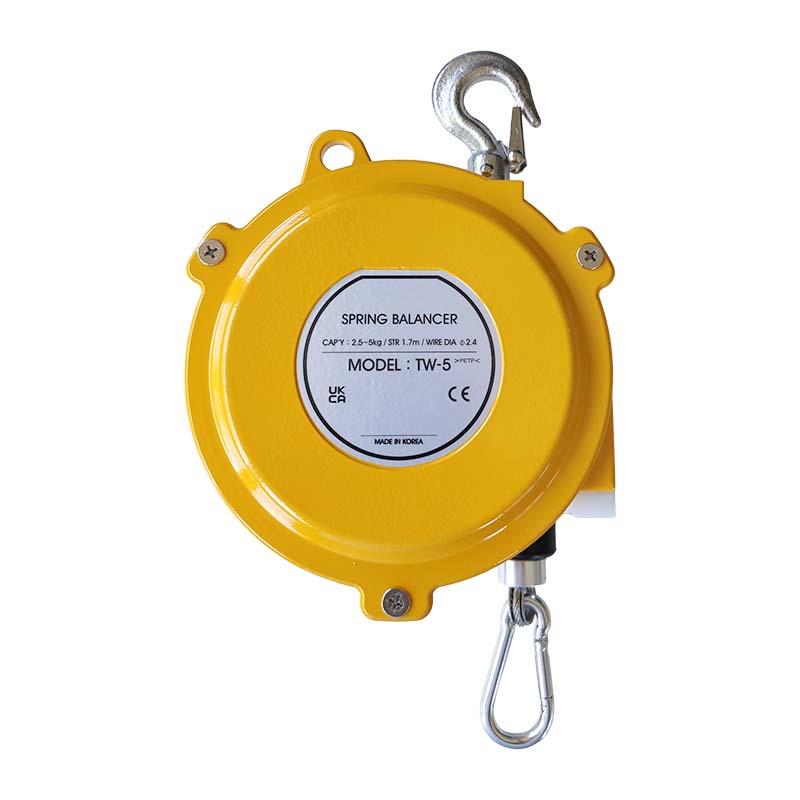

Construction and Designs

Spring balancers are based on a helical tension spring or an integrated spring package guided within a housing. Balancers often operate with a drum or cable pull mechanism, combined with a precisely pre-tensioned spring. Housing designs range from compact, flat models for limited installation space to robust industrial designs with maintenance openings and replaceable spring packages. Important constructive features include end stop dampers for end position damping, stepless stroke adjustment, and swivel mounting eyes for flexible installation positions. Variants with plate or snap hooks allow for quick tool changes.

Materials and Surfaces

For industrial use, material selection and surface treatment are crucial for service life and operational safety. Housings are usually made of pressed steel, aluminum, or glass-fiber reinforced plastic (GFRP). Steel housings offer high mechanical strength and are suitable for harsh environments; aluminum reduces weight and heat retention during high cycle counts. The spring itself is typically made of oil-hardened spring steel (e.g., 60Si7 or DIN EN 10270). Corrosion protection is achieved through galvanization, powder coating, or chemical passivation; for humid or chemically aggressive environments, stainless steel housings and stainless steel springs (e.g., 1.4310/1.4401) are available. For ESD-sensitive workplaces, conductive coatings are used.

Connections, Mounting, and Integration

The correct selection of connections determines the integrability into existing assembly lines. Spring balancers and balancers usually offer the following mounting options: threaded bolts M6–M16, eyelets with bolt fastening, flange plates, and quick couplings. Mounting brackets and swivel suspensions allow adaptation to ceiling profiles, traverses, or gantry frames. For connecting to the tool, swivel hooks with ball bearings, snap hooks, or swivel quick-release couplings are common. For media-carrying applications, combined versions with integrated cable guides are available for the safe protection of air hoses, cables, and welding cables.

Seals, Maintenance, and Operational Safety

Sealing systems are relevant for spring balancers and balancers if the device is used in dusty, humid, or splash-prone environments, or if integrated cable entries are present. Common sealing materials include NBR (nitrile), EPDM, and fluororubber (Viton) for increased chemical resistance. Housing penetrations use rotation-resistant shaft seals or dynamic lip seals. Maintenance-friendly designs feature service-friendly lubrication holes, replaceable spring packages, and screwed covers that allow quick inspection of the spring housing. Safety-relevant components such as end stops and retraction modules should be checked at regular intervals according to DIN EN ISO 12100. Secure spring balancers against unintentional detachment with additional safety wires or form-fitting hooks, especially when working overhead.

Performance Spectrum: Stroke, Load Range, and Precision

Spring balancers and balancers are available in very different performance classes. Typical stroke heights range from 0.5 to 3.5 meters, with standard modules covering 0.8–1.8 meters. Load ranges start at a few hundred grams for small hand tools and extend up to several dozen kilograms for tools or measuring devices in manufacturing. Precise balancers with a fine spring characteristic achieve a nearly constant holding position over a defined stroke, so the tool remains fixed in any position without needing to be pressed down. For dynamic applications, variants with variable tension adjustment and quick locking are available to change weight classes during operation.

Practical Application Examples

**Assembly workstation with screwdriver:** A balancer with a 1.2 m stroke and 1.5–3.5 kg load capacity is mounted via a ceiling guide. The hand screwdriver is guided via a swivel hook eye. The balancer keeps the screwdriver at working height, reducing operating force, increasing repeatability, and cycle time. The cable guide in the balancer protects the connection cable from kinks. **Welding station with long welding cable:** A spring balancer with a stainless steel housing and EPDM seals guides the welding cable. The spring balancer has an integrated drum with a 2.5 m stroke and tension force adjustment, allowing the welding device to be guided in a floating manner and keeping spark deposits away from sensitive components. **Testing station for sensors:** Light measuring devices (0.3–1.0 kg) are suspended from compact spring balancers that feature a precision spring. The mechanism allows exact positioning with minimal post-movement, ensuring consistent measurement cycles and reducing errors. Further specific examples and visualizations can be found under [Application Examples](https://maku-industrie.de/anwendungsbeispiele). Technical standards and design aids are available on our technical page: [Technology](https://maku-industrie.de/technik).

Specification Check Before Purchase

Choose a weight compensation system according to the following relevant criteria: * Load range vs. actual tool weight: Avoid overdimensioning, rule out underdimensioning. * Installation dimensions and stroke requirement: available installation length, movement radii, and maximum stroke height. * Environmental conditions: humidity, temperature, chemical contact, and ESD requirements. * Connection and interface: compatible hooks, mounting threads, and cable entries. * Maintainability and spare parts: easy spring package changes, standard springs, and seal kits.

Integration into Production Processes

Spring balancers and balancers integrate into production lines as ergonomic aids that improve process stability and minimize downtime. By reducing fatigue errors, they lower scrap rates. When planning lines, static loads, dynamic forces during acceleration, and possible resonance frequencies must be considered. For automated stations, balancers with defined retraction force and optional braking are available, enabling positioning accuracies without stressing PLC-controlled axes. Avoid overload due to impact forces when setting down components; in such cases, damped end stops or additional spring stages are recommended.

Standards, Safety, and Inspection Intervals

Spring balancers and balancers should be installed and operated according to applicable standards. Relevant standards include safety-related regulations for the Machinery Directive and ergonomic requirements. Regularly check operating and wear parts; visual inspections are recommended every shift, and functional tests every 3–6 months in 3-shift operation. Inspection documentation and near-series spare parts lists improve failure management.

Practical Examples — Structured Application Scenarios

**Scenario A — Assembly of door hinges:** Two balancers per workstation carry screwdrivers and torque tools. Balancers with 1.5 m stroke and 2–6 kg capacity prevent hoses from hanging into the assembly area. Result: shorter cycle time and constant tightening values. **Scenario B — Small parts feeding in electronics assembly:** Light spring balancers with short retraction distances hold pick-and-place grippers in the target position; damping minimizes vibrations during placement. **Scenario C — Cleaning and surface treatment:** Stainless steel version with Viton seals and additional protective caps protects balancers from cleaning chemicals and splashing water.

Ordering Information

Order by specifying maximum payload, desired stroke height, mounting type, and environmental requirements. Standard deliveries include hooks and basic mounting; special versions with integrated cable solutions or special coatings are available upon request. Use our technical page for detailed drawings and tolerances: [https://maku-industrie.de/technik](https://maku-industrie.de/technik).

FAQs

What is the maximum load a spring balancer can carry?

The permissible load depends on the type and the spring characteristic. Standard modules cover ranges from a few 100 g to approx. 30 kg. Choose the model so that the workpiece is in the middle range of the spring force to ensure optimal holding force and service life.

How often do spring balancers need to be maintained?

Visual inspections should be carried out daily or per shift. Functional tests should be performed every 3–6 months, depending on operating intensity. Lubricate lubrication points as needed according to manufacturer's instructions; check seals and securing elements annually and replace worn spring packages.

Can I use balancers in areas with chemicals or high humidity?

Yes, if you choose models with corrosion-resistant materials (stainless steel), suitable seals (Viton, EPDM), and additional protective covers. Check the chemical resistance of the seals to the media used and request material certificates if necessary.
