Accessories for Mannesmann Demag grinding spindles with pneumatic or electric drive

Accessories for Grinding Spindles – Precision, Assembly, and Operational Reliability

Accessories for grinding spindles significantly determine the performance of grinding machines and process stability in series production. This chapter describes functional components, material properties, designs, connection variants, and maintenance requirements. The goal is quick, precise selection and secure integration into existing machine concepts.

Functional Categories and Typical Components

Accessories include bearing housings, sealing systems, coolant connections, collets, taper adapters, fan covers, vibration dampers, drive shafts, and shaft-guiding seals. Bearing housings are usually made of heat-treated cast iron or aluminum; cast iron housings offer high vibration damping, while aluminum reduces mass and heat absorption. Sealing systems range from simple radial shaft seals to combined labyrinth/O-ring solutions with integrated lubrication chambers. For high-speed spindles, gas-dynamic or hydrodynamic seals are used to control airflow and minimize coolant losses. The choice of clamping tools influences concentricity and changeover times. Precision collets made of spring-hard tool steel provide low runout deviations; interchangeable taper cones made of hardened steel enable quick workpiece changes. Taper adapters (e.g., SK, HSK, ISO) must be matched to the shaft diameter and clamping system of the machine, as geometric deviations are directly transferred to form and position tolerances.

Materials, Surfaces, and Corrosion Protection

Material selection follows load, temperature, and environment. Bearing housings made of cast iron or spheroidal graphite cast iron absorb vibrations better but are heavier and more susceptible to corrosion. Aluminum alloys with anodic coating offer lightweight construction and additional corrosion protection. Shafts and adapters are typically made of tempered or hardened tool steel (1.2312, 42CrMo4); in corrosive environments, stainless Cr-Ni steels (1.4301/1.4404) are used. Surface coatings such as DLC, PVD, or nitriding increase wear resistance and reduce friction in contact zones.

Connections, Seals, and Cooling Systems

Coolant connections and routing are critical for thermal stability and chip removal. Typical connection types include cylindrical quick couplings, hose connections with clamping rings, and integrated spray rings in housings. Seals must be compatible with the coolant used; NBR is suitable for mineral oil-based lubricants, FKM/FFKM for aggressive synthetic media. For water-based coolants, EPDM- or PTFE-compatible sealing systems are recommended. For applications with overpressure or high rotor speeds, double labyrinth seals or gas-lubricated seals are the solution.

Assembly, Balancing, and Installation Practice

Faulty assembly is the main cause of running errors and premature wear. Shafts must be inserted without impact, pressure surfaces thermally decoupled, and fits checked according to DIN/tolerance class. Before installation, the absence of hairline cracks in adapters and clamping tools must be ensured visually or by fluorescence testing. Balancing according to ISO 1940 with the spindle assembled reduces vibration excitation; balancing weights or mass compensation rings should be provided at critical points. Screw connections with definable tightening torques and locking washers prevent loosening under dynamic loads.

Electrical and Pneumatic Interfaces

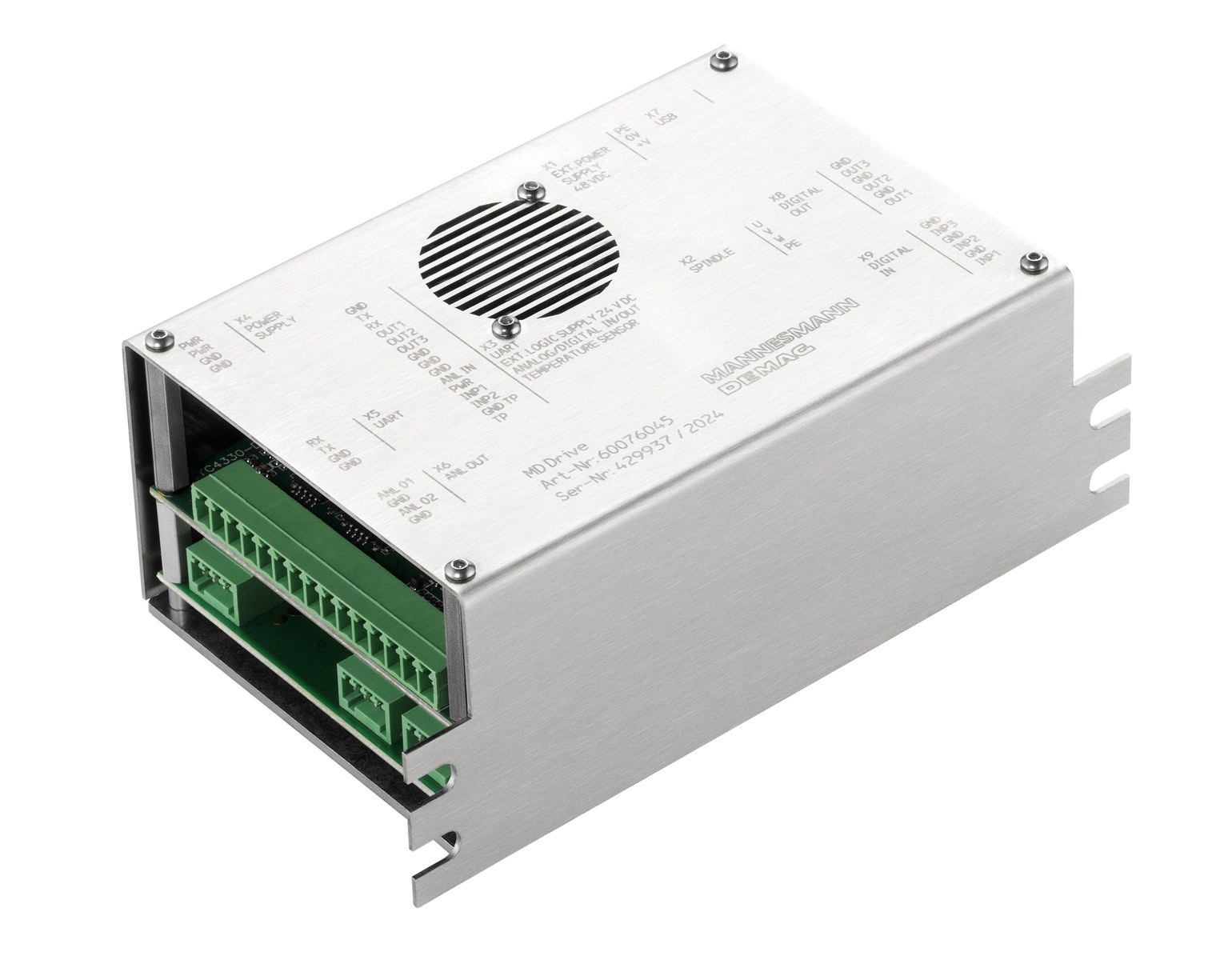

For motorized spindles, plug connections for speed control, temperature monitoring (PT100/NTC), and bearing monitoring (vibration/temperature) are part of the accessories. Connectors must be shielded and vibration-resistant; protection classes according to IP65/IP67 are recommended in wet and dusty areas. Pneumatic connections for workpiece clamping or internal air purging require filter/pressure regulator units and quick-connect solutions with seals compatible with the operating medium.

Maintenance, Service Life, and Wear Parts

Regular oil or grease change intervals, bearing monitoring using vibration analysis and thermography, and observation of runout changes extend service life. Wear parts such as seals, collets, spray nozzles, and filter sponges should be kept as spare parts; a documented change plan reduces downtime. For water-soluble coolants, bacterial deposits increase corrosion risks, so filter and cleaning cycles are crucial. For precision applications, a lifecycle assessment including replacement intervals for bearings and sealing systems is recommended.

Compatibility Check and Documentation

Before ordering, compatibility with the machine connection standard, shaft diameter, tolerances, and application range must be checked. Checkpoints include fit type, runout, maximum speed, permissible radial and axial load, and coolant routing. Technical data sheets, installation drawings, and certificates (material proof, hardness tests, corrosion tests) are part of the delivery and should be stored in the production folder. For complex integrations, test runs at the factory or preliminary sample technology are advisable to avoid unexpected interventions during machine acceptance.

Practical Application Examples

Practical Example 1 – Tool Grinding in Series Production: In a production line for HSS drills, the spindle was equipped with a balanced aluminum housing, gas-dynamic seal, and integrated coolant supply. The coolant supply uses annular spray nozzles in the housing that direct coolant directly to the tool edge. Result: constant cutting edge geometry and reduced rework. Interchangeable collets allow quick tool changes in two-minute cycles; a documented balancing protocol ensures repeatable smooth running. Practical Example 2 – Grinding of Hardened Shafts: For finish grinding of hardened shafts, ceramic bearings and PTFE-coated seals were used to avoid metallic reactions and temperature jumps. The clamping tools are made of hardened tool steel with DLC coating to minimize friction and adhesion. By combining vibration detection and temperature monitoring via PT100, anomalies could be detected early and downtime avoided. Practical Example 3 – Roughing with High Material Removal Rate: In a system for rotors, a robust cast iron bearing block with integrated silencer and external coolant circuit was used. The cooling system is connected and disconnected every second via quick couplings to facilitate maintenance access. Maintenance intervals were optimized based on filtration rates and particle analyses.

Tips for Selection

Consider maximum speed, axial/radial load, desired runout accuracy, and media compatibility. Match the sealing system and material to the coolant and check machine connection standards. For further technical information and comparison tables, visit our technology page: https://maku-industrie.de/technik and specific applications at https://maku-industrie.de/anwendungsbeispiele.

Short Checklist Before Purchase

* Check compatibility with machine interface and tolerances * Adapt material and seal selection to coolant and environment * Plan service and replacement intervals * Ensure balancing and assembly protocols

FAQs

1. Which seal is suitable for water-based coolants? For water-based coolants, EPDM- or PTFE-compatible seals are recommended; NBR can swell and lose sealing properties. For high stress, double labyrinth seals or combined O-ring/labyrinth solutions are useful. 2. How do I ensure correct runout after a spindle change? Perform an initial balancing run according to ISO 1940, check fits and taper adapters for dimensional accuracy, and use precision measuring instruments (probes, runout measuring device). Document the balancing protocol and repeat the measurement after load cycles. 3. Which materials are recommended for collets and adapters for long-term use? Hardened tool steel (e.g., 1.2312, 42CrMo4) with surface hardening or DLC/PVD coating offers high wear resistance. For corrosive environments, stainless steels (1.4301/1.4404) are the better choice; combinations of a hardened core and coated surface combine strength and corrosion protection.
