Order high quality low-priced solenoid valves by Parker online
Solenoid valves are electro-mechanical devices used for interrupting or diverting the flow of fluids by opening or closing one or more orifices.
The solenoid valve is a combination of three basic components:1. An electromagnet consisting of a solenoid (windings) and a magnetic yoke.
2. A pilot with a moveable plunger (which, in some cases directly opens and closes the valve).
3. A valve body with an orifice opened or closed by plunger or diaphragm to enable or prevent flow of the medium.
E121K0402 Solenoid valve without coil
E121K0302 Solenoid valve without coil
121K02 Solenoid valve without coil
121K01 Solenoid valve without coil
E121K04 Solenoid valve without coil
E121K03 Solenoid valve without coil
121K0323 Solenoid valve without coil
E121K65 Solenoid valve without coil
E121K67 Solenoid valve without coil
E121K63 Solenoid valve without coil
121K0706 Solenoid valve without coil
E121K64 Solenoid valve without coil
121K3206 Solenoid valve without coil
121K3106 Solenoid valve without coil
121K3306 Solenoid valve without coil

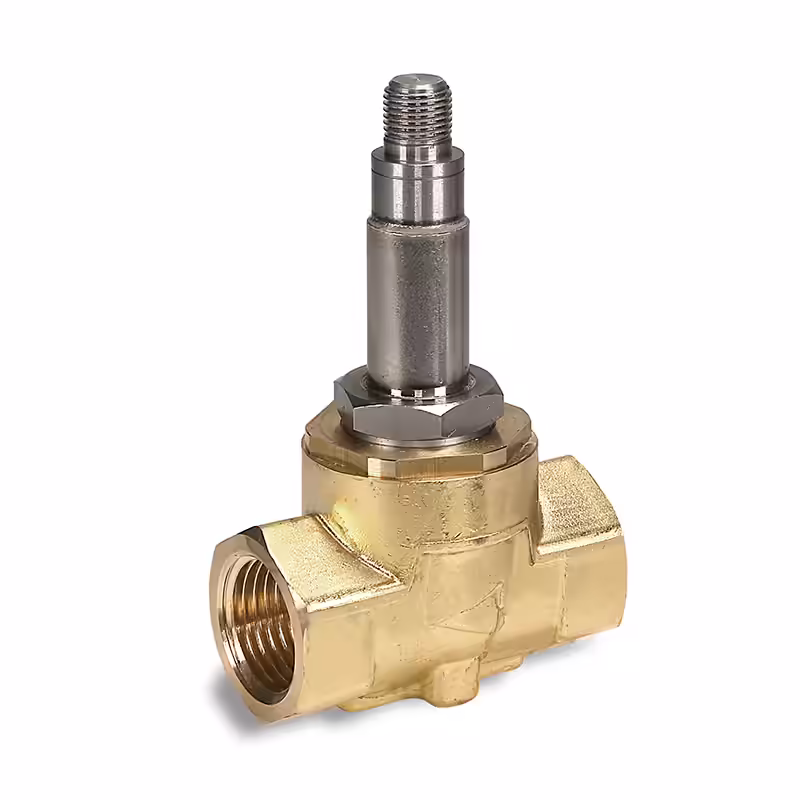

E121K46 Solenoid valve without coil
E121K45 Solenoid valve without coil
E121K0352 Solenoid valve without coil
121K0250 Solenoid valve without coil
122K8306 Solenoid valve without coil
122K83 Solenoid valve without coil
122K84 Solenoid valve without coil
Price on request
122K8406 Solenoid valve without coil
321K4306 Solenoid valve without coil
Technical Selection Criteria for Parker Solenoid Valves
Solenoid valves from Parker support precise functions such as shut-off, filling, dosing, mixing, and air control in industrial automation processes. Crucial for correct selection are the design type (e.g., 2/2-way, 3/2-way), actuation type (direct-acting vs. pilot-operated), materials, sealing material, nominal diameter, flow coefficient (Kv), electrical connection data, and media- or environment-specific operating limits. Parker offers variants for pressureless to high-pressure applications, for aggressive media, and for potentially explosive areas with corresponding approvals. On this category page, you will find model overviews, technical data sheets, and suitable spare parts; complete product details are listed in the shop: https://maku-industrie.de/shop/de/parker/magnetventile/.
Designs and Functional Principle
Direct-acting solenoid valves open or close the sealing surface solely by the electromagnetic force of the coil and are ideal for small flow rates and very short switching times. Pilot-operated valves use the system pressure difference to actuate the main seal; they are energy-efficient for high nominal diameters and differential pressure-dependent applications. Typical designs for industrial controls are 2/2-way (on/off), 3/2-way (incl. venting/flow reversal), and multi-way valves for complex switching tasks. Parker designs these variants as inline, angle, or manifold valve blocks with optimized flow guidance and low dead volumes.
Materials, Seals, and Media Compatibility
For corrosion resistance, both brass (CuZn) and stainless steel (1.4404 / 316L) are used; plastic housings made of PPS or PEEK are applied in media- and temperature-critical processes. Sealing materials are indicative: NBR for oils and air, EPDM for water and steam, FKM (Viton) for aggressive chemicals and higher temperatures, and PTFE-coated materials for abrasive or polymerizing media. Information on media compatibility and maximum viscosity is noted in the technical data sheets; in case of doubt, a comparison with the manufacturer's material data sheets is recommended.
Connection Dimensions, Flow Coefficients, and Electrical Data
Port and thread standards range from M5 and G1/8 to G1/4 and G1/2; NPT or BSP variants are available. For design, the Kv or Cv value is crucial; it determines the volumetric flow rate at a defined pressure difference. Electrical parameters include nominal voltage (DC 12/24 V, AC 24/110/230 V), power consumption (coil force), protection class (IP65 to IP69K), as well as switching frequency and duty cycle. For controls with low power consumption, coils with reduced quiescent current or holding current are useful; for high switching frequencies, the thermal load capacity of the coil and the service life of the armature must be considered.
Temperature and Pressure Limits, Service Life
Parker solenoid valves typically cover temperature ranges from approximately -40 °C to +120 °C; special high-temperature variants go beyond this. Operating pressures vary depending on the design from vacuum to several hundred bar. The service life depends on switching cycles, particle load, and hydrodynamic stress; typical industrial values are in the range of millions of switching cycles with clean media and suitable filtration. To prevent cavitation and premature wear, surge damping and appropriate venting are necessary.
Practical Use: Application Examples and Design
1. Dosing system for liquid additives: A direct-acting 2/2-way Parker solenoid valve in stainless steel with FKM seal and G1/4 connection controls the precise on/off switching of additives under 10 bar. Selection is based on the required flow rate and Kv, the coil voltage is matched to the existing control system (24 V DC). An intermediate filter (100 µm) protects the seal and extends its service life. Installation note: Valve perpendicular to gravity with pressure direction in the flow direction of the characteristic curve.
2. Pneumatic circuit in assembly systems: For air controls in packaging and conveying technology, Parker 3/2-way poppet valves with M5 or G1/8 connections, short switching times (<10 ms), and IP65 protection are suitable. To reduce contamination, an integrated separator (strainer) and a pressure regulator with an integrated maintenance filter are recommended. Typical setting: 6 bar operating pressure, switching frequency < 5 Hz for standard valves; higher frequency applications require valves with specified high-frequency characteristics.
3. Filling station for chemicals: Pilot-operated Parker valves with stainless steel housing and PTFE seals offer safe shut-off at high pressures and corrosive media. Pilot operation reduces the electrical power of the main coil and allows for larger flow cross-sections. Implementation steps: Determine maximum viscosity, design pilot orifices, secure against pressure surges using hydraulic dampers, regular maintenance intervals depending on particle load.
Specific Selection Checklist
The following points should be checked before ordering:
- Media type and chemical compatibility (sealing material and housing material), required Kv/Cv, nominal pressure and temperature range, connection thread, electrical data (coil voltage, power consumption), design type (2/2 direct/pilot, 3/2), protection class (IP), service life/switching cycles, and possibly approvals (e.g., ATEX, CE)
Installation, Maintenance, and Assembly Instructions
Before assembly, the product information sheet and the hydraulic/pneumatic diagram must be checked. Electrical connections must be marked according to manufacturer specifications and protected against moisture and overload. Filters upstream of the valve (ideally 25–100 µm, depending on the medium) significantly reduce wear. For high switching frequencies, temperature-resistant coils and active cooling must be considered. Seal replacement should be carried out preventively at defined intervals; if cracks, deformations, or leaks are observed, replacement is recommended. For critical media and pressurized systems, shut-off devices and pressure relief are mandatory before maintenance procedures.
Documentation, Standards, and Certificates
Parker solenoid valves are designed according to relevant industry standards; technical data sheets contain information on pressure and temperature ranges, flow coefficients, electrical data, and materials. For specific industries (food, pharma, oil & gas), additional certificates exist. For norm-compliant documentation or conformity proofs, we refer to the product pages in the shop and to the technical resources at https://maku-industrie.de/technik and to practice-oriented case studies at https://maku-industrie.de/anwendungsbeispiele.
Procurement and Spare Parts
Obtain solenoid valves through authorized distribution channels to ensure original spare parts and valid warranty services. Spare parts include coils with specific voltages, seal kits, armature cores, and mounting kits. For long-term availability, it is recommended to specify the Parker part number and the manufacturing period when ordering. Detailed product variants can be found in the online shop: https://maku-industrie.de/shop/de/parker/magnetventile/.
Practical Example: Step-by-Step Integration of a 2/2-Way Solenoid Valve Solution
Project: Automated filling of a small container production line. Step 1: Determine the maximum filling quantity per cycle and determine the required Kv value. Step 2: Select a direct-acting 2/2-way valve from Parker in stainless steel with FKM seals and G1/4 connection for corrosive, viscous additives. Step 3: Integrate a 24 V DC coil with protection class IP65 into the control system, configure on/off time profiles, and monitor using limit switches. Step 4: Install an inline filter (50 µm) and pressure limiter to prevent pressure surges. Step 5: Commissioning with leak test, documentation of switching cycles, and definition of maintenance intervals based on the expected switching frequency.
FAQs
1. What are the differences between direct-acting and pilot-operated solenoid valves?
Direct-acting solenoid valves are actuated solely by the coil and are suitable for low flows and small pressure differences. Pilot-operated valves use system pressure to actuate large switching cross-sections and are energy-efficient at higher nominal diameters and pressures.
2. Which seal should I choose for chemical media?
Choose sealing materials according to media compatibility: EPDM for water/steam, FKM for aggressive chemicals and higher temperatures, NBR for oils and non-aggressive media. PTFE-coated seals are suitable for abrasive or polymerizing liquids.
3. How do I determine the appropriate Kv value?
The Kv value results from the desired volumetric flow rate at a defined pressure difference (1 bar). Calculate the maximum flow rate of the application and refer to the Kv values in the data sheet. If in doubt, choose a variant with a slightly higher Kv and perform a practical flow test.
