**Hydraulic plugs** connect pressure-side lines, consumers, and aggregates in hydraulic systems and determine functional reliability, leak-tightness, and maintenance effort. For industrial applications, precision in threads and seating surfaces, material selection, sealing technology, and the appropriate design are crucial. This text explains the construction, materials, connections, seals, installation situations, and typical applications, as well as selection criteria for safely ordering hydraulic plugs.

Construction and Designs

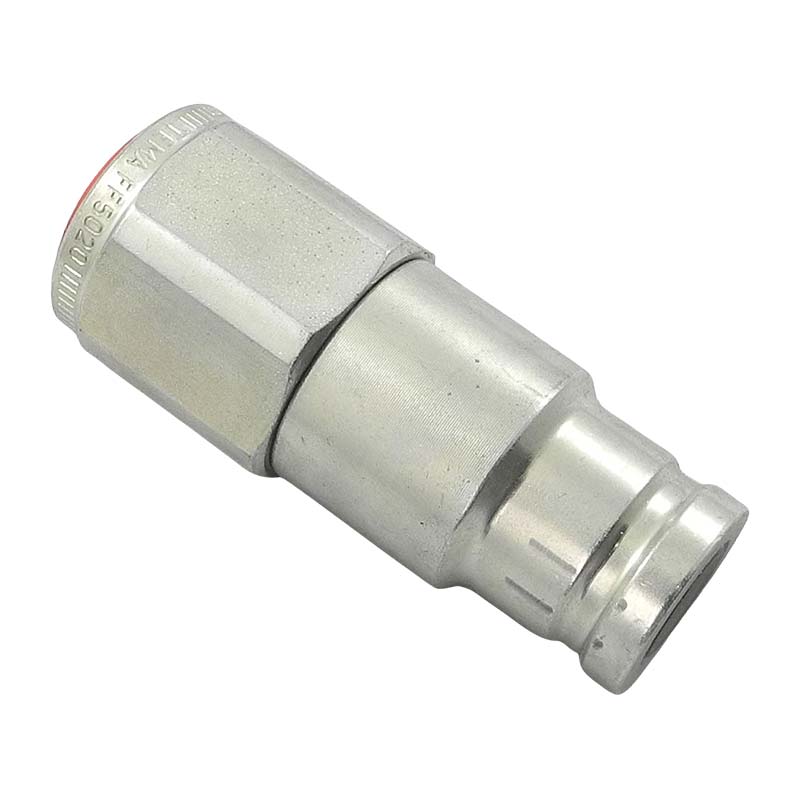

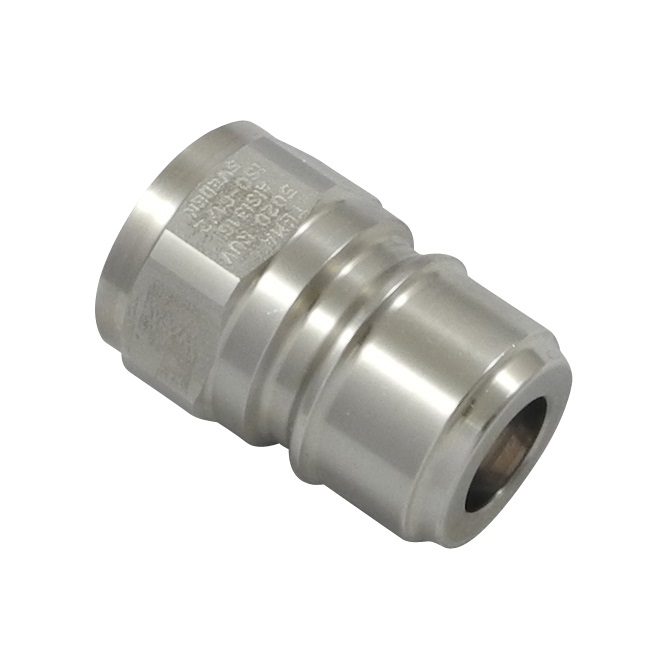

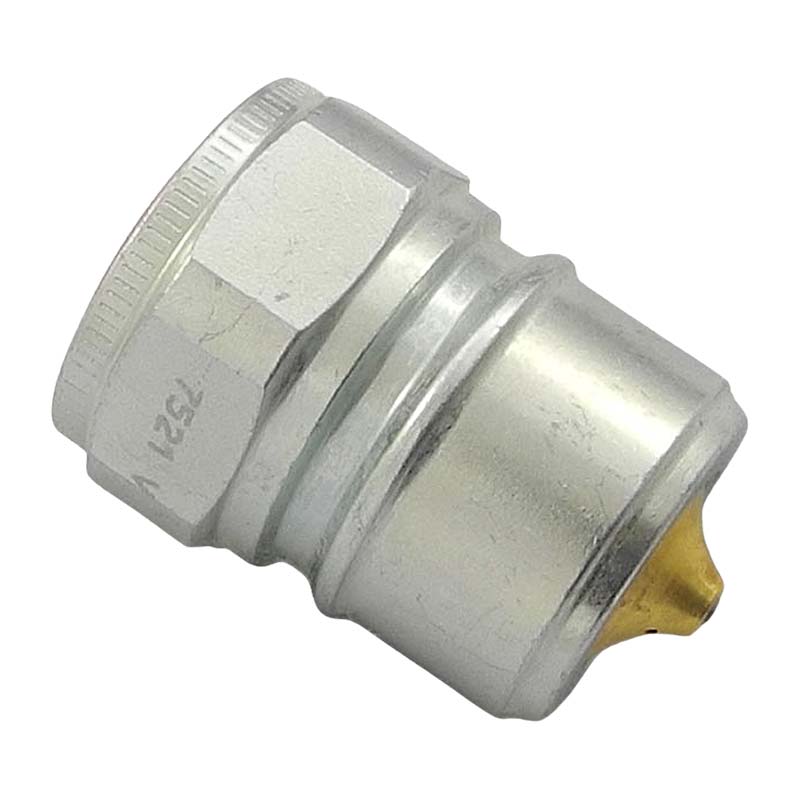

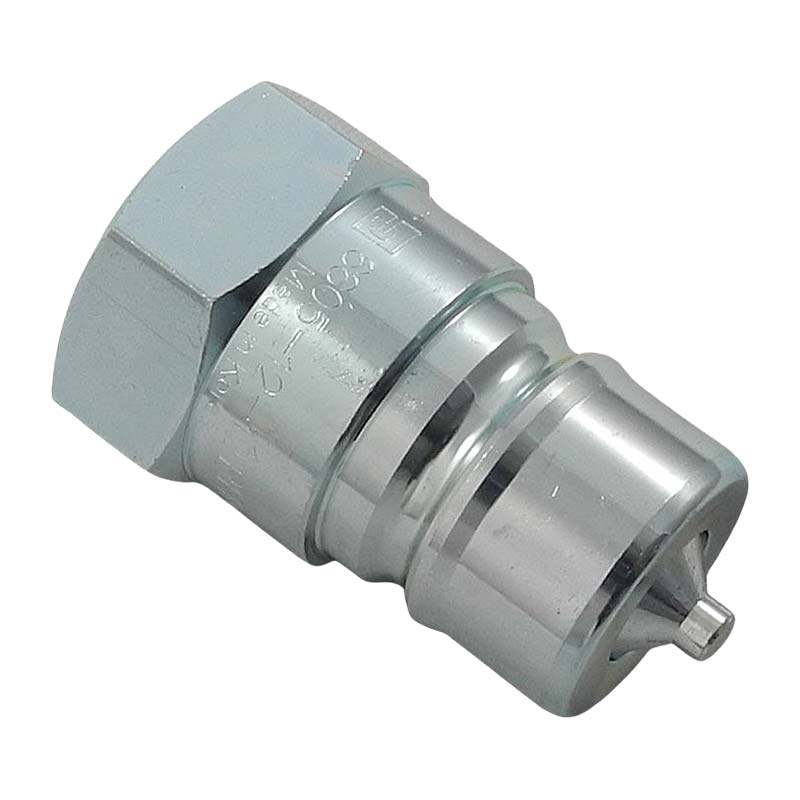

Hydraulic plugs are available in several designs: straight, angled, with internal or external threads, as mounting or quick-release coupling variants. The geometric tolerances on conical and seating surfaces are standardized and influence sealing behavior and repeatability. Standard connections such as BSPP (G), BSPT (R), Metric (M), and NPT are frequently used. Special solutions combine screw connections and integrated seals to save space or reduce assembly times. Quick-release couplings are differentiated by connection with a breakaway mechanism, pressure-loaded disconnection, and 2- or 3-line solutions.

Materials and Surfaces

The choice of material influences corrosion protection, pressure resistance, and wear behavior. Common materials include steel (St 37/1.0038, 1.7225), tempered and hardened steel, stainless steel (AISI 304/316), brass, and aluminum alloys. Steel plugs are economical and pressure-stable, usually requiring galvanic surface treatment (e.g., zinc-nickel, galvanized) for corrosion protection. Stainless steel offers long-term corrosion resistance and is suitable for food, chemical, and offshore applications. Brass is used for moderate pressures and good machinability. Aluminum is only for low pressures and weight-critical applications. * Typical material options: Steel (tempered), stainless steel (1.4301/1.4404), brass, aluminum Surface treatments influence the sealing pattern and friction. Galvanic coatings and passivations increase corrosion resistance and assembly compatibility. Threaded parts require sharp edge clearances for sealing function with tolerance fits.

Sealing Technologies and Materials

Seals are critical components for leak-tightness and continuous operation. O-rings, flat gaskets, spring washers, and metal cone seals are used depending on pressure, temperature, and fluid. Elastomers such as NBR (nitrile), FKM (Viton), HNBR, and EPDM cover various resistances to hydraulic oils, heat, and ambient media. NBR is standard for mineral oils up to approximately 100 °C, HNBR extends temperature and ozone resistance, FKM offers resistance up to 200 °C and against aggressive media. EPDM is not suitable for mineral oils but is used in water/glycol systems. For high-pressure and high-temperature applications, metal-to-metal seals, combined metal-elastomer seals, or annular backup rings are common. For repeated mating cycles and quick-release couplings, compromises between tightness and service life are crucial: softer elastomers seal better, harder materials resist abrasion.

Connections, Standards, and Compatibility

Hydraulic plugs must be compatible with pipes, hoses, and fittings. For screw connections, thread type, sealing concept (conical seal vs. flat seal), and tightening torque are relevant. Standards such as ISO 8434, DIN EN 13784, DIN 2353, and ISO 6162 regulate dimensions and strength requirements. For system planners, adherence to these standards is the basis for ensuring interchangeability, certifiability, and spare parts supply. When switching from BSP to Metric, thread adapters and sealing concepts must be considered.

Hydraulic Plugs in Practice: Installation Examples

**Practical Example 1 – Cylinder Connection in a Press System:** In a hydraulic press, the cylinder is connected to the piping via a straight steel plug with a conical seat (BSPP). Selection criteria: pressure load up to 350 bar, temperature range -10 to +80 °C, fluid: mineral oil-based hydraulic oil. A tempered steel plug with zinc-nickel coating and NBR O-ring is used. Installation note: tightening torque according to standard, avoid threadlocker on thread flanks, leak detection after initial commissioning. **Practical Example 2 – Quick Coupling on Mobile Control Units:** For mobile hydraulic units, quick couplings with valve technology are required to disconnect the system without pressure. Application: agricultural machinery hydraulics, interchangeable tools. Connectors with pressure-tight disconnection, durable FKM seals, and stainless steel bodies for corrosion resistance are installed. The couplings are chosen so that they do not vent when disconnected and do not allow foreign particles into the system. Regular flushing and protective caps reduce the risk of contamination. **Practical Example 3 – Offshore Application in a Corrosive Environment:** In offshore installations, stainless steel plugs (1.4404) with special seals are required. Selection is based on corrosion resistance, water resistance of the fluid, and certifiability. Additional measures: cathodic protection, special assembly materials, and regular inspection intervals.

Selection Criteria for Online Purchase

When ordering from the shop, the following parameters are central: connection thread and form, nominal pressure, medium compatibility, temperature range, mating cycles (for quick couplings), material and surface treatment, and required standards. Technical data sheets, drawings, and material certificates should be available. Pay attention to clear specifications for tightening torques, tolerances, and recommended seals. For system-critical components, it is advisable to request technical drawings and coordinate with maintenance before ordering.

Assembly, Testing, and Maintenance

Assembly errors are common causes of failure and leaks: incorrect seal selection, over- or under-tightening of threads, lack of cleanliness, and insufficient testing after assembly. Workshop practice: clean components before assembly, remove sharp burrs, check sealing surfaces for damage, adhere to tightening torque and sequence according to specifications. After commissioning, check connections for leaks under load and after thermal cycles. Document assembly status and part numbers for spare parts management.

Compatibility Check and Adaptation

Before ordering, check dimensions against existing components, especially conical sealing surfaces (e.g., 24°/37° cone) and thread pitches. For retrofit projects, adapter solutions are often the most economical option, but their pressure and sealing behavior must be checked. For questions about compatibility, use technical support documents or contact the manufacturers. More technical background information and application examples can be found on our technology page: [maku-industrie.de/technik](https://maku-industrie.de/technik) and under [maku-industrie.de/anwendungsbeispiele](https://maku-industrie.de/anwendungsbeispiele).

Safety and Environmental Aspects

Pressurized hydraulic connections pose a hazard potential due to leaks and uncontrolled loosening. Work under pressure must be avoided; relieve and secure the system before loosening. In case of oil-containing leaks, anti-slip measures and environmental protection regulations (containment measures, disposal) must be observed. Choose sealing materials and coatings that offer the lowest possible environmental and health risks. For explosion-hazardous areas, specific approvals and materials are necessary.

Product Data and Procurement Tips

Use product data sheets to compare nominal pressure, flow rate, leakage rate, and thread design. For critical applications, ensure that test certificates (e.g., material certificate EN 10204) and pressure test protocols are available. Standard components are available at short notice, special designs require specification of dimensions, material, surfaces, and seal types. For efficient maintenance, it is advisable to keep frequently needed plugs in tested sets.

Further Information

In-depth technical explanations on the selection of seals, standard tables, and assembly instructions can be found on our technology page: [https://maku-industrie.de/technik](https://maku-industrie.de/technik). Practical user reports and project examples are available at [https://maku-industrie.de/anwendungsbeispiele](https://maku-industrie.de/anwendungsbeispiele).

FAQs

**1. Which seal is suitable for hydraulic plugs with mineral oil up to 120 °C?** For mineral oil-based hydraulic fluids up to approximately 120 °C, HNBR is the reliable choice; NBR is economical up to ≈100 °C, FKM for higher temperatures and aggressive media. **2. How do I know if a plug is pressure-stable for my system?** Compare the nominal pressure of the plug with the maximum system pressure plus a safety factor, check standard specifications (e.g., ISO/DIN) and material strength; if in doubt, request material and test certificates. **3. When is a quick coupling preferable to a normal screw connection?** Quick couplings are preferable when tools or aggregates are frequently changed, quick disconnection without pressure relief is required, or contamination-free separation is necessary. In doing so, check service life specifications in mating cycles and seal types.
