Quick Couplings for Water: Precise Connection Technology for Fluid-Carrying Systems

Quick couplings for water are indispensable connection elements in industrial environments when it comes to the secure, leak-proof, and rapid connection of hose or pipe lines in water circuits. Essentially, these couplings enable reliable connection and disconnection of lines without tools, without media loss, and without significant pressure drop. For use in water-carrying systems, the selection of the correct design, materials, and seals is crucial to permanently withstand both mechanical stresses and chemical influences from water additives. The application range of quick couplings in water includes, for example, cooling circuits in mechanical engineering and electronics, pump connections in water and wastewater technology, and internal water cooling on sensitive devices, such as in high-performance PCs. Typical applications require that upon disconnection, no or only a minimal film of medium escapes to avoid contamination and water loss.

Materials and Designs for Optimal Water Contact

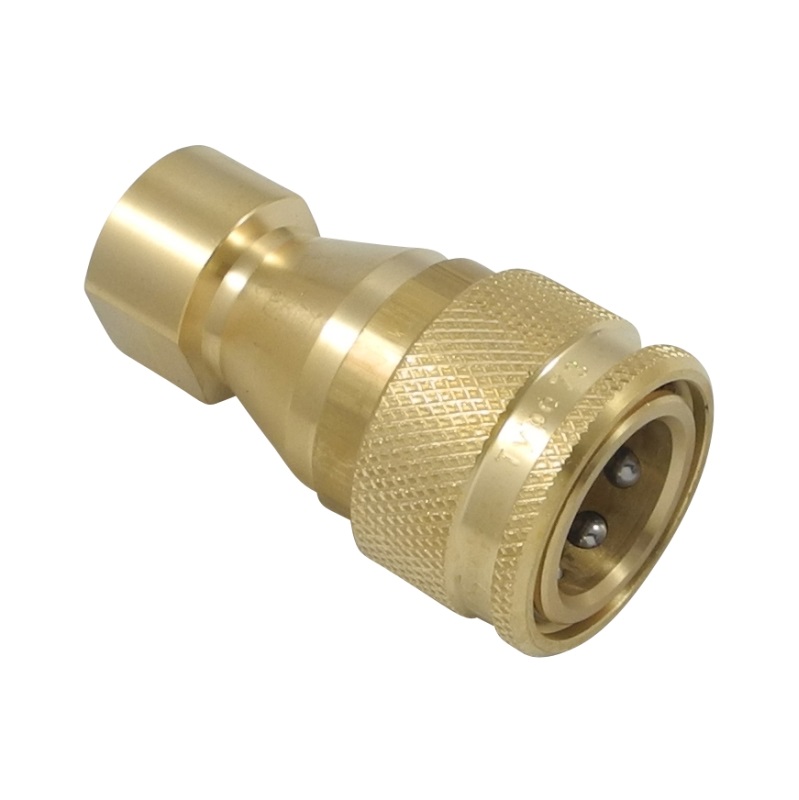

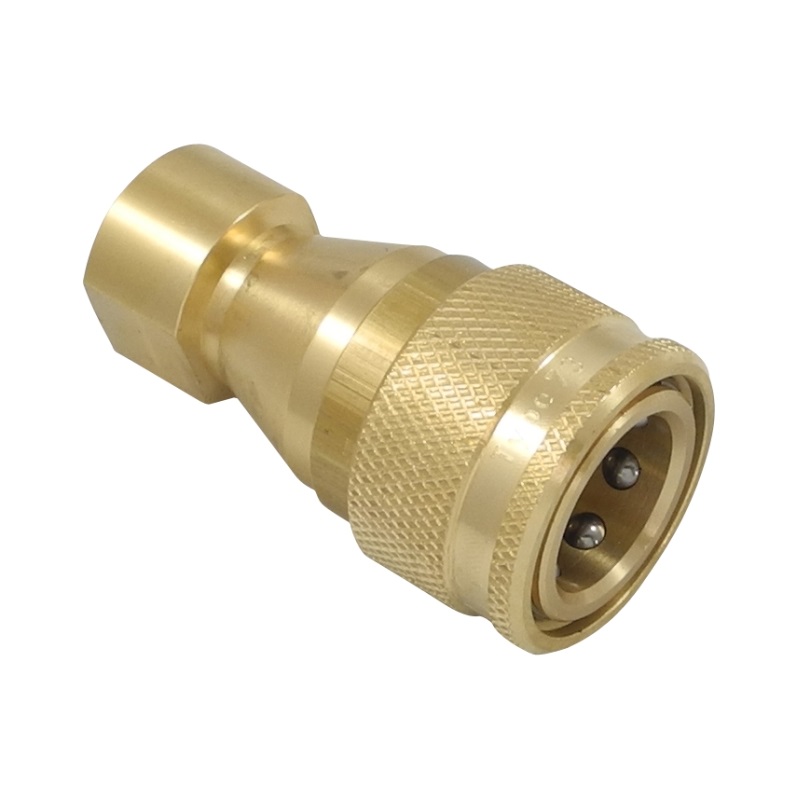

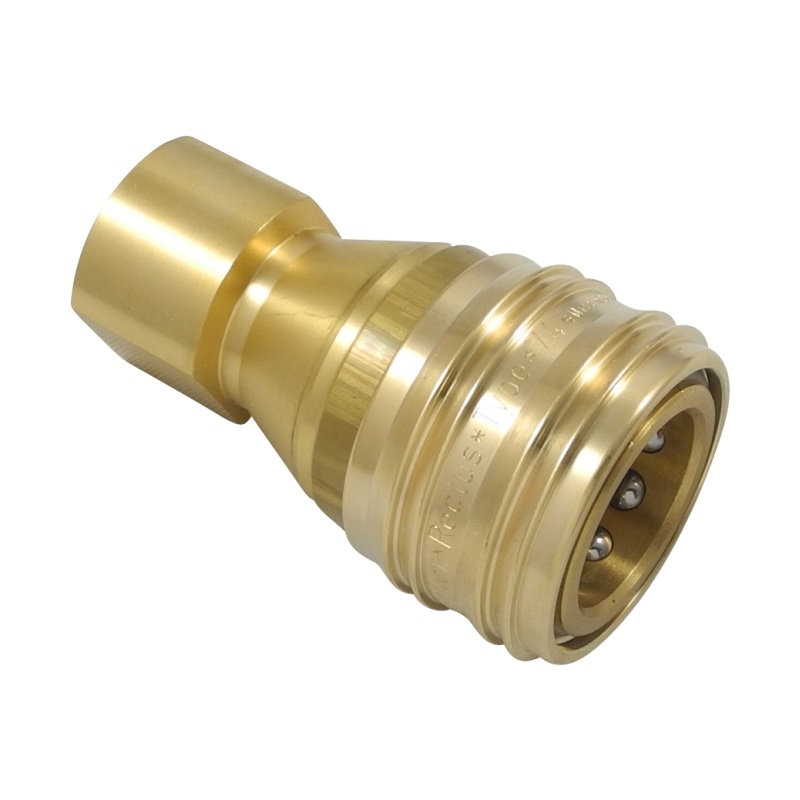

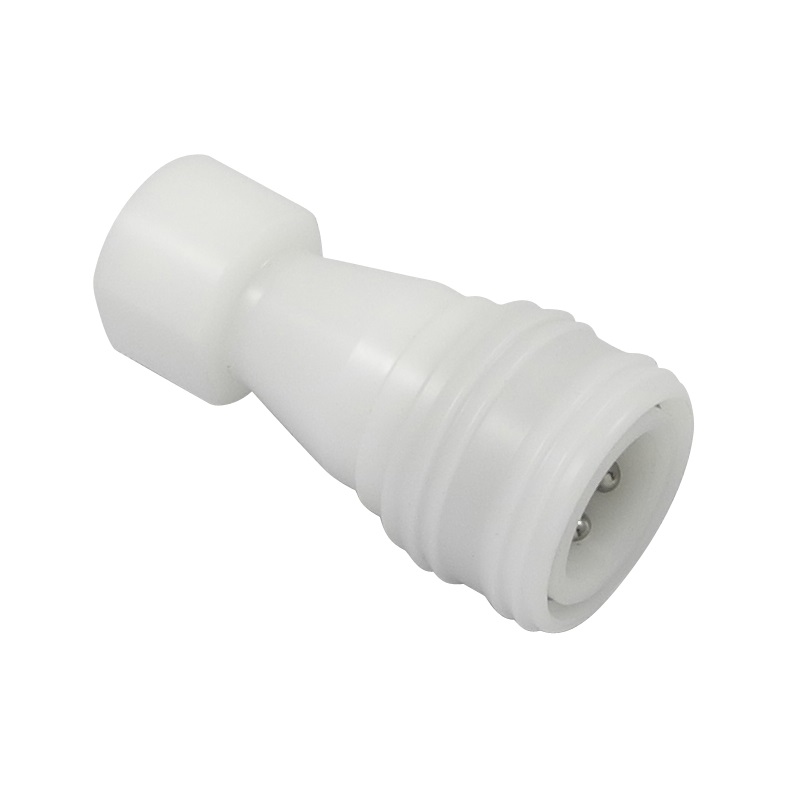

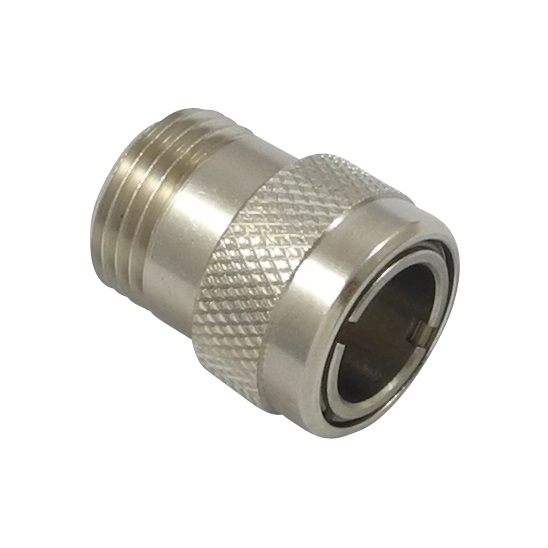

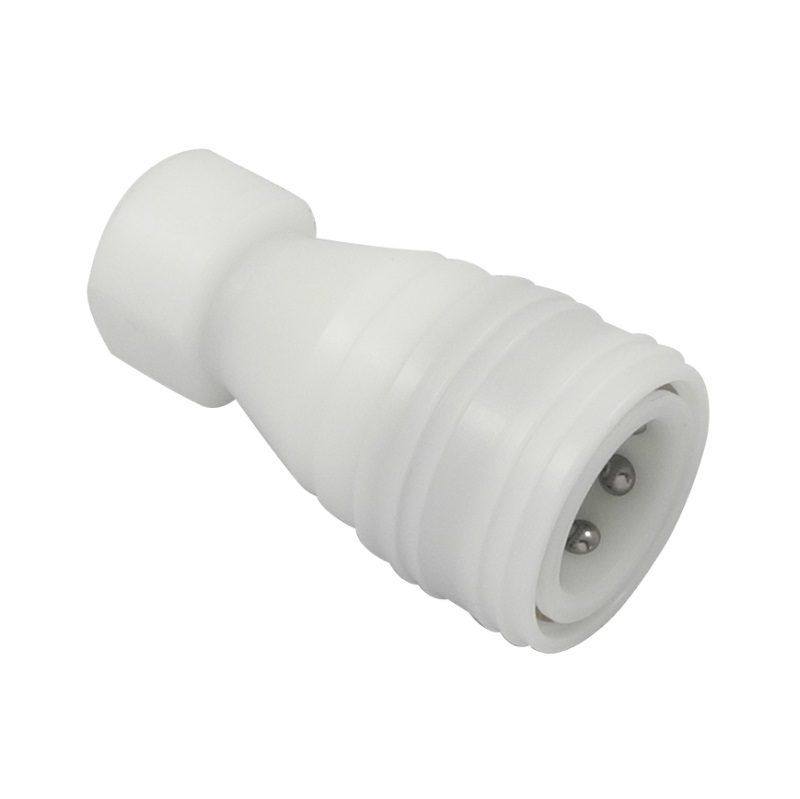

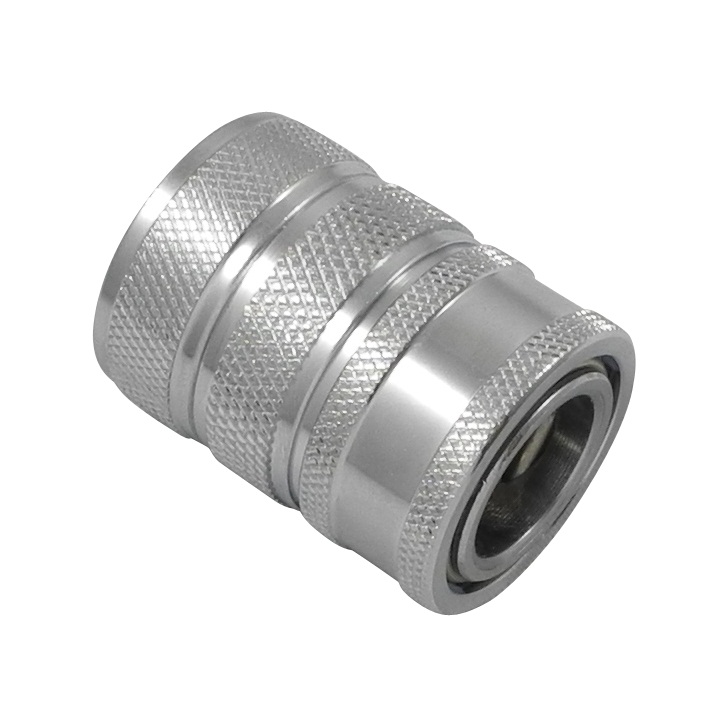

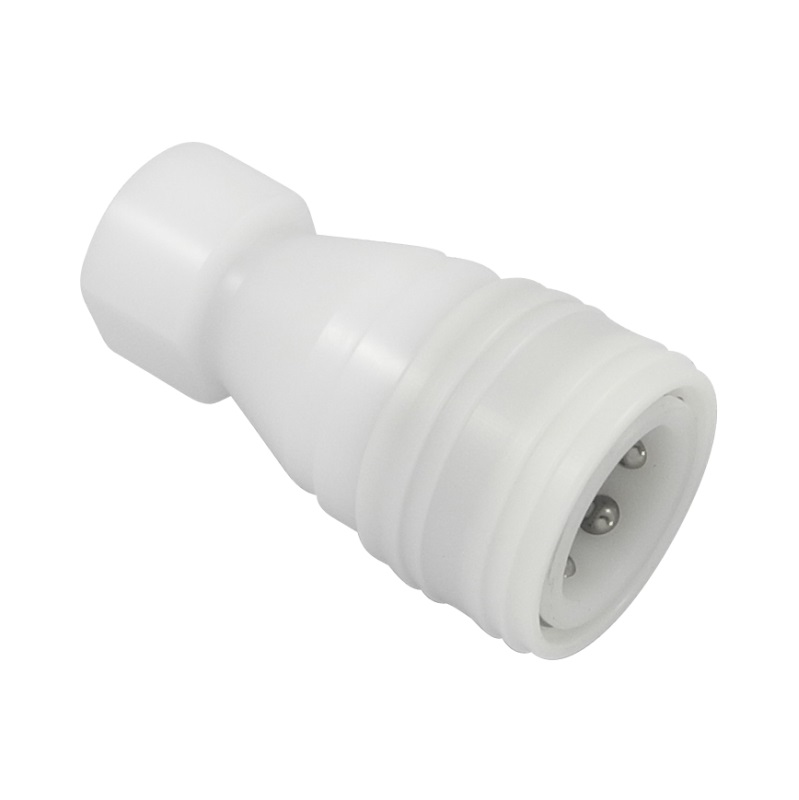

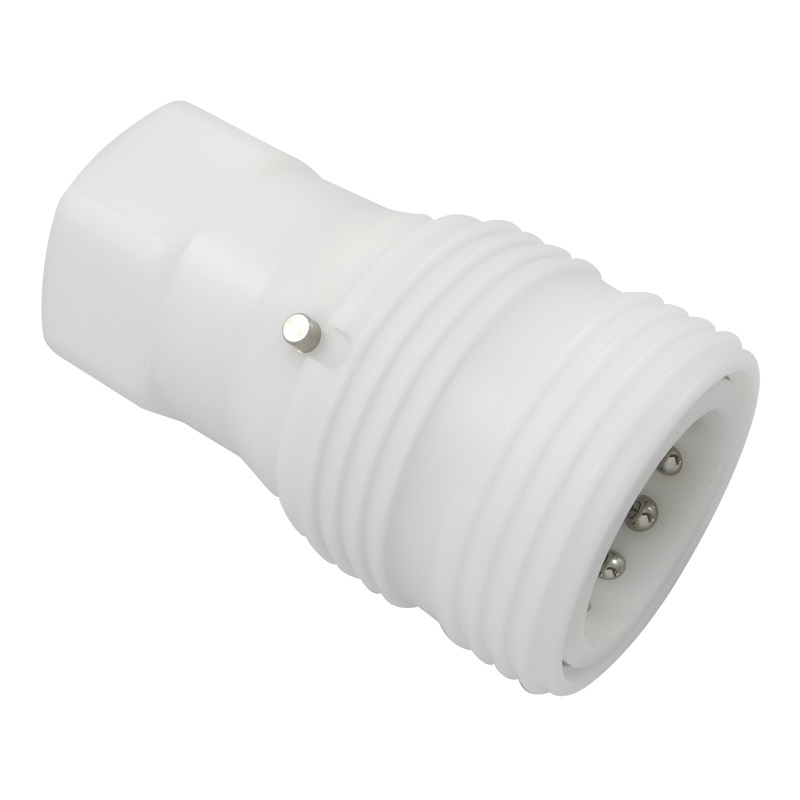

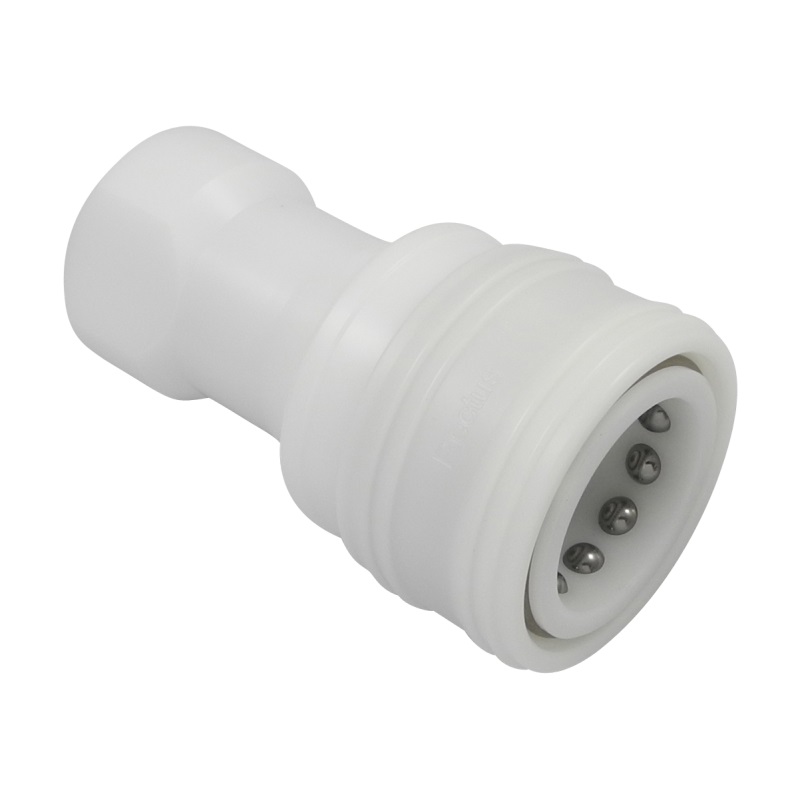

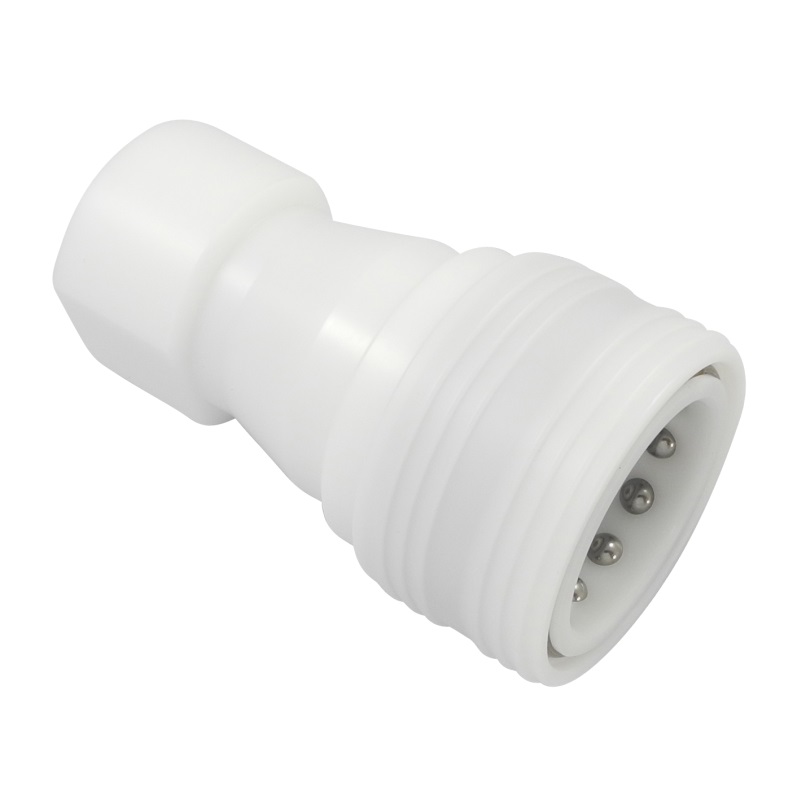

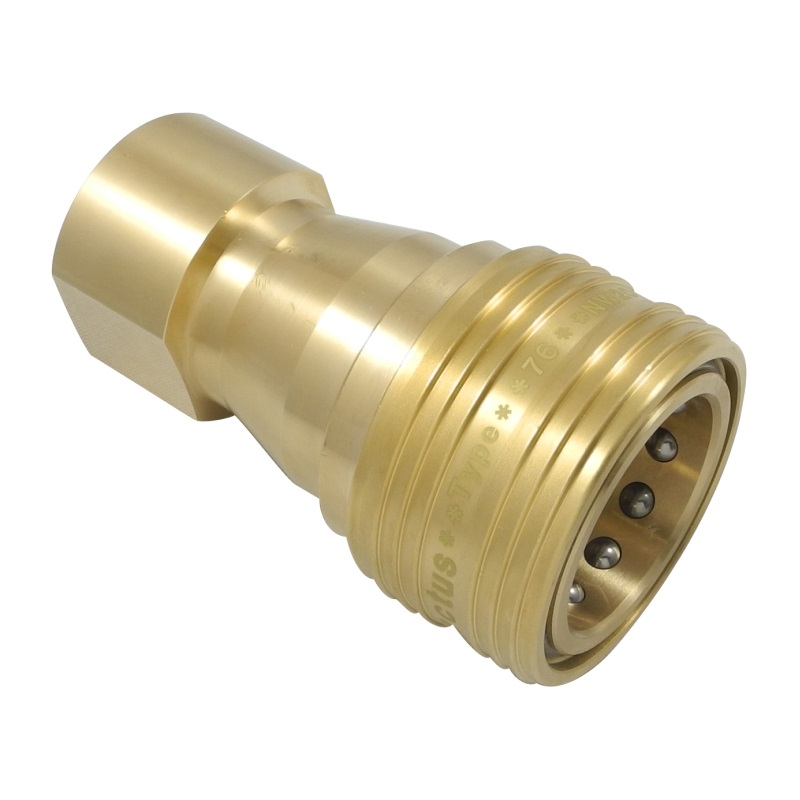

To ensure corrosion resistance and longevity, quick couplings for water applications primarily use nickel-plated brass, stainless steel, and high-quality plastics such as PVDF (polyvinylidene fluoride). Stainless steel offers high protection against corrosion and is chemically resistant to various water additives, while PVDF couplings with PEEK springs are particularly suitable for use with ultrapure water and in chemically aggressive environments. Thermoplastic hoses and couplings made of plastic materials are preferred in applications where lightness, chemical resistance, and ease of handling are paramount. The designs of quick couplings vary, from single shut-off variants to double shut-off systems according to standards such as DIN 7241-1 (Series B). The latter prevent water from escaping from both coupling elements upon disconnection and are therefore particularly suitable for use in sensitive water circuits. Furthermore, attention must be paid to nearly air-inclusion-free coupling to ensure undisturbed fluid circulation.

Connections and Sealing Systems in Water Quick Coupling Technology

Connection sizes typically range from 1/8 inch to 1 inch, adapted to the respective pipe or hose dimensions. For a secure seal, robust materials such as NBR (nitrile butadiene rubber), FKM (fluorocarbon rubber), or EPDM (ethylene propylene diene rubber) are used, selected according to the operating temperature and water quality. EPDM, for example, is resistant to hot water and steam, enabling its use in industrial cooling circuits and heat transfer systems. Similarly, the choice of seal is crucial for chemical resistance if additives or treated water flow through the system.

Practical Examples of Quick Couplings in Water Applications

In mechanical engineering, quick couplings are frequently used to design water circuits in a modular and maintenance-friendly way. For example, cooling lines of machine tools are equipped with double shut-off quick couplings, which allow quick disconnection of lines during maintenance or conversion without water escaping or the system needing to be vented. In such a setup, the robust design of the couplings enables a high flow rate and rapid separation of individual circuits, minimizing downtime. Another example is cooling circuits in data centers or industrial electronics, where quick couplings are used to build modular cooling systems. There, a quick coupling connects the water hoses between the cooling distributor and electronic components. The one-hand operation and the secure, leak-proof connection ensure that cooling can be quickly disconnected and reconnected during repair work without affecting system performance and without contamination of the internal coolant. In the field of water and wastewater technology, quick couplings are essential for flexible pump connections. Pumps can be easily removed or replaced as needed using quick couplings, which are designed to minimize media-contacting parts and almost completely eliminate the risk of leakage. The high resistance to water additives allows use even in demanding environments with slightly aggressive or treated water.

Key Advantages in Applications

- One-hand operation with secure locking increases occupational safety
- Double shut-off valves prevent media loss and environmental damage
- High pressure and temperature resistance, adapted to the respective usage scenarios
- Compatibility with various materials and standards enables flexible integration
- Low pressure drop due to optimized flow paths in the coupling design
More information on technical components and further application scenarios can be found on our Technology and Application Examples pages.

FAQs on Quick Couplings for Water

1. Which quick coupling is suitable for drinking water applications?
For drinking water, quick couplings made of high-quality stainless steel alloys or food-grade plastics with suitable seals such as EPDM or FDA-certified material are recommended. These ensure corrosion resistance and prevent the formation of germs or pollutants in the water.
2. How can leaks be prevented when disconnecting quick couplings?
Leaks are minimized by double shut-off quick couplings, which feature integrated valves in both the plug and the coupling. These automatically shut off the medium as soon as the couplings are separated, so no water escapes.
3. What temperature and pressure ranges do quick couplings for water cover?
Depending on the material and design, quick couplings for water are typically suitable for temperatures from approximately -20 °C to +90 °C and operating pressures up to 16 bar. High-performance variants can also be used at higher pressures and elevated temperatures, especially when stainless steel and special seals are used.
These technical values should always be compared with specific manufacturer specifications and operating conditions. Further details can also be found in our Technology section.
