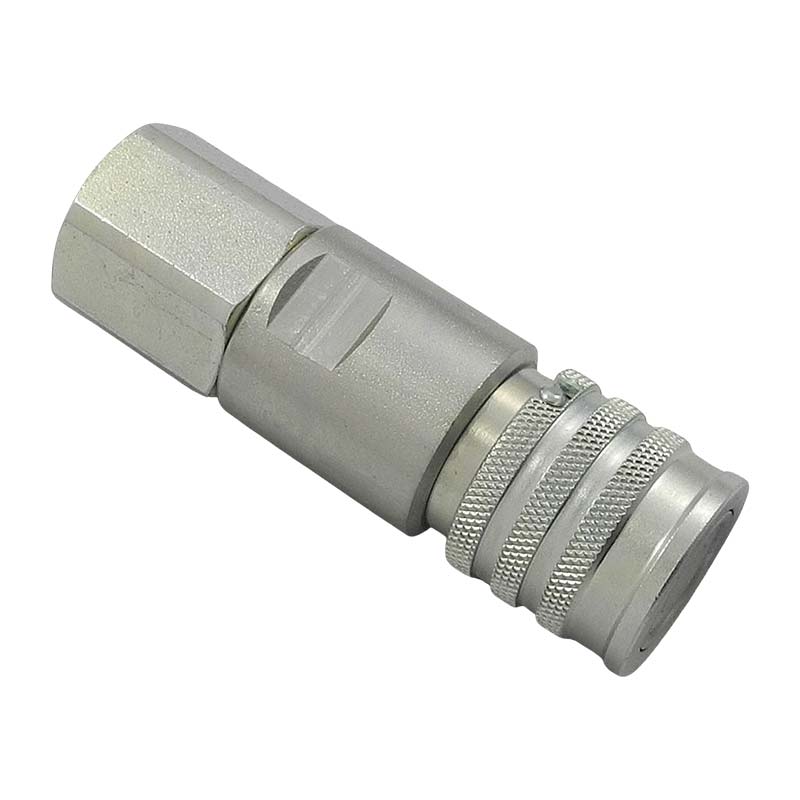

Series: | FEM/IF |
Valve: | with |
Seal: | NBR |
Old order number: | IF2521 |
Series long: | IF2500 |
Bore in mm: | 6,3 |
Bore area in mm²: | 31 |
Size in general: | 1/4" |
Advantages: | Can be operated with use of one hand- Safety locking feature as standard to prevent unintentional uncoupling. |
Coupled working pressure in bar: | 315 |
Working temperature: | -30°C up to +100°C (NBR) -25°C up to +200°C (FKM) depending on the medium. |
Shut-Off: | Plug Double Shut-Off |
Connection: | Female thread 1/4" |
Connection type: | Female thread |
Material: | Steel |
Surface: | zinc plated, passivated, sealed |
Material valve body: | steel hardened |
Material valve: | Steel, zinc-plated, passivated, sealed |
Material valve holder: | Brass |
Material spring snap ring: | 1.4310 |
Material valve pressure eliminator: | Brass |
Material valve holder pressure eliminator: | Zinc cast |
Weight in kg: | 0,174 |
Safety locking system: | Yes |
Single-hand operation: | Yes |
Two-hand operation: | No |
Ball locking: | Yes |
Vacuum suitable: | No |
Flat-sealing: | No |
Pressure eliminator: | Yes |
Hydraulics: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
