Product information "0653 66 13 Blowgun"

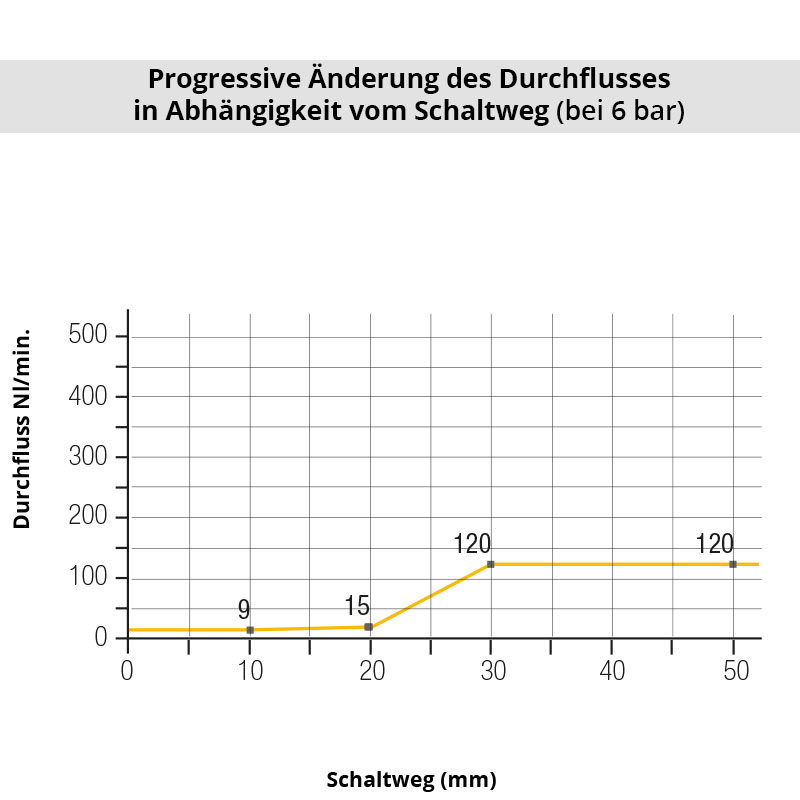

Combines progressive flow control, safety, energy saving and ergonomy. Conforms with regulations of cleaning operations. Its integrated inviolable flow reducer provides full and active safety. The flow reducer system allows for 40% saving in air consumption and guarantees stable flow max 120Nl/min. Can be adapted to all available interchangeable nozzles.
Weight in kg: 0,144
Maximum working pressure in bar: 10
max. temperature in °C: 50
min. temperature in °C: -15
RoHS compliant: Yes
Material seal: NBR
Material nozzle: Brass nickel plated
Material body: Engineered polymer
Material threaded fitting: Brass nickel plated
Material lever: Engineered polymer
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

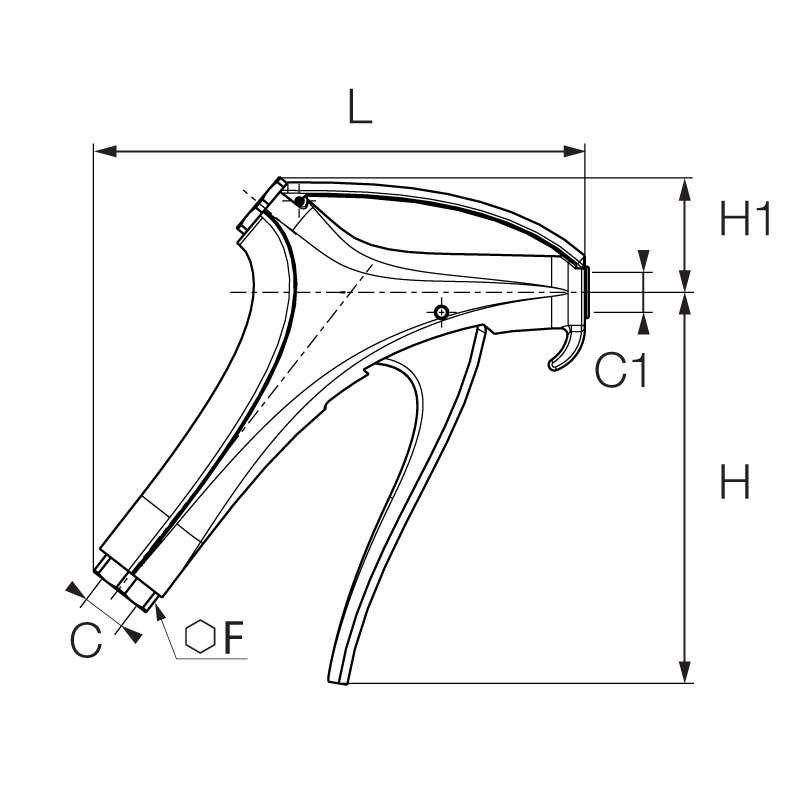

Technische Zeichnung 0653 66 13
C: G1/4"
C1: M12x1,25
F: 20
H: 117
H1: 34
L: 147
Skip product gallery

Accessory Items

5-6 workdays
0690 03 00
0690 03 00 Nozzle
for Blowguns, Straight tube nozzle (long), M12x1,25

€19.64
5-6 workdays
0690 05 00
0690 05 00 Nozzle
for Blowguns, Angle tube nozzle (long), M12x1,25

€21.46
5-6 workdays
0690 06 00
0690 06 00 Nozzle
for Blowguns, Angle tube nozzle (short), M12x1,25

€13.44
on Stock
0690 09 00
0690 09 00 Nozzle
for Blowguns, Air screen nozzle, M12x1,25

€23.16
0690 10 00
0690 10 00 Nozzle
for Blowguns, Venturi-nozzle, M12x1,25

€12.66
5-6 workdays
0690 01 00
0690 01 00 Nozzle
for Blowguns, Standard-nozzle, M12x1,25

€8.96
on Stock
0690 02 00
0690 02 00 Nozzle
for Blowguns, Safety-nozzle, M12x1,25

€14.48
approx. 22 workdays
0690 11 00
0690 11 00 Nozzle
for Blowguns, Booster nozzle with air screen, M12x1,25

€27.79
5-6 workdays
0690 06 01
0690 06 01 Nozzle
for Blowguns, short, angled extension tube, M12x1,25

€15.99
approx. 12 workdays
0690 07 00
0690 07 00 Nozzle
for Blowguns, nozzle with Push-In-connection LF 3000, M12x1,25

€10.89
5-6 workdays
0690 04 00
0690 04 00 Nozzle
for Blowguns, Straight tube nozzle (short), M12x1,25

€12.74
0690 08 00
0690 08 00 Nozzle
for Blowguns, COANDA-nozzle, M12x1,25

€12.14
