Product information "0690 09 00 Blowgun"

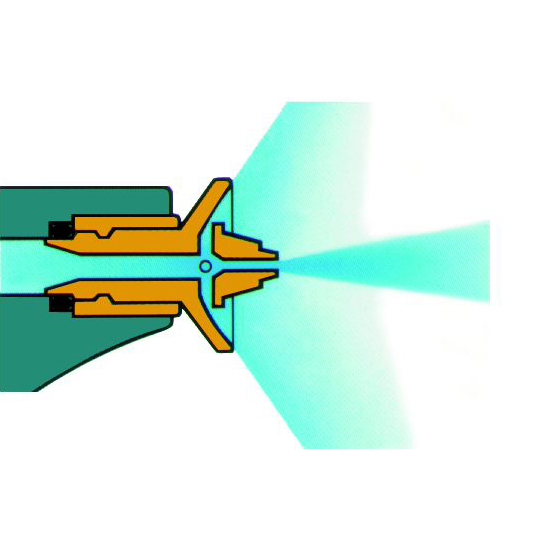

The air screen nozzle offers:
- Optimum security for the user.
- No risk of overpressure when nozzle is blocked.
Weight in kg: 0,021
Maximum working pressure in bar: 10
max. temperature in °C: 50
min. temperature in °C: -15
Bore in mm: 2
RoHS compliant: Yes
Material deflector: Engineered polymer
Material body: Brass nickel plated
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

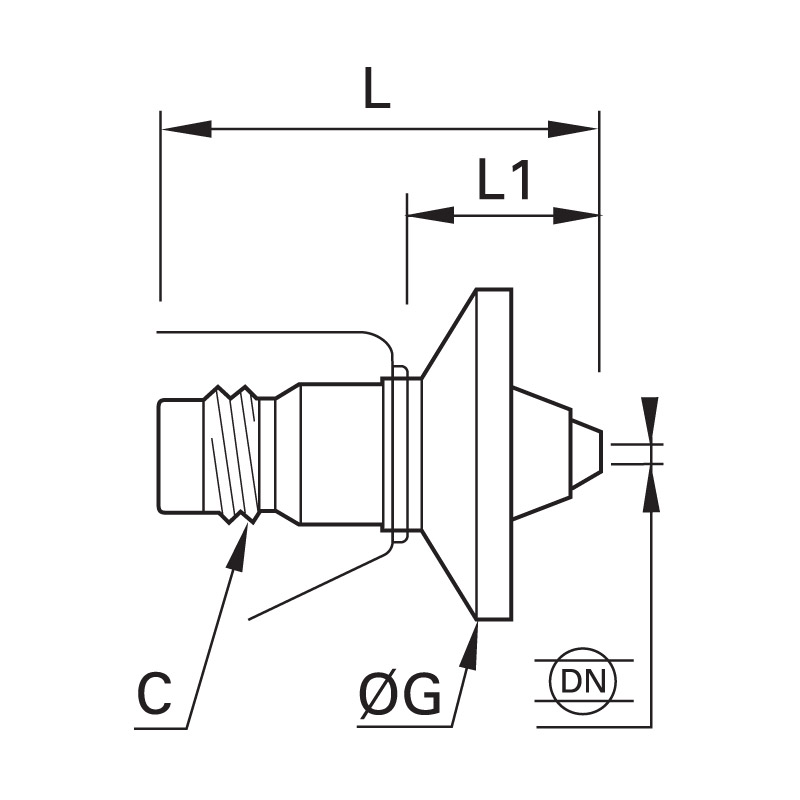

Technische Zeichnung 0690 09 00
C: M12x1,25
G: 30
L: 40,5
L1: 18,5
