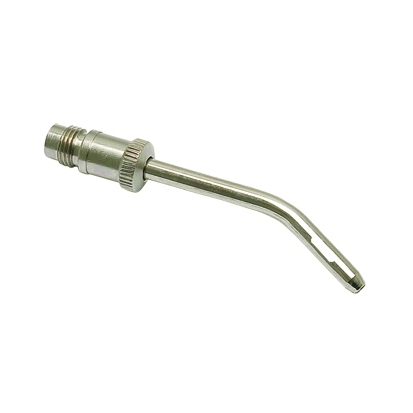

0690 06 00 Blowgun

Blowguns, Angle tube nozzle (short), M12x1,25
€12.83 *

Prices incl. VAT plus shipping costs

Delivery time: 7-8 Workdays

Sold only in units of 5 pieces.

Total: 12.83 *
Progressive and limited air jet (for full safety of use). Useful where access is restricted. 360°... more
Product information "0690 06 00 Blowgun"
Progressive and limited air jet (for full safety of use). Useful where access is restricted. 360° rotational.
Bore in mm: 2,5
Maximum working pressure in bar: 10
Material seal: NBR
Material nozzle: Brass nickel plated
Material body: Brass nickel plated
min. temperature in °C: -15
max. temperature in °C: 50
RoHS compliant: Yes
Weight in kg: 0,033

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Available downloads:

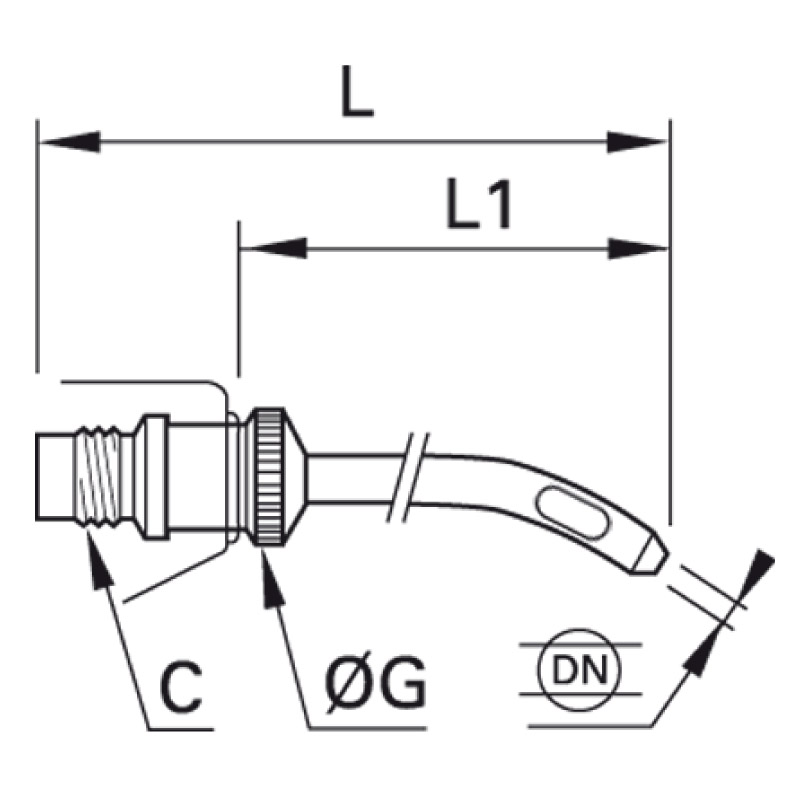

Technische Zeichnung 0690 06 00
C: M12x1,25
G: 15
L: 94
L1: 70
