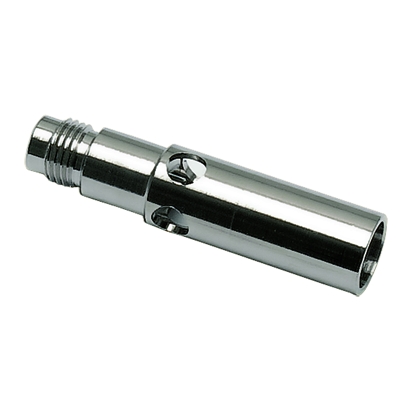

Product information "0690 10 00 Blowgun"

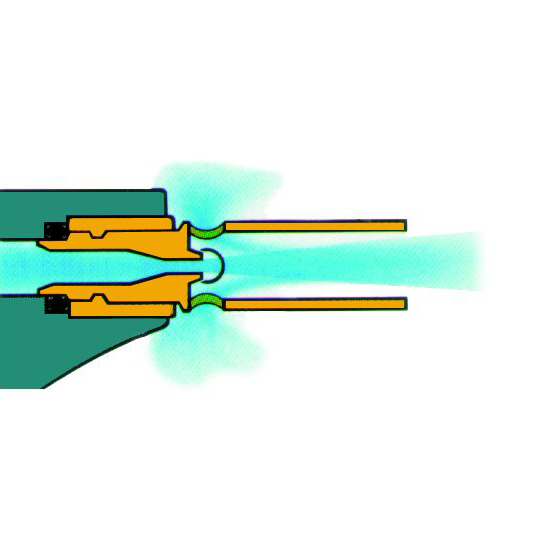

VENTURI-nozzle. Features:
- Especially suited for use with large areas thanks to its large air flow
- Offers energy savings by venturi method of increasing air flow
- throttled air speed
Weight in kg: 0,038
Maximum working pressure in bar: 10
max. temperature in °C: 50
min. temperature in °C: -15
Bore in mm: 2,5
RoHS compliant: Yes
Material body: Brass nickel plated
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

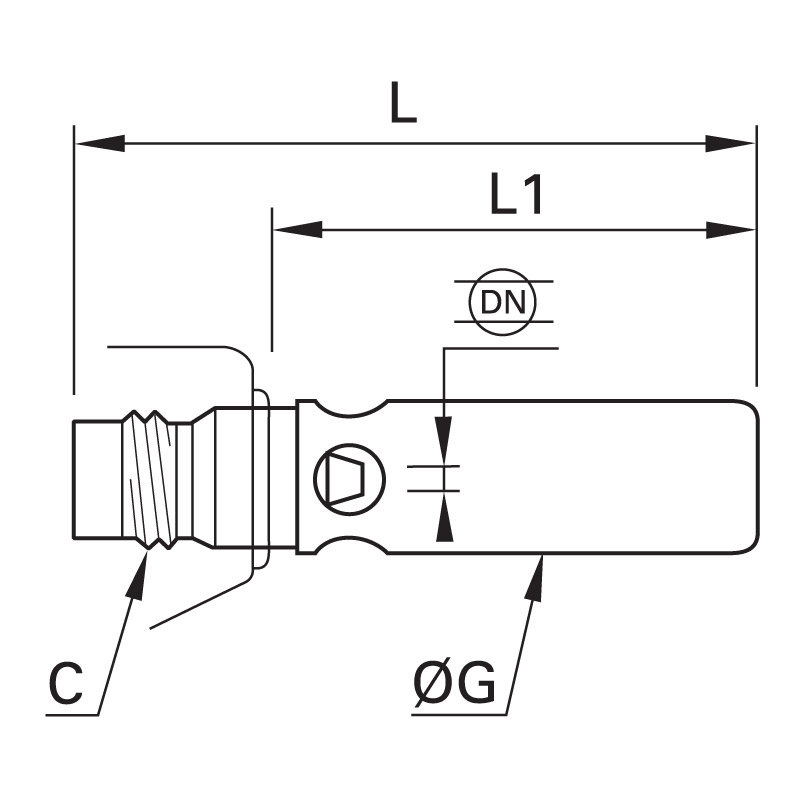

Technische Zeichnung 0690 10 00
C: M12x1,25
G: 15
L: 64
L1: 42
