Product information "0690 11 00 Blowgun"

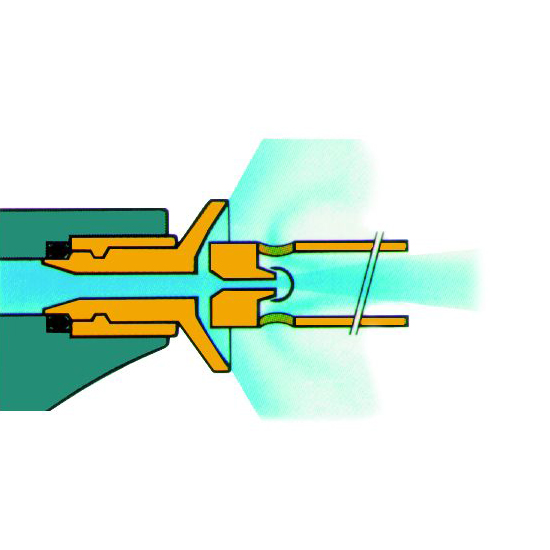

Booster nozzle with air screen. Features:
- has the same venturi features as the booster nozzle
- No risk of overpressure when nozzle is blocked.
- Optimum security for the user.
Weight in kg: 0,046
Maximum working pressure in bar: 10
max. temperature in °C: 50
min. temperature in °C: -15
Bore in mm: 2,5
RoHS compliant: Yes
Material deflector: Engineered polymer
Material body: Brass nickel plated
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

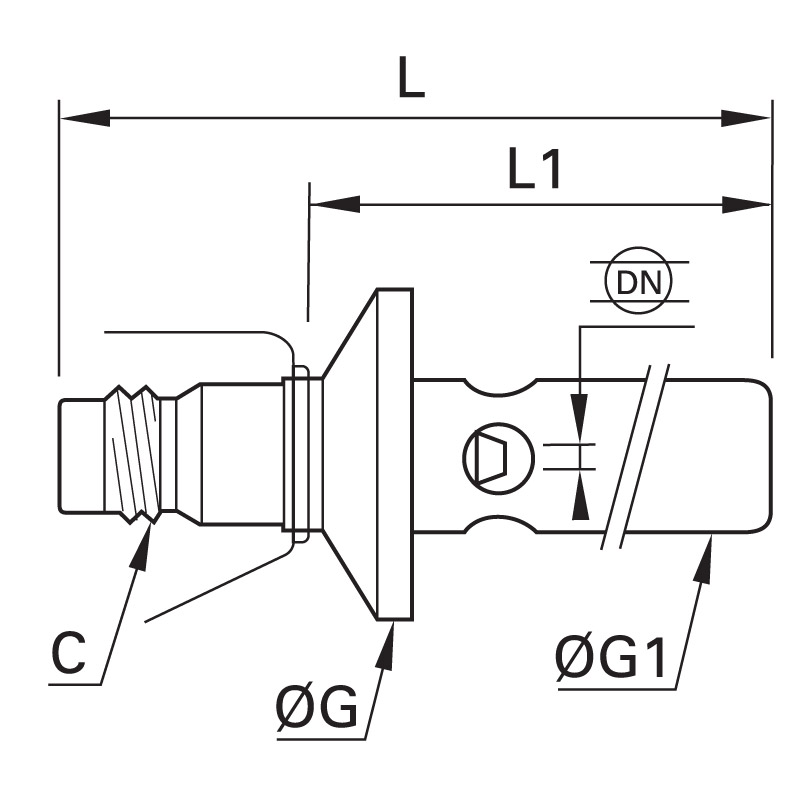

Technische Zeichnung 0690 11 00
C: M12x1,25
G: 30
G1: 15
L: 76
L1: 54
