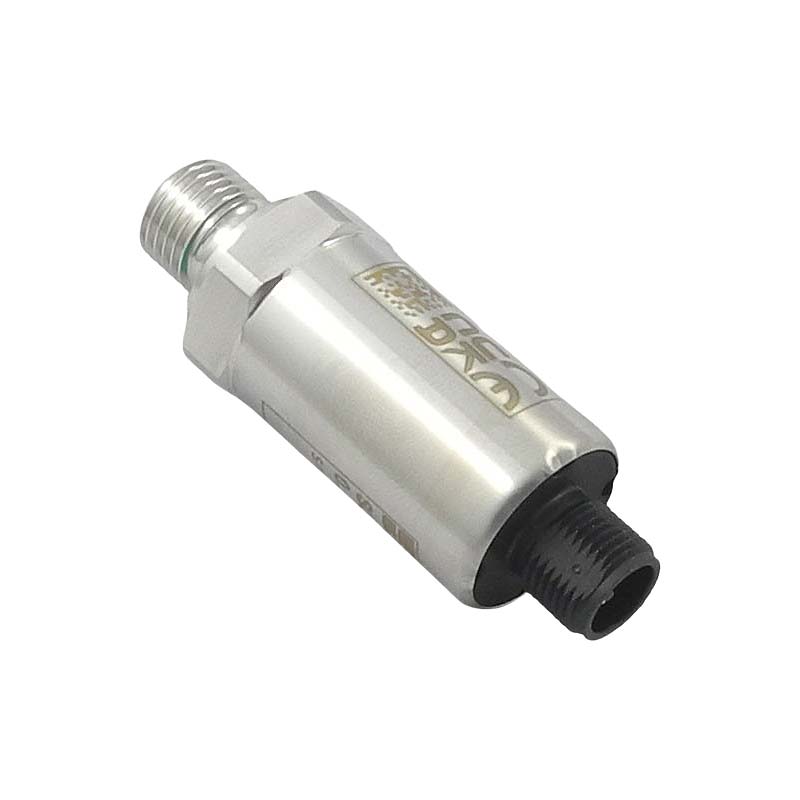

Product information "SCP03-025-34-07 SensoControl Pressure Sensor"
The SCP03 is a pressure sensor for liquid and gaseous media.
The digitally adjusted piezoresistive measuring cell records negative pressures from -1 bar up to high pressures of 1000 bar. The pressure connection that comes into contact with the medium has a monolithic structure. This eliminates internal seals and welds. A mix of materials is avoided.
The resulting low permeability in combination with the stainless steel result in a wide range of media resistance.
Device characteristics: • Monolithic design · No internal seal · No mix of materials · No weld • High media compatibility • Measuring range from -1 to 1000 bar • Resistant to vacuum • Lots of connections
Connection:
Male thread 1/4"
Pressure measurement range:
0 - 25 bar
Electrical connection:
Circular connector M12x1; 4 pin
Precision:
± 0.3 % FS
Weight in kg:
0,072
Load change:
≥ 100 Mio.
Material:
Stainless steel
RoHS compliant:
Yes
Working temperature:
-40°C to +105°C
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
