The Parker Serviceman Plus is a mobile, extremely robust and easy-to-use measuring device for many measuring tasks in mobile hydraulics or in stationary hydraulic systems.
With the automatic sensor recognition, you can simply plug in pressure, temperature, flow rate or speed sensors and start the measurement immediately.
Tedious parameterization of the sensors is not necessary, the measuring ranges are scaled automatically and the measured variable is shown on the display.
Parker Serviceman Plus:
• Simple operation
• Robust design with oil-resistant rubber protection
• Plug & Play functionality
• Large backlit display
• Direct storage on nano USB stick
• PC connection
• Including the PC software SensoWin®
• Available in 2 versions: analogue or CAN
| Case: | Plastic case |
| Protection: | IP 67 |
| Material body: | PC/ABS/POM |
| Sampling rate: | 1 ms |
| Weight in kg: | 2,64 |
| Battery: | Lithium-ion pack, 3.7 V DC / 4500 mAh, charging time approx. 7 hours with mains adapter, service life more than 8 hours with 2 CAN bus sensors |

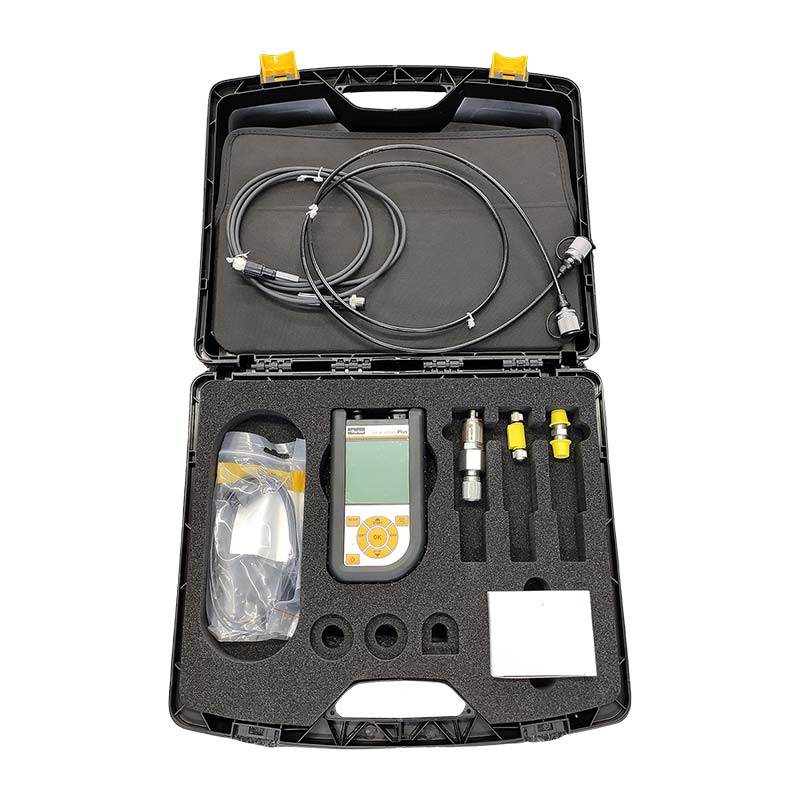

| Scope of delivery: | Device case SCC-200 Serviceman Plus SCM-155-2-05 (CAN) Power supply unit with USB connection 110/240 VAC, 1 A, SCSN-440 Nano USB stick 4 GB, SC -USB-MINISTICK 1 m USB connection cable (for charging and for connecting to the PC) SensoWin® PC software Pressure sensor 600 bar CANSCP-600-C4-05 Connection cable CAN SCK-401-02-4F-4M CAN SCK-401-R terminating resistor EMA adapterSCA-EMA-3/3 SMA3-1500CF measuring hose |
| Software: | SensoWin® |
| Power supply: | Micro USB socket, type. B, +5V DC, max. 1,000mA |
| Display: | FSTN-LCD, graphic, with LED backlight 62 x 62 mm |
| Pressure measurement range: | 0 - 600 bar |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
