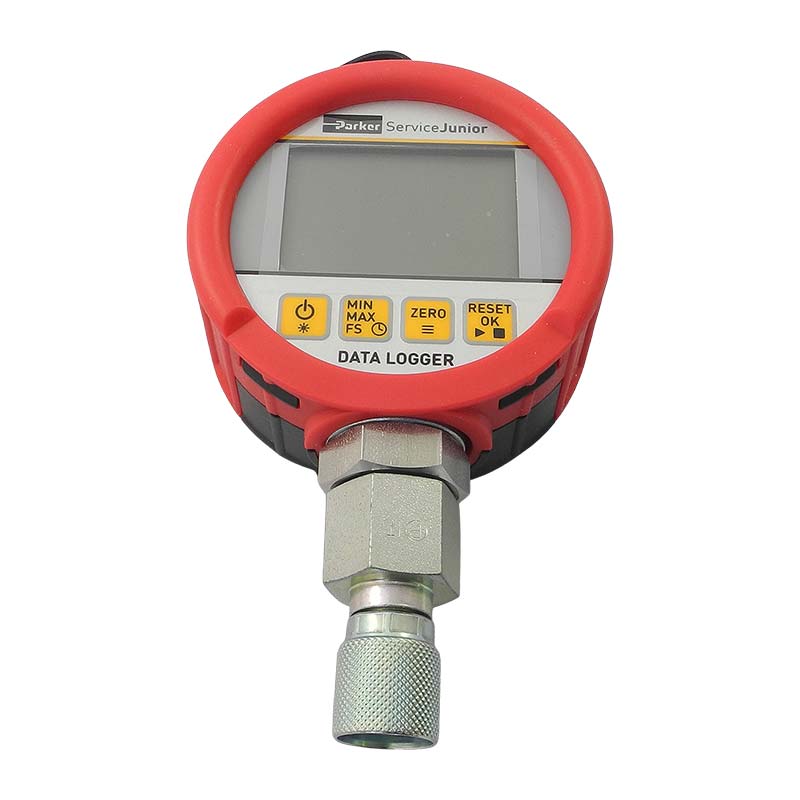

The ServiceJunior makes it possible to measure, display and store pressures in one device.
It is characterized by an extremely robust design in a metal housing and easy operation.
Multiple mechanical pressure gauges are often required for accurate measurements over a wide pressure range. Due to the high accuracy, resolution and long-term stability and the 4 1/2-digit display, the ServiceJunior does this job with just one device.
The data logger with real-time clock not only records the current measured values, but also the Min and Max values.
Functions:Units: mbar, bar, PSI, Mpa, kPa, kg/cm²
Display MIN/MAX/FS
Battery level indicator
Auto Power Off/On
Zero (zero point adjustment)
Reset (clear MIN/MAX)
Protection: | IP 65 |
Material body: | Zinc die-cast with rubber protective sleeve TPE |
Precision: | ± 0.5 % FS |
Sampling rate: | 10 ms |
Weight in kg: | 0,605 |
Connection description: | Stainless steel 1/4" BSPP (ISO 228-1), Adapter M16x2 SCA-1/4-EMA-7 |
Load change: | ≥ 100 Mio. |
Power supply: | 2 x 1.5V batteries (AA) Battery life max. 1,500 h |
Display: | 4.5-digit LC text display backlit |
Pressure measurement range: | 0 - 600 bar |
Material seal: | NBR |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
