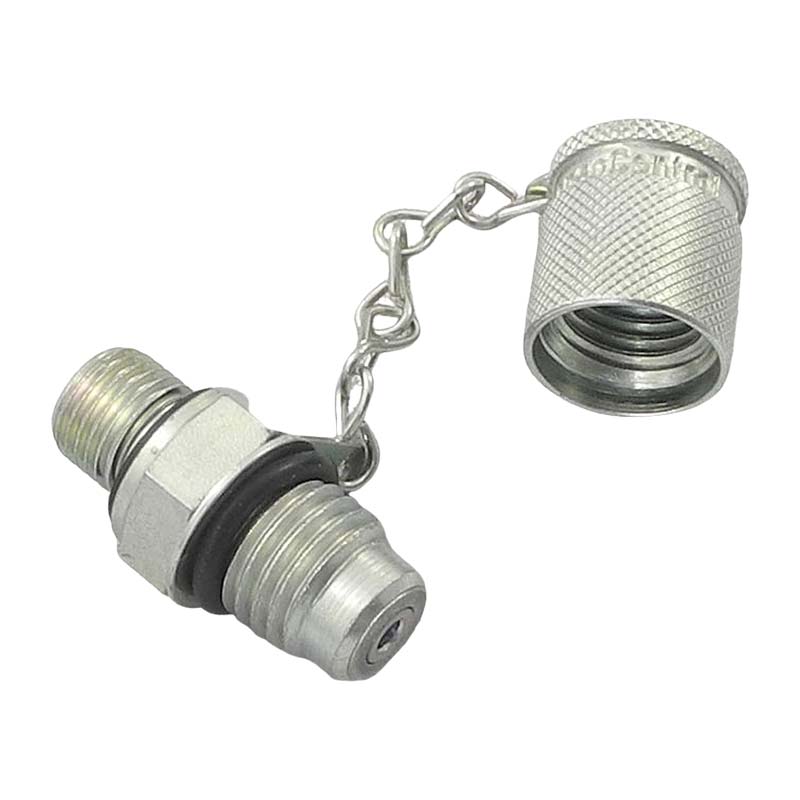

Product information "EMA3/1/4ED71 SensoControl Test Point"
• For pressure monitoring and control of high & low pressure and vacuum systems. • For venting cylinders and hydraulic systems. • For sampling at high, low and negative pressure.
Advantages • Leak-free sealing of the connection before valve is opened • Robust, reliable construction with small dimensions • Easy handling • Simple connection of measuring, testing and switching devices • Coupling possible under pressure up to 400 bar for types with screw coupling • Nominal pressures up to 630 bar • Vibration-proof metal protection cap
Seals:
Eolastic seal
Form:

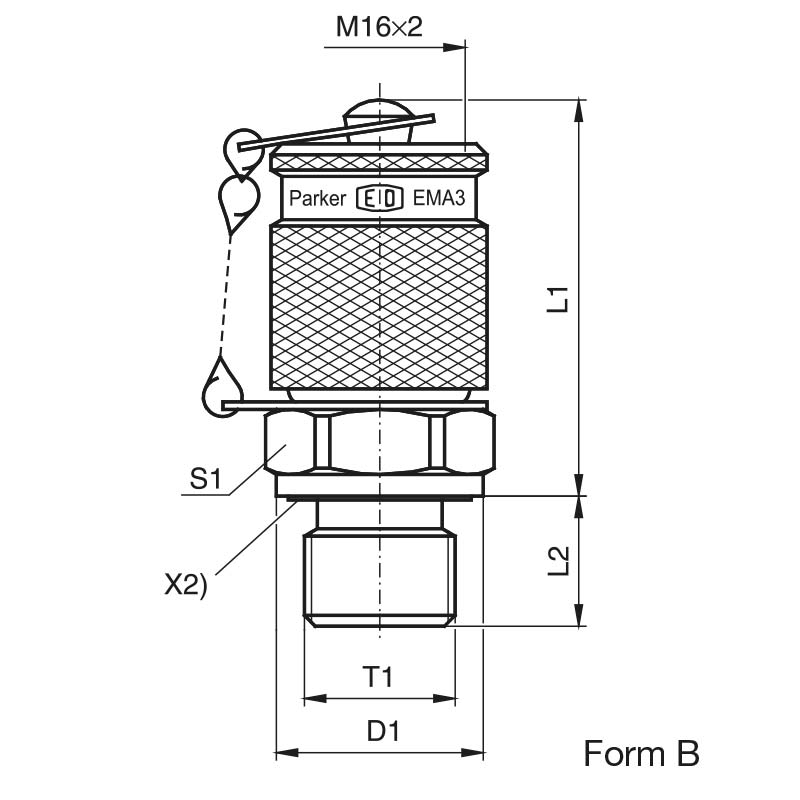

B
Weight in kg:
0,102
Material:
Stainless steel
Maximum working pressure in bar:
630
max. temperature in °C:
+250°C steel, +400°C stainless steel
min. temperature in °C:
-40°C steel, -60°C stainless steel
Optional accessories:
Pre-installed nuts and EO-PSR cutting rings, Pre-installed EO-2 functional nut
Series:
3
Series long:
3
Material seal:
FKM
Additional information:
Specification met: DIN ISO 8434
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
