• For pressure monitoring and control of high & low pressure and vacuum systems.
• For venting cylinders and hydraulic systems.
• For sampling at high, low and negative pressure.
Advantages
• Leak-free sealing of the connection before valve is opened
• Robust, reliable construction with small dimensions
• Easy handling
• Simple connection of measuring, testing and switching devices
• Coupling possible under pressure up to 400 bar for types with screw coupling
• Nominal pressures up to 630 bar
• Vibration-proof metal protection cap
• For venting cylinders and hydraulic systems.
• For sampling at high, low and negative pressure.
Advantages
• Leak-free sealing of the connection before valve is opened
• Robust, reliable construction with small dimensions
• Easy handling
• Simple connection of measuring, testing and switching devices
• Coupling possible under pressure up to 400 bar for types with screw coupling
• Nominal pressures up to 630 bar
• Vibration-proof metal protection cap
| Series: | 3 |

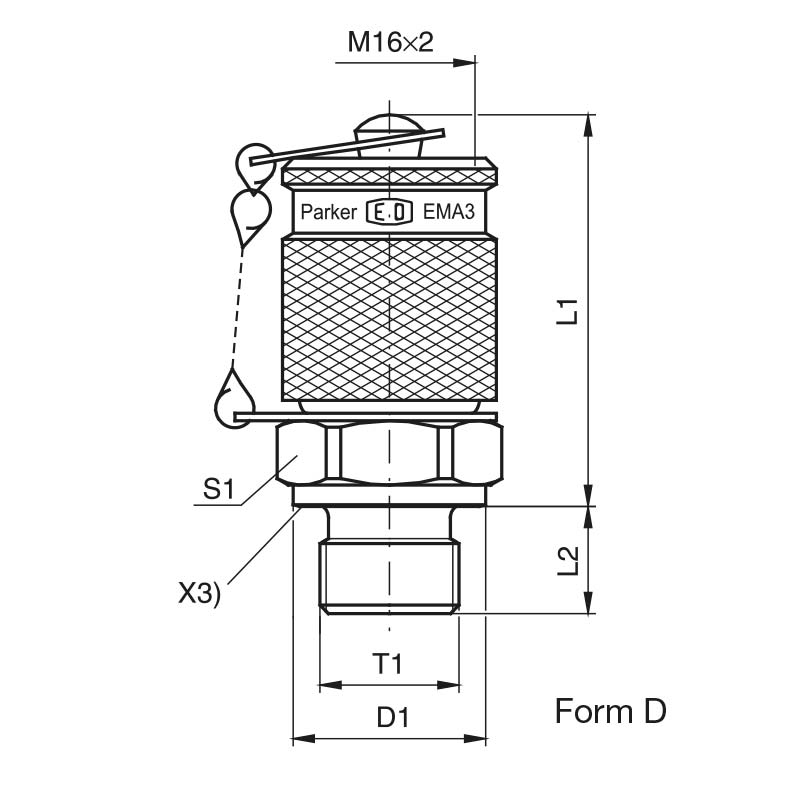

| Form: | D |
| Optional accessories: | Pre-installed nuts and EO-PSR cutting rings, Pre-installed EO-2 functional nut |
| Weight in kg: | 0,086 |
| Additional information: | Specification met: DIN ISO 8434 |
| Series long: | 3 |
| Seals: | Sealing edge |
| Material: | Stainless steel |
| Maximum working pressure in bar: | 400 |
| max. temperature in °C: | +250°C steel, +400°C stainless steel |
| min. temperature in °C: | -40°C steel, -60°C stainless steel |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
