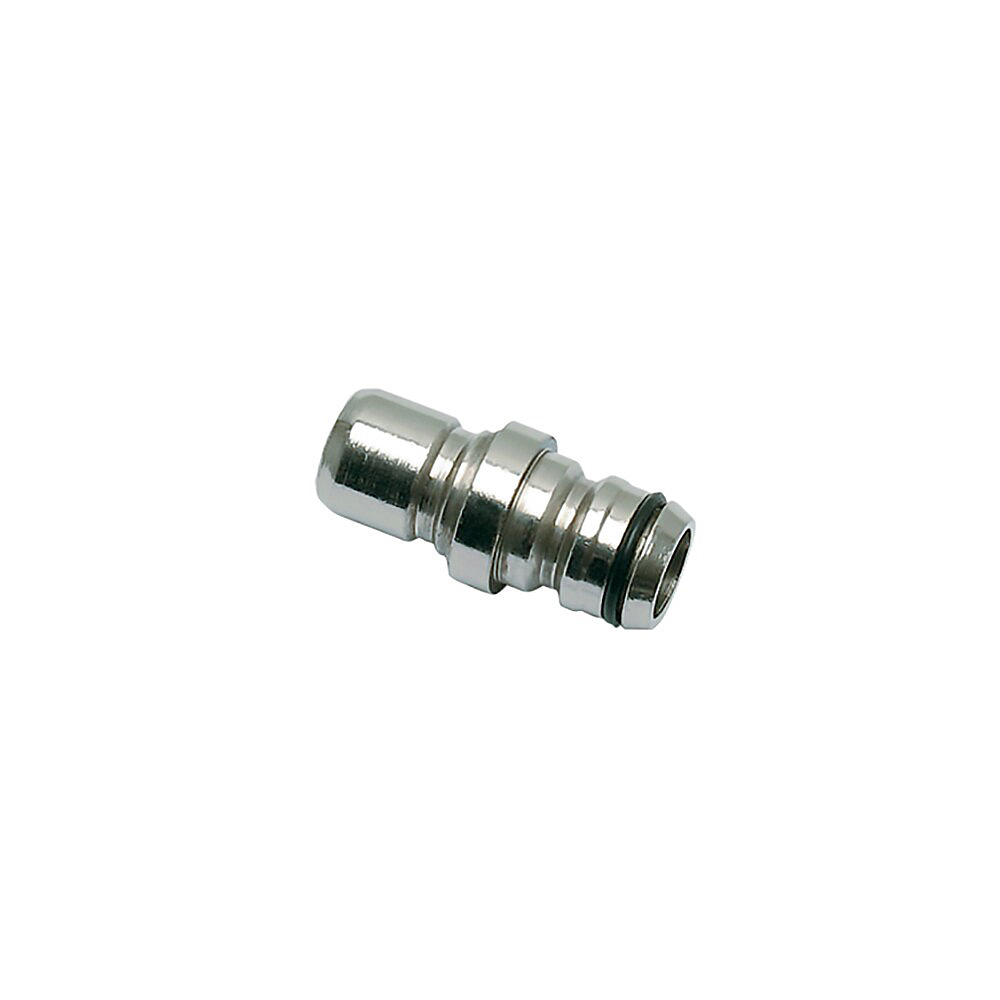

The Medium series is particularly suitable for water and compressed air applications. The wide range of connectors allows many combination options for the end user.
• Designed to transport water and liquids
• High flow capability
• Maximum energy efficiency
• Designed to transport water and liquids
• High flow capability
• Maximum energy efficiency
| Series: | Medium |
| Flow rate in l/min: | 2.200 (air) |
| Material connection: | Brass nickel plated |
| Series long: | Medium |
| Working temperature: | -20°C up to +100°C (NBR) |
| Surface: | nickel plated |
| Shut-Off: | Quick coupling Straight-Through |
| Connection: | Female thread G 1/2 |
| Connection description: | Plug female thread BSPP |
| Connection type: | Female thread |
| Bore in mm: | 12 |
| Maximum working pressure in bar: | 20 |
| Material seal: | NBR |
| Material: | Brass nickel plated |
| RoHS compliant: | Yes |
| Weight in kg: | 0,0709 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
