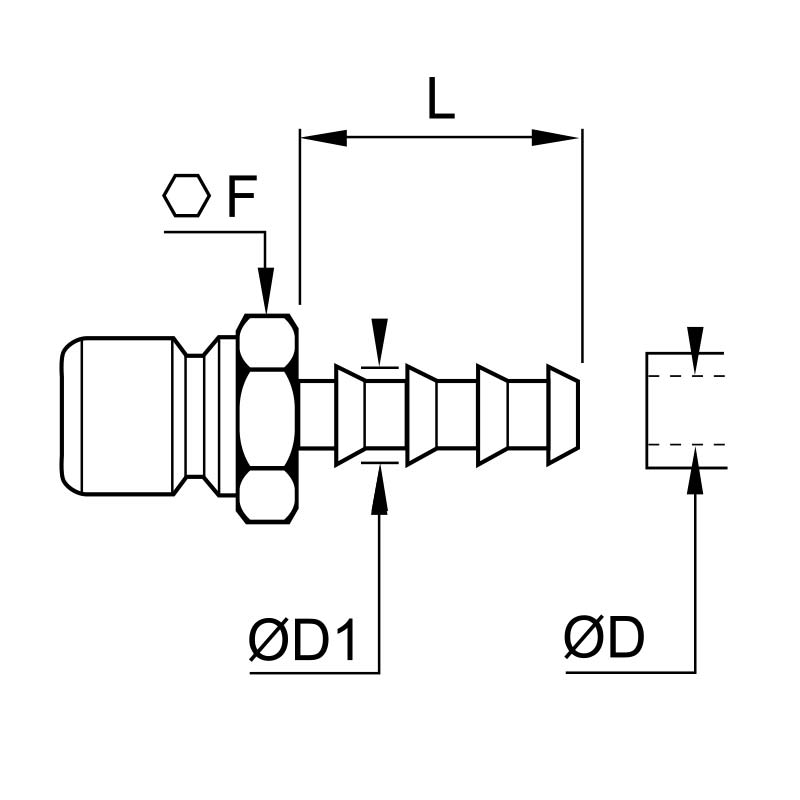

Product information "0195 10 00 Plug with hose barb"
The Medium series is particularly suitable for water and compressed air applications. The wide range of connectors allows many combination options for the end user. • Designed to transport water and liquids • High flow capability • Maximum energy efficiency
Shut-off:
Plug Straight-Through
Connection:
Hose barb 10mm
Connection type:
Hose barb
Flow rate in l/min:
2.200 (air)
Weight in kg:
0,0304
Material:
Brass nickel plated
Maximum working pressure in bar:
20
Bore in mm:
12
Surface:
nickel plated
Connection tube outside diameter 2:
10
Connection tube outside diameter 3:
12,2
RoHS compliant:
Yes
Series:
Medium
Series long:
Medium
Working temperature:
-20°C up to +100°C (NBR)
Material connection:
Brass nickel plated
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
