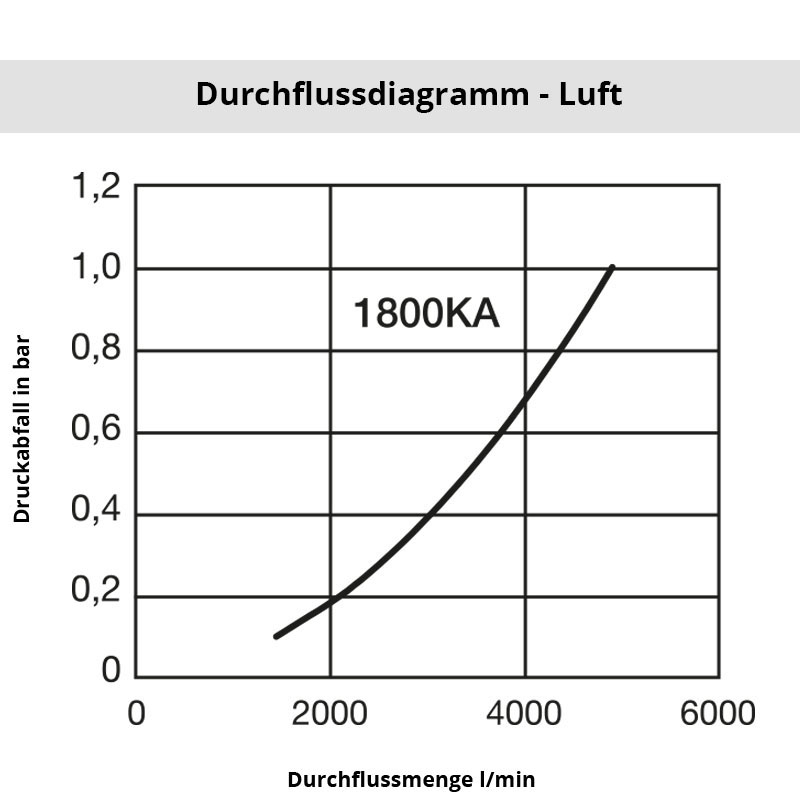

Series 1800 is used mainly for applications in the area of compressed air and liquids. The coupling system stands out for its robust, compact design and high corrosion resistance. Ultra High Flow valve for optimum flow and low pressure drop.
| Series: | 1800 |
| Old order number: | 1800 EC |
| Series long: | 1800KA |
| Bore area in mm²: | 80 |
| Advantages: | High flow. Single handed operation. Compact build. |
| Compatibility: | Rectus 32 |
| Working pressure: | 35 bar maximum static working pressure with safety factor 4 to 1. |
| Working temperature: | -20°C up to +100°C (NBR) -40°C up to +120/150°C (EPDM) -15°C up to +200°C (FKM) depending on the medium. |
| Shut-Off: | Quick coupling Single Shut-Off |

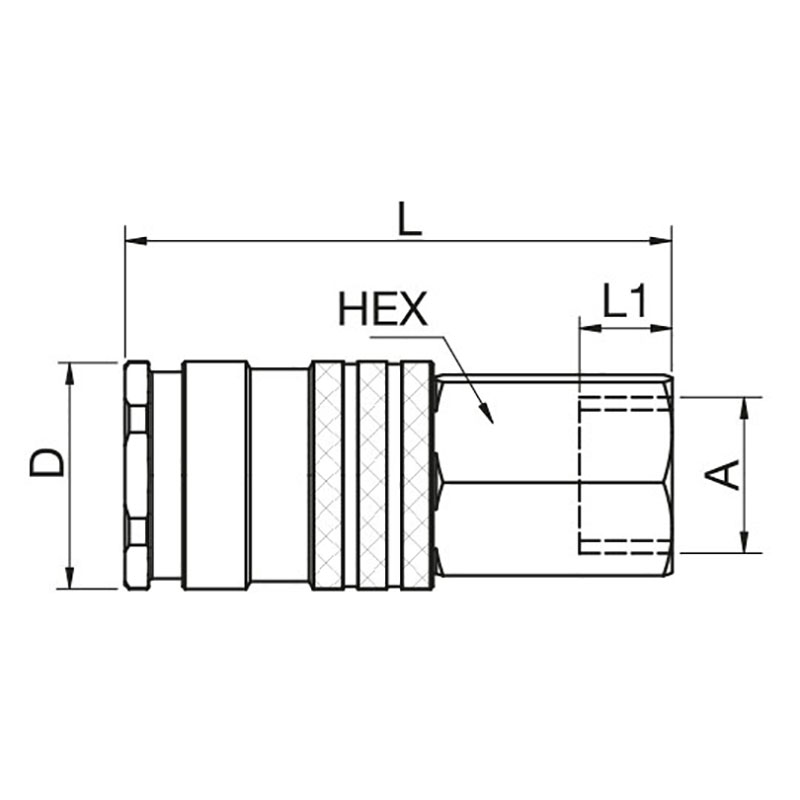

| Connection: | Female thread G 3/4 |
| Connection description: | Female thread G 3/4 |
| Material: | Brass, nickel plated |
| Material description: | Brass CuZn39Pb3 2.0401 |
| Seal description: | Nitrite-butadiene rubber |
| Surface: | nickel plated |
| Material seal: | NBR |
| Weight in kg: | 0,203 |
| Self-venting coupling: | No |
| Safety locking system: | No |
| Single-hand operation: | Yes |
| Two-hand operation: | No |
| Ultra-FLO-valve: | Yes |
| Water-resistant: | No |
| Flat-sealing: | No |
| Suitable breath / respiratory protection: | No |
| Pressure eliminator: | No |
| Hydraulics: | No |
| Pneumatics: | Yes |
| Mould coupling: | No |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
