Fiber Gaskets for Quick Couplings: Material, Designs, and Application

Fiber gaskets are standard components in fluid connection technology for quick couplings and threaded connections. They typically consist of heat- and pressure-resistant aramid or cellulose fiber composite, are usually impregnated with binders, and provide reliable sealing against oils, air, water, and various industrial media. On this page, you will find fiber sealing rings for various thread sizes, suitable for common quick coupling series, with specific material and dimension specifications, as well as information on operating conditions, replacement, and installation.

Material Properties and Selection

Fiber gaskets are made from fibrous material that remains dimensionally stable and tear-resistant through impregnation with elasticizing resins or rubber compounds. Typical material variants include pure aramid fiber material for high temperatures and mechanical stress, as well as NBR- or FKM-coated variants to improve chemical resistance. Aramid fibers provide operational stability typically from -40 °C to +200 °C under static load; with special binders, short-term peaks of up to 250 °C are possible. NBR-coated fiber gaskets extend media resistance to mineral oils and hydraulic fluids, while FKM coatings are required when aggressive fuels or oils at high temperatures are expected.

Mechanically, fiber gaskets have high surface pressure and good resilience after compression. Advantages over pure elastomer seals include higher abrasion resistance in moving connections and better long-term stability at high pressures. Disadvantages include lower relaxation resistance in very soft applications and potential chemical influences with certain solvents.

Designs, Dimensions, and Thread Compatibility

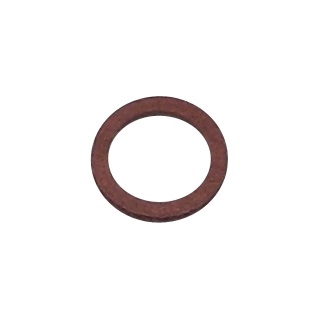

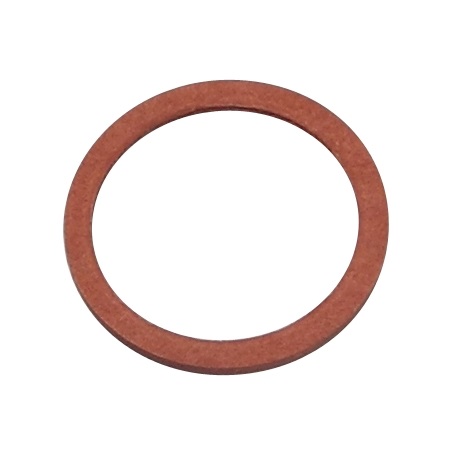

Standard fiber gaskets for quick couplings are manufactured as flat discs (sealing rings) with an inner hole to accommodate the thread. The dimensioning depends on the thread profile and seating surface; common types cover metric threads (M), BSPP/BSPT, and UN/UNF. For plug-in and quick couplings, specially circumferential sealing lips or conical outer diameters are often manufactured to achieve a redundant sealing effect when compressed during assembly.

On the product page, the respective inner and outer diameters, thickness, and associated thread sizes are specified. When replacing, exact conformity with the original sealing ring is crucial: deviations in outer diameter or thickness can lead to leaks or mechanical failure. For special cases, we also manufacture custom thicknesses or reinforced laminates, which are available upon request.

Mechanical and Thermal Load Capacity

The pressure resistance of fiber gaskets depends on the contact surface and degree of compression. In typical quick couplings, standardized fiber gaskets achieve sealing zones up to 30–40 bar under static load; reinforced versions or metal-reinforced laminate gaskets increase this limit. Thermally, fiber gaskets remain stable over a wide range; the combination with elastomer coatings defines the actual operating temperature. With recurring thermal loads, material fatigue must be considered, and uniform pre-tensioning ensured.

Media Resistance and Chemicals

The selection of the appropriate fiber material depends on the medium used. Uncoated fiber gaskets are universally applicable for water and air but are limited against strong solvents. NBR-coated variants are suitable for mineral oils, hydraulic fluids, and simple fuels. For ethanol/MTBE-based fuels or aggressive chemicals and high temperatures, FKM-coated or special PTFE-protected variants are recommended. Specific resistance data are media- and temperature-dependent; check compatibility data sheets before selection. Further technical information and material data can be found at technik.

Installation, Assembly, and Replacement Intervals

During installation, ensure clean seating surfaces, oil- and grease-free assembly, and uniform contact pressure. Fiber gaskets work optimally with a defined compression; excessive over-compression leads to gasket embrittlement, while insufficient compression leads to leaks. Recommended assembly practice: deburr seating surfaces, check the sealing ring, tighten evenly when screwing in, and retighten after initial operation to compensate for settling. Replacement intervals depend on temperature cycles, pressure, and media; in hydrodynamically demanding applications, visual and functional inspections are recommended in the maintenance plan, typically at least annually or every X operating hours, depending on the application.

Connection Details, Tolerances, and Quality Features

Essential test parameters for fiber gaskets are flatness, thickness tolerance, and concentricity. Tolerances are manufactured according to DIN/ISO specifications. For critical applications, gaskets with test certificates (material certificate, dimension measurement report) are available. When replacing, ensure that the inner diameters do not rest on the thread but directly on the seat. For conical connections, polished contact surfaces and, if necessary, a thin lubricating film dosage are recommended to avoid clamping.

Application Areas and Practical Examples

Fiber gaskets are used industrially in hydraulic systems, pneumatics, cooling systems, lubrication circuits, tank and pipeline connections, and in process plants. Typical application fields include energy technology, mechanical engineering, automotive prototype construction, and the manufacturing industry. The following examples describe the actual use and selection criteria in a practical way:

Practical Example 1: Hydraulic Quick Coupling in an Assembly Plant
A manufacturing cell uses multiple quick couplings for tool changes. In the pre-series, a leak occurred under cyclic load and 120 °C operating temperature. Solution: Replacement of standard rubber seals with aramid fiber sealing rings with FKM coating to increase temperature and media resistance. Result: Reduced maintenance intervals, no more leaks after 10,000 cycles.

Practical Example 2: Test Fixture with Corrosive Test Media
In a test chamber, aqueous salt solutions are used at elevated temperatures. Uncoated fiber gaskets showed swelling and loss of sealing effect. Solution: Use of PTFE-coated fiber gaskets with a reinforced aramid core. Recommendation: regular visual inspection and replacement after a defined number of test cycles to prevent corrosion spread.

Practical Example 3: Mobile Hydraulic Lines in the Construction Industry
Mobile equipment is exposed to dirt, abrasion, and temperature changes. Standard fiber gaskets recycle better than pure elastomer solutions; by using an abrasion-resistant aramid laminate with an NBR outer layer, the service life was increased. Installation note: Clean the sealing seat before installation, light lubrication of the thread to prevent chafing.

Procurement, Storage, and Documentation

Store fiber gaskets dry, protected from light, and at moderate temperatures to prevent aging. Recommended storage conditions: 5–25 °C, relative humidity <65%. Avoid prolonged UV exposure and contact with ozone sources. For deliveries, check the batch number and material certificates for safety-critical applications. For orders, use the filters for thread size, inner diameter, and material coating in our shop. Further application examples and technical details can be found under Anwendungsbeispiele.

Selection Criteria for Quick Decision

Make your selection based on the following key factors:

• Medium (water/air/oil/fuel/chemical), temperature range, operating pressure

Further criteria include thread size, seat tolerances, and expected cycle count. For special requirements, we offer material testing and technical advice. If in doubt, send us samples or precise operating data for technical review.

Scope of Delivery and Custom Options

Our standard deliveries include metric and imperial sealing rings in common thicknesses and diameters. Upon request, we manufacture special diameters, reinforced laminates, chemically resistant coatings, and complete sets for series couplings. For large projects, quantity conditions and customized test protocols are possible.

FAQ

1. How do I choose the right fiber gasket for my thread?

Choose the gasket according to the thread inner diameter, seating surface, and medium. Check temperature and pressure requirements as well as chemical compatibility; for hydraulics, use oils/NBR, for aggressive media, FKM or PTFE-coated variants. Exact dimensions and selection aids can be found in our product data sheets and technical information under technik.

2. What temperature and pressure ranges are realistic?

Typical fiber gaskets operate reliably in the range of -40 °C to +200 °C; coated variants extend chemical resistance. Pressure resistances are standard up to about 30–40 bar statically; reinforced laminate or metal-backed versions achieve higher values. The actual operating limit is media- and design-dependent.

3. When does a fiber gasket need to be replaced?

Replace gaskets when there is visible damage, hardening, swelling, or leaks. Set inspection intervals depending on temperature cycles and operating pressure; in highly dynamic systems, a visual inspection is recommended at least annually or after defined operating hours. Document the replacement with batch and material numbers for later traceability.
