Air motors 0,82 kW

To be able to use maku Industrie GmbH & Co. KG in full range, we recommend activating Javascript in your browser.

Air motors, reversible, speed under load 45 - 6.800 rpm, torque 1,2 - 174,0 Nm, start torque 1,7 - 261,0 Nm

Product name	Speed under load in rpm	Torque in Nm	Start torque in Nm	Idling speed rpm	Non-lubricated	Torque in Nm
MUD 82-45 Air motor	45	174	261	90	Yes	174
MUD 82-65 Air motor	65	120	180	130	Yes	120
MUD 82-100 Air motor	100	78	117	200	Yes	78
MUD 82-200 Air motor	200	39	59	400	Yes	39
MUD 82-260 Air motor	260	30	45	520	Yes	30
MUD 82-425 Air motor	425	19	27	850	Yes	19
MUD 82-900 Air motor	900	8,7	13	1800	Yes	8,7
MUD 82-1200 Air motor	1200	6,5	9,5	2400	Yes	6,5
MUD 82-2000 Air motor	2000	3,9	5,8	4000	Yes	3,9
MUD 82-6800 Air motor	6800	1,2	1,7	13600	Yes	1,2

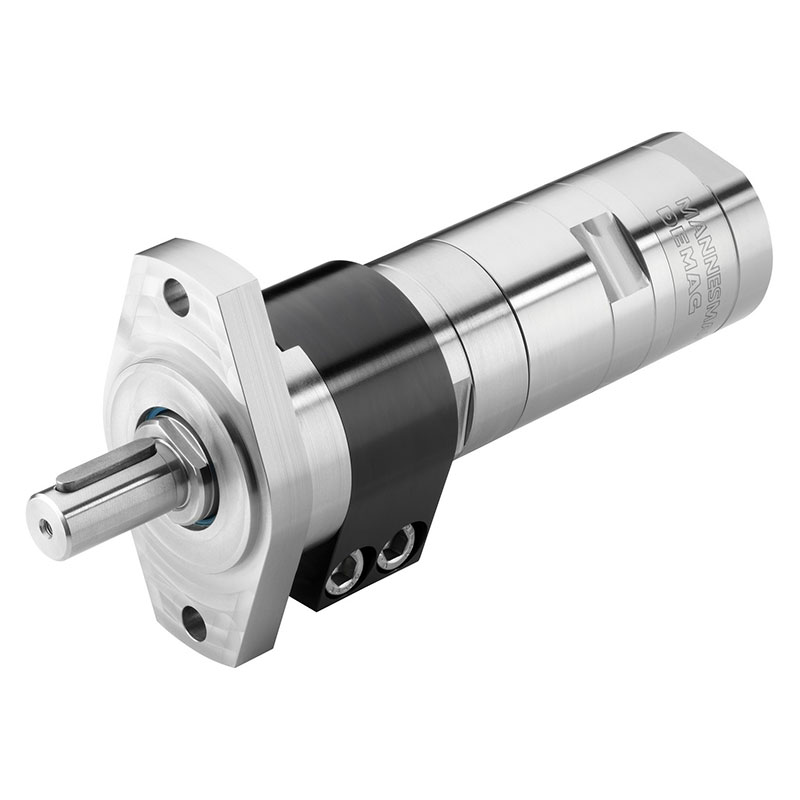

MUD 82-200 F100 Air motor	200	39	59	400	Yes	39
MUD 82-260 F100 Air motor	260	30	45	520	Yes	30
MUD 82-425 F100 Air motor	425	19	27	850	Yes	19
MUD 82-900 F100 Air motor	900	8,7	13	1800	Yes	8,7
MUD 82-1200 F100 Air motor	1200	6,5	9,5	2400	Yes	6,5
MUD 82-2000 F100 Air motor	2000	3,9	5,8	4000	Yes	3,9
MUD 82-6800 F100 Air motor	6800	1,2	1,7	13600	Yes	1,2

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in... more

Close menu

Product information "Air motors 0,82 kW"

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section.
Reversible motors can be used rotating clockwise and anti clockwise. It is very important that if the air motor is pressurized with connection turning the air motor left, the connection turning the air motor right is vented properly (and vize versa).
