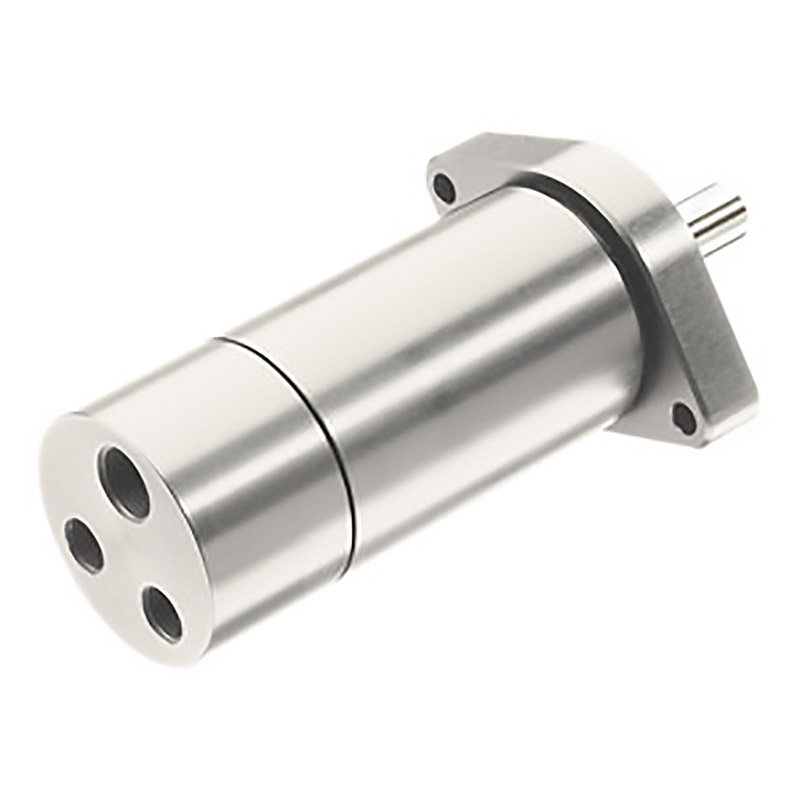

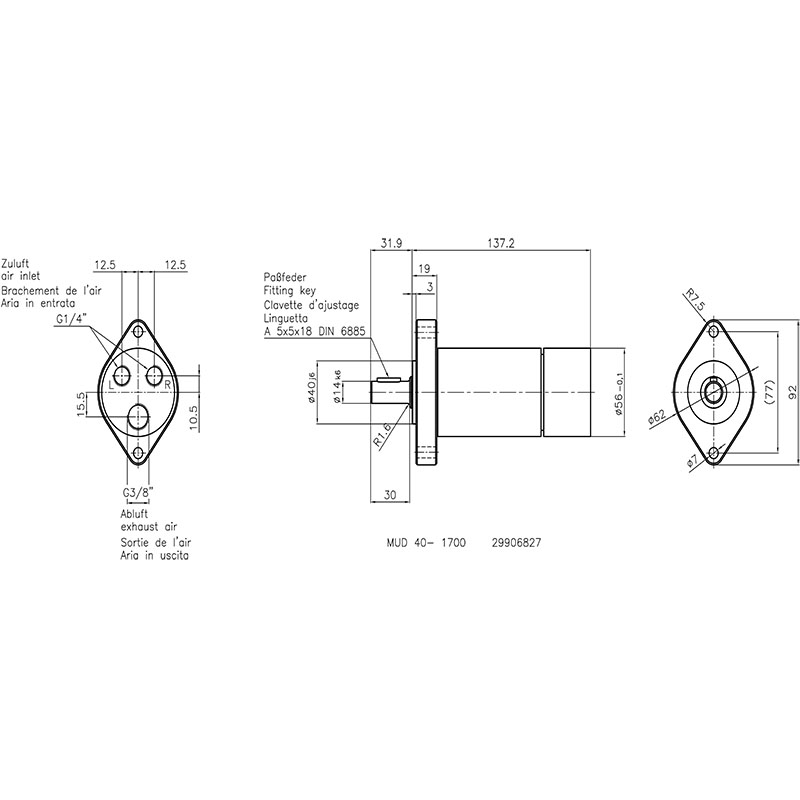

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section. Reversible motors can be used rotating clockwise and anti clockwise. It is very important that if the air motor is pressurized with connection turning the air motor left, the connection turning the air motor right is vented properly (and vize versa). All data related to 6.3 bar working pressure.
Resistant to stalling:
Yes
Item number:
29906827
ATEX available:
Yes
Brake:
No
Torque in Nm:
2,8
Maximum torque in Nm:
5,6
Direction of rotation:
Reversible
Weight in kg:
1,7
Torque in Nm:
2,8
Speed under load in rpm:
1700
Idling speed rpm:
3400
Power in kW:
0,5
Air consumption in l/s:
12,6
Material:
Stainless steel
Non-lubricated:
No
Start torque in Nm:
4,2
Shaft load Fa max. in N:
1500
Shaft load Fr max. in N:
2100
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
