Air motors 0,23 kW with integrated brake

Air motors with integrated brake, oil-free, speed under load 7 - 7.000 rpm, torque 0,31 - 313,0 Nm, holding load of brake 0,46 - 469,0 Nm

Price on request

Available, delivery time:

PDF-Datasheet

Product name	Idling speed rpm	Torque in Nm	Speed under load in rpm	Non-lubricated	Start torque in Nm
MUB 23-7 Air motor	14	313	7	Yes	469
MUB 23-10 Air motor	20	220	10	Yes	330
MUB 23-15 Air motor	30	147	15	Yes	220
MUB 23-20 Air motor	40	110	20	Yes	165
MUB 23-25 Air motor	50	88	25	Yes	132
MUB 23-30 Air motor	60	74	30	Yes	110
MUB 23-40 Air motor	80	55	40	Yes	83
MUB 23-55 Air motor	110	40	55	Yes	60
MUB 23-70 Air motor	140	32	70	Yes	47
MUB 23-120 Air motor	240	18	120	Yes	27
MUB 23-190 Air motor	380	12	190	Yes	17
MUB 23-240 Air motor	480	9,2	240	Yes	14
MUB 23-435 Air motor	870	5	435	Yes	7,5
MUB 23-880 Air motor	1760	2,5	880	Yes	3,8
MUB 23-1090 Air motor	2180	2	1090	Yes	3
MUB 23-1960 Air motor	3920	1,1	1960	Yes	1,7
MUB 23-7000 Air motor	14000	0,31	7000	Yes	0,46

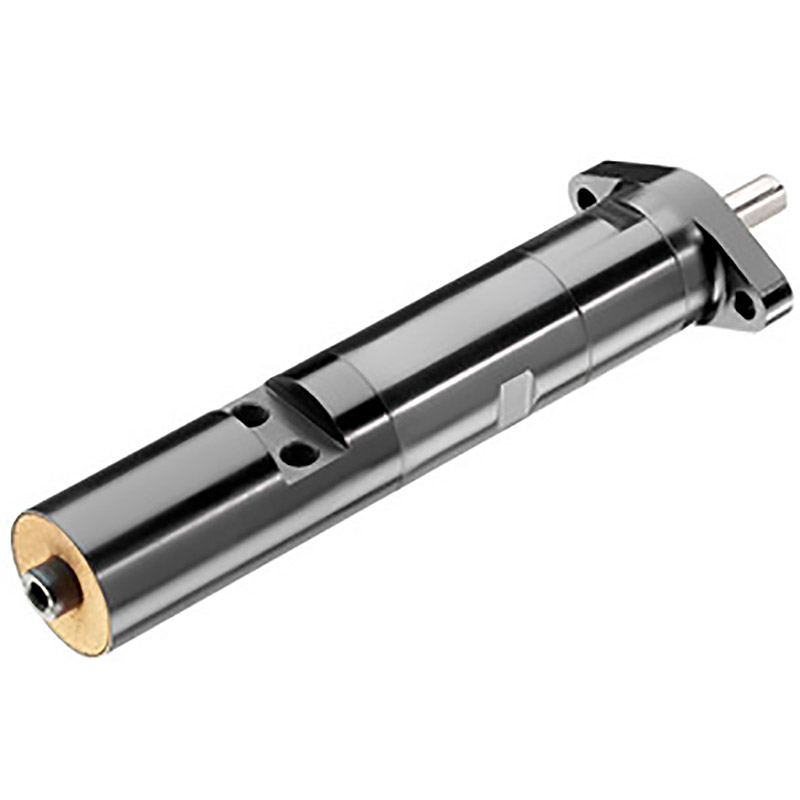

MUB 23-240 F54 Air motor	480	9,2	240	Yes	14
MUB 23-435 F54 Air motor	870	5	435	Yes	7,5
MUB 23-880 F54 Air motor	1760	2,5	880	Yes	3,8
MUB 23-7000 F54 Air motor	14000	0,31	7000	Yes	0,46
MUB 23-25 F100 Air motor	50	88	25	Yes	132
MUB 23-40 F100 Air motor	80	55	40	Yes	83
MUB 23-55 F100 Air motor	110	40	55	Yes	60

Product information "Air motors 0,23 kW with integrated brake"

The model MUB 23 is equipped with a brake actuated by force. This brake is controlled directly with the ingoing air line. No further guiding hoses are necessary. The maximum brake force is equal to the starting torque.
