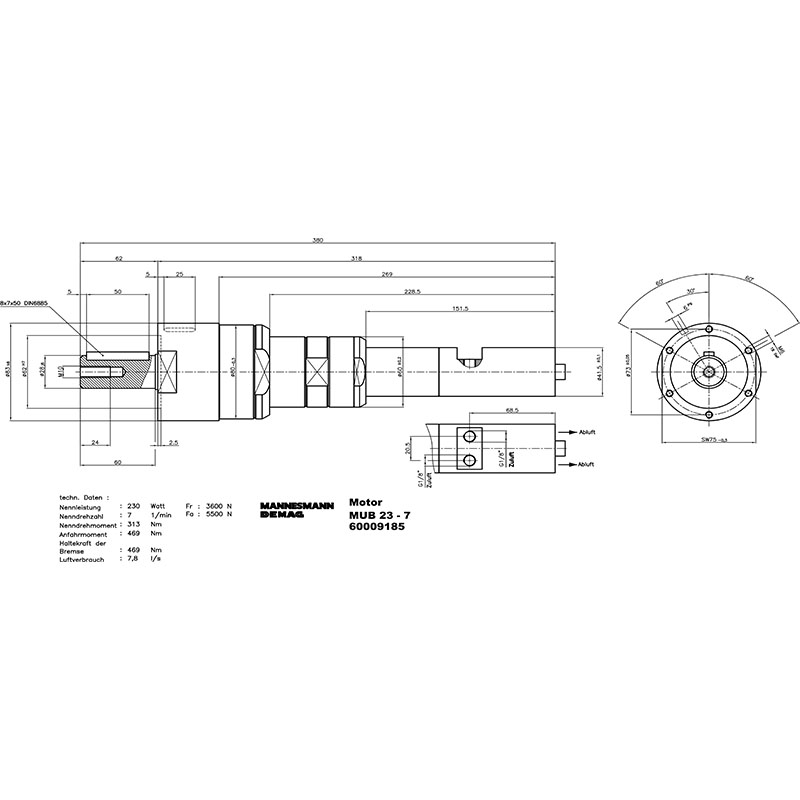

MUB 23-7 Air motor

Air motor, reversible, speed under load 7 rpm, torque 313 Nm, holding load of brake 469 Nm

Price on request

Available, delivery time:

Product information "MUB 23-7 Air motor"

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section. The model MUB 23 is equipped with a brake actuated by force. This brake is controlled directly with the ingoing air line. No further guiding hoses are necessary. The maximum brake force is equal to the starting torque. All data related to 6.3 bar working pressure.

Resistant to stalling:	Yes
Item number:	60009187
ATEX available:	Yes
Brake:	Yes
Torque in Nm:	313
Maximum torque in Nm:	626
Direction of rotation:	Reversible
Weight in kg:	5,6
Holding load of brake:	469
Torque in Nm:	313
Speed under load in rpm:	7
Idling speed rpm:	14
Power in kW:	0,23
Air consumption in l/s:	7,8
Material:	Steel
Non-lubricated:	Yes
Start torque in Nm:	469
Shaft load Fa max. in N:	2800
Shaft load Fr max. in N:	5600

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
