Air motors 0,62 kW

To be able to use maku Industrie GmbH & Co. KG in full range, we recommend activating Javascript in your browser.

Air motors, rotating clockwise, speed under load 16 - 11.000 rpm, torque 0,54 - 370,0 Nm, start torque 0,81 - 555,0 Nm

Product name	Speed under load in rpm	Torque in Nm	Start torque in Nm	Idling speed rpm	Non-lubricated	Torque in Nm
MRD 55-16 Air motor	16	370	555	32	No	370
MRD 55-25 Air motor	25	236	354	50	No	236
MRD 55-50 Air motor	50	118	177	100	No	118
MRD 55-75 Air motor	75	79	119	150	No	79
MRD 55-105 Air motor	105	56	84	210	No	56
MRD 55-250 Air motor	250	24	36	500	No	24
MRD 55-300 Air motor	300	20	30	600	No	20
MRD 55-400 Air motor	400	15	22	800	No	15
MRD 55-500 Air motor	500	12	18	1000	No	12
MRD 55-650 Air motor	650	9,1	14	1300	No	9,1
MRD 55-1800 Air motor	1800	3,3	4,9	3600	No	3,3
MRD 55-2200 Air motor	2200	2,7	4	4400	No	2,7
MRD 55-2800 Air motor	2800	2,1	3,2	5600	No	2,1
MRD 55-11000 Air motor	11000	0,54	0,81	22000	No	0,54
MRD 55-250 F77 Air motor	250	24	36	500	No	24
MRD 55-300 F77 Air motor	300	20	30	600	No	20
MRD 55-400 F77 Air motor	400	15	22	800	No	15
MRD 55-500 F77 Air motor	500	12	18	1000	No	12
MRD 55-650 F77 Air motor	650	9,1	14	1300	No	9,1
MRD 55-1800 F77 Air motor	1800	3,3	4,9	3600	No	3,3
MRD 55-2200 F77 Air motor	2200	2,7	4	4400	No	2,7
MRD 55-2800 F77 Air motor	2800	2,1	3,2	5600	No	2,1
MRD 55-11000 F77 Air motor	11000	0,54	0,81	22000	No	0,54

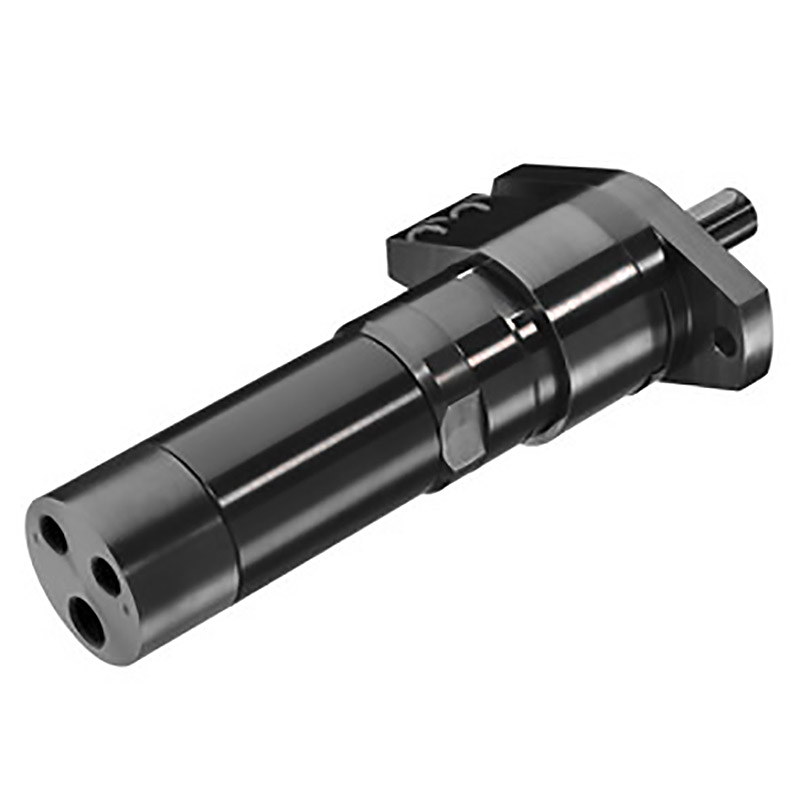

MRD 55-50 F100 Air motor	50	118	177	100	No	118
MRD 55-75 F100 Air motor	75	79	119	150	No	79
MRD 55-105 F100 Air motor	105	56	84	210	No	56

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in... more

Close menu

Product information "Air motors 0,62 kW"

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section.
