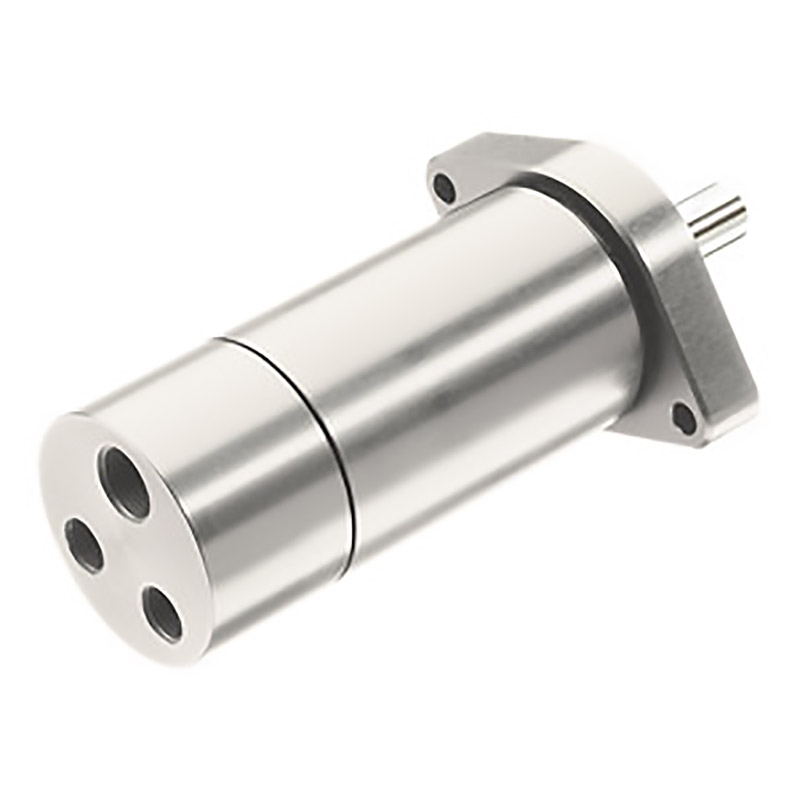

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section. All data related to 6.3 bar working pressure.
Resistant to stalling:
Yes
Item number:
29906357
ATEX available:
Yes
Brake:
No
Torque in Nm:
15
Maximum torque in Nm:
30
Direction of rotation:
Rotating clockwise
Weight in kg:
1,8
Torque in Nm:
15
Speed under load in rpm:
400
Idling speed rpm:
800
Power in kW:
0,62
Air consumption in l/s:
14,2
Material:
Stainless steel
Non-lubricated:
No
Start torque in Nm:
22
Shaft load Fa max. in N:
1500
Shaft load Fr max. in N:
2100
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
