Air motors 0,38 kW

Air motors, rotating clockwise, speed under load 10 - 9.400 rpm, torque 0,40 - 362,0 Nm, start torque 0,60 - 543,0 Nm

Price on request

Available, delivery time:

Product name	Idling speed rpm	Torque in Nm	Speed under load in rpm	Non-lubricated	Start torque in Nm
MRD 38-10 Air motor	20	362	10	Yes	543
MRD 38-15 Air motor	30	241	15	Yes	362
MRD 38-20 Air motor	40	181	20	Yes	272
MRD 38-25 Air motor	50	145	25	Yes	218
MRD 38-33 Air motor	66	110	33	Yes	165
MRD 38-40 Air motor	80	90	40	Yes	135
MRD 38-55 Air motor	110	66	55	Yes	99
MRD 38-70 Air motor	140	52	70	Yes	77
MRD 38-100 Air motor	200	36	100	Yes	54
MRD 38-160 Air motor	320	23	160	Yes	35
MRD 38-260 Air motor	520	14	260	Yes	21
MRD 38-320 Air motor	640	12	320	Yes	17
MRD 38-580 Air motor	1160	6,4	580	Yes	9,6
MRD 38-1180 Air motor	2360	3,1	1180	Yes	4,7
MRD 38-1460 Air motor	2920	2,6	1460	Yes	3,8
MRD 38-2600 Air motor	5200	1,4	2600	Yes	2,2
MRD 38-9400 Air motor	18800	0,4	9400	Yes	0,6

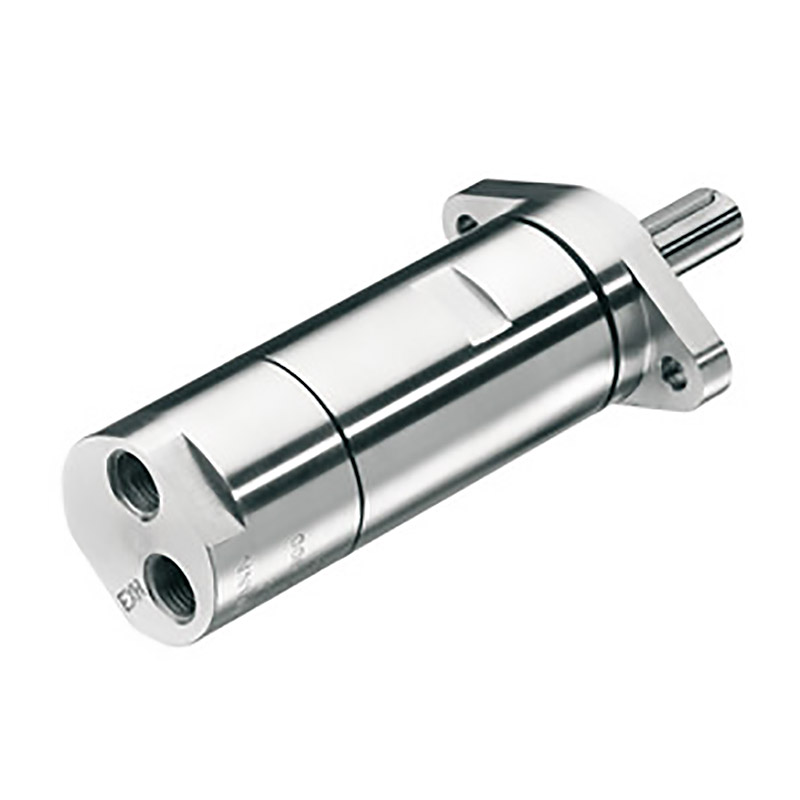

MRD 38-160 F54 Air motor	320	23	160	Yes	35
MRD 38-260 F54 Air motor	520	14	260	Yes	21
MRD 38-320 F54 Air motor	640	12	320	Yes	17
MRD 38-580 F54 Air motor	1160	6,4	580	Yes	9,6
MRD 38-1180 F54 Air motor	2360	3,1	1180	Yes	4,7
MRD 38-1460 F54 Air motor	2920	2,6	1460	Yes	3,8
MRD 38-2600 F54 Air motor	5200	1,4	2600	Yes	2,2
MRD 38-9400 F54 Air motor	18800	0,4	9400	Yes	0,6
MLD 38-320 F70 Air motor	640	12	320	Yes	17

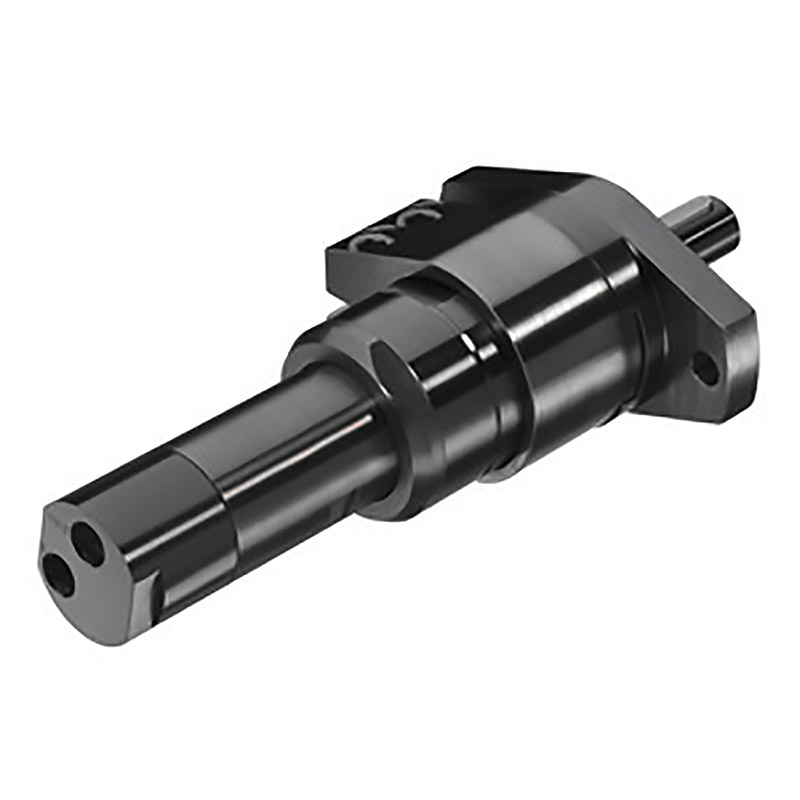

MRD 38-33 F100 Air motor	66	110	33	Yes	165
MRD 38-40 F100 Air motor	80	90	40	Yes	135
MRD 38-55 F100 Air motor	110	66	55	Yes	99
MRD 38-70 F100 Air motor	140	52	70	Yes	77
MRD 38-100 F100 Air motor	200	36	100	Yes	54

Product information "Air motors 0,38 kW"

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section.
