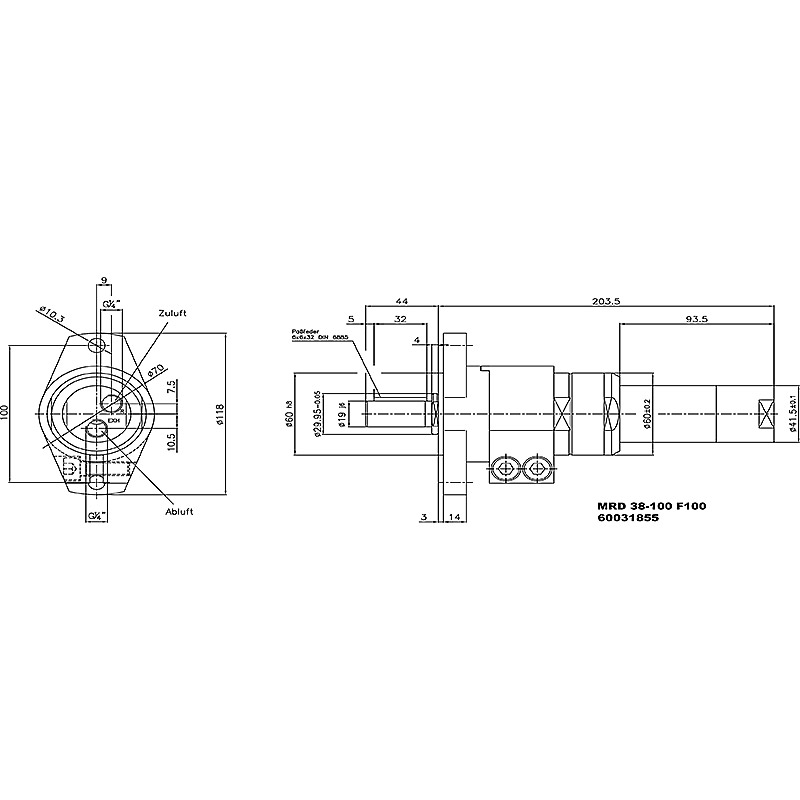

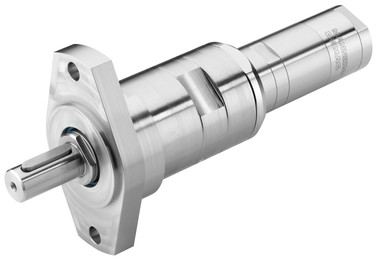

MRD 38-100 F100 Air motor

Air motor, rotating clockwise, speed under load 100 rpm, torque 36 Nm, start torque 54 Nm

Price on request

Available in 20 days, transport time 3-4 working days

Product information "MRD 38-100 F100 Air motor"

The robustness distinguishes the air motor as unproblematic drive engine. It is well utilised in industrial sectors where accuracy and longevity are required. Its high starting torque and the wide torque range qualifies it for many needs in the drive section. All data related to 6.3 bar working pressure.

Resistant to stalling:	Yes
Item number:	60031857
ATEX available:	Yes
Brake:	No
Torque in Nm:	36
Maximum torque in Nm:	72
Direction of rotation:	Rotating clockwise
Weight in kg:	2,6
Torque in Nm:	36
Speed under load in rpm:	100
Idling speed rpm:	200
Power in kW:	0,38
Air consumption in l/s:	8,3
Material:	Stainless steel
Non-lubricated:	Yes
Start torque in Nm:	54
Shaft load Fa max. in N:	1800
Shaft load Fr max. in N:	3900

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
