Product information "Spring balancer 77001300"

Spring balancer for lightweight and hand-operated tools that have to be kept ready in a predetermined position. High stability and quality.The casing is made of extremely shockproof special plastic, red-orange.The cable drum is made of abrasion-resistant plastic.High-strength steel cable with elastic cable stop buffer and lightweight carabiner for hanging the load.High-strength special mainspring.Easy load setting protected against operating error.Load mounting with secure carabiner.Hanging with screwing carabiner.Longer cables available on demand.
Fall protection: Existing, according to DIN 15112
Locking: No
Suspension: Screwing carabiner
Spring fracture protection: No
Weight in kg: 0,4
Material casing: Shockproof special plastic
Cable stop: Yes, shock absorbing and adjustable
Series: 7200
Series long: 7200
Load attachment: Carabiner
Payload range in kg: 0 - 0,5
Load setting: Easy setting - protected against operating error
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

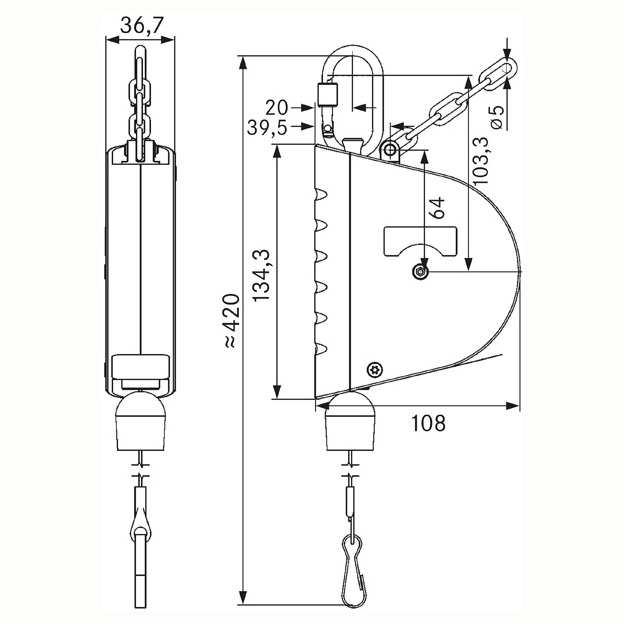

Technische Zeichnung 77001302
Cable length in m: 1,6
