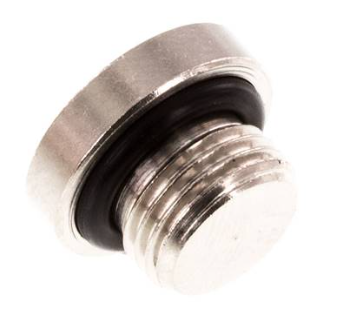

Product information "MA-VZ10N Blanking plug"

Blanking plug - brass nickel plated - G 1/8
Seal: NBR
Working pressure: 0 - 16 bar
Weight in kg: 0,0053
Material: Brass nickel plated
RoHS compliant: Yes
Working temperature: -25°C to +100°C
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.


VZ13
Connection 1: Male thread G 1/8"
Connection 2: Male thread G 1/8"
Connection A: G 1/8
D mm: 14
L1 mm: 6
SW mm: 5
L mm: 9
