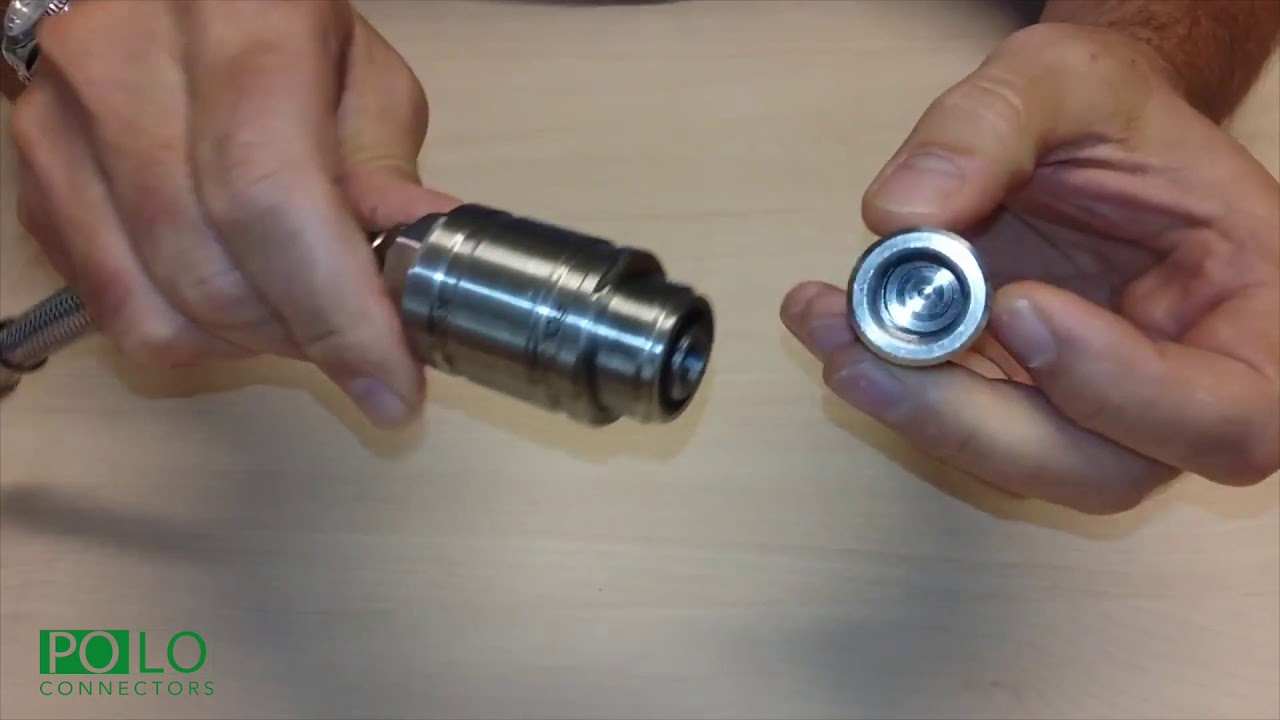

• Quick connector for female threads and shaped elements
• Push-pull hand actuation
• Additional safety system against inadvertent disconnection
• Free flow
• Stainless steel
• Working pressure: from 0 up to 350 bar
• Push-pull hand actuation
• Additional safety system against inadvertent disconnection
• Free flow
• Stainless steel
• Working pressure: from 0 up to 350 bar
| Maximum working pressure in bar: | 350 |
| Shut-Off: | Quick coupling Straight-Through |
| Connection description: | for 1" female thread |
| Connection type: | for 1" female thread |
| Material: | Stainless steel |
| Weight in kg: | 0,7 |
| Self-venting coupling: | No |
| Safety locking system: | Yes |
| Two-hand operation: | No |
| Ball locking: | No |
| Pin lock: | No |
| Vacuum suitable: | Yes |
| Water-resistant: | Yes |
| Flat-sealing: | No |
| Hydraulics: | Yes |
| Pneumatics: | No |
| Standard product: | Yes |
| Mould coupling: | No |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
