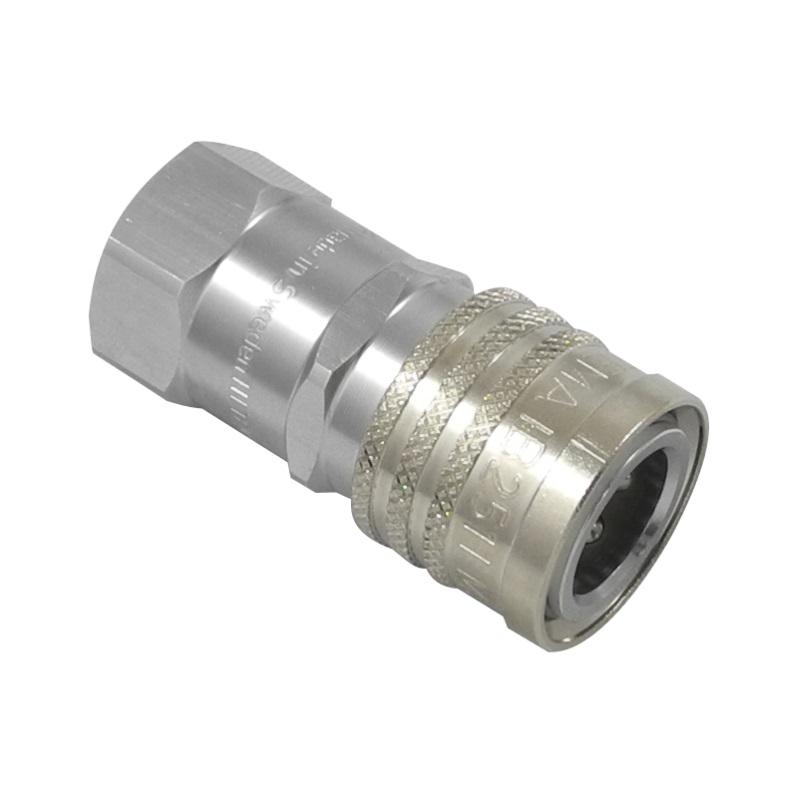

The Tema IB series plug profiles conform to IS0 Standard 7241-1 series B and are compatible with other series complying with the same standard. To optimize performance and corrosion resisitance the female is made from brass and the male hardend steel.
| Series: | IB |
| Valve: | with |
| Seal: | NBR |
| Series long: | IB3800 |
| Bore in mm: | 10 |
| Bore area in mm²: | 78 |
| Size in general: | 3/8" |
| Advantages: | ISO-NormseriesB |
| Coupled working pressure in bar: | 320 |
| Working temperature: | -30°C up to +100°C (NBR) -25°C up to +200°C (FKM) depending on the medium. |
| Shut-Off: | Plug Double Shut-Off |
| Connection: | Female thread 3/8" |
| Connection type: | Female thread |
| Material: | Steel |
| Surface: | zinc plated, passivated, sealed |
| Material valve body: | steel hardened |
| Material valve: | Brass |
| Material valve holder: | Zinc cast |
| Material spring snap ring: | 1.4310 |
| Weight in kg: | 0,053 |
| Safety locking system: | No |
| Single-hand operation: | No |
| Two-hand operation: | Yes |
| Ball locking: | Yes |
| Vacuum suitable: | No |
| Flat-sealing: | No |
| Pressure eliminator: | No |
| Hydraulics: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
