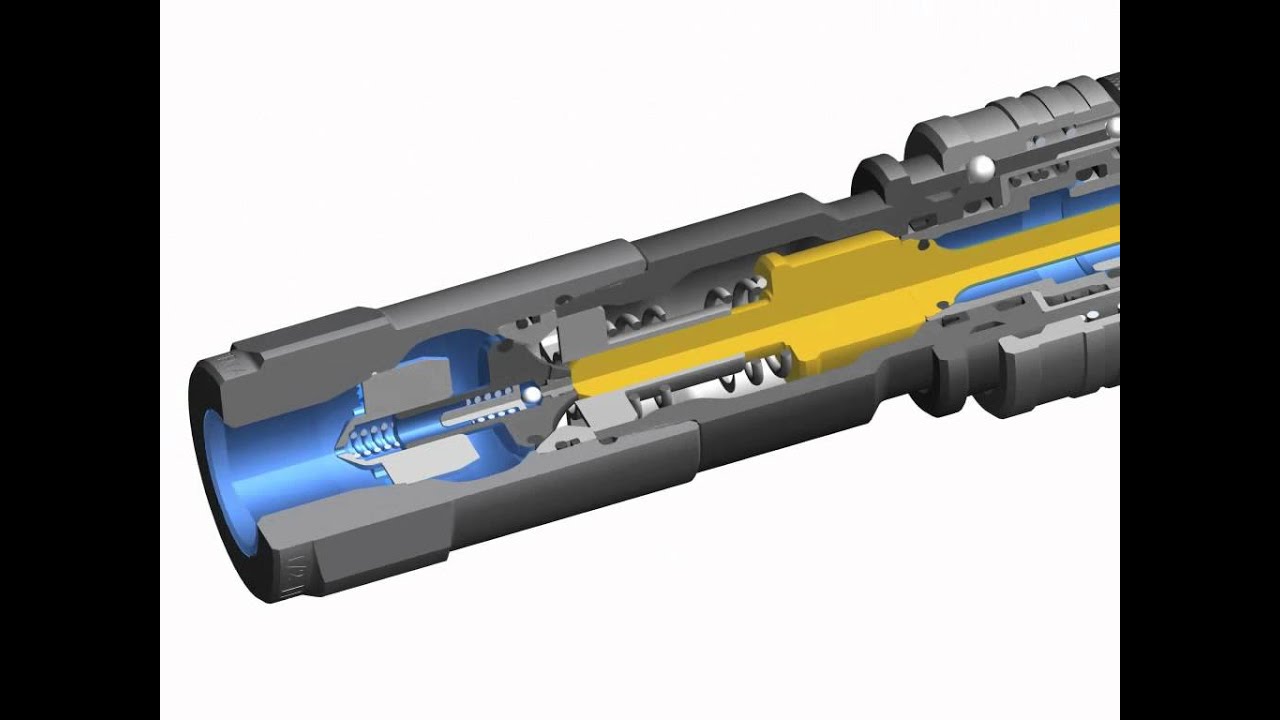

The coupling system of the FF series has double shut-off, dry break and single-handed operation. During disconnection there is no oil loss, and during coupling there is no inclusion of air into the system. Connected length in total FF5010 C + FF5020 C = 144 mm FF5010 C + FF5021 C = 179 mm
| Series: | FF |
| Valve: | with |
| Seal: | FKM |
| Series long: | FF5000 |
| Bore in mm: | 13 |
| Bore area in mm²: | 133 |
| Size in general: | 1/2" |

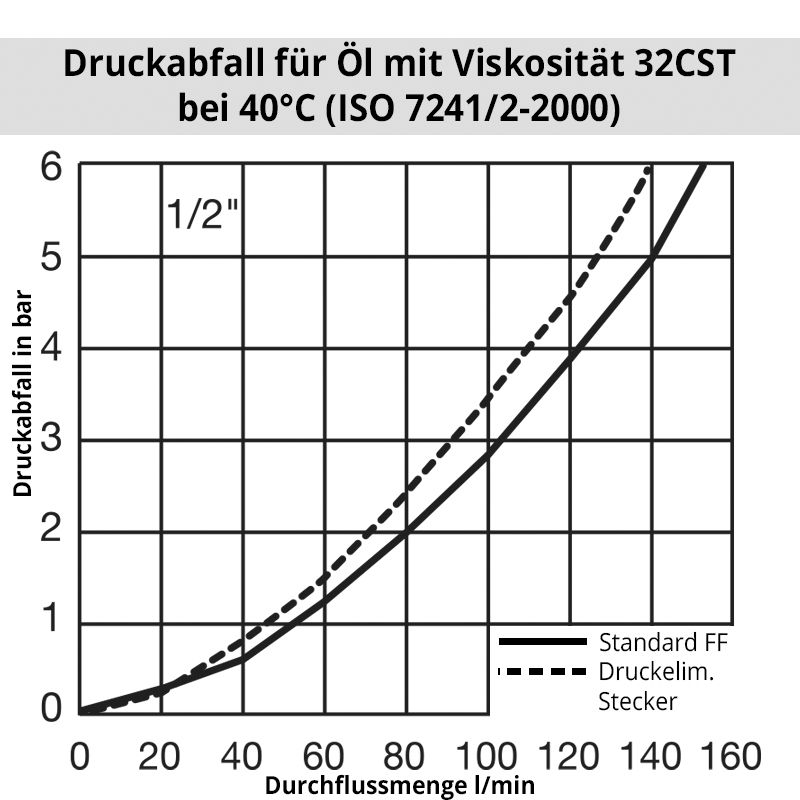

| Advantages: | - Dry break quick connect coupling. - With minimum pressure drop. - Single-handed operation. - No oil loss during disconnection. - A safety closing ring prevents unintentional disconnection. - Twice as safe through double sealing. - Also available with pressure eliminator, i.e. connection is possible under static/residual pressure up to working pressure. |
| Coupled working pressure in bar: | 450 |
| Working temperature: | -20°C up to +100°C (NBR) -25°C up to +200°C (FKM) depending on the medium. |
| Shut-Off: | Quick coupling Double Shut-Off |
| Connection: | Female thread 3/4" |
| Connection type: | Female thread |
| Material: | Steel |
| Surface: | nitrocarburizing |
| Material valve body: | steel, nitrocarburizing |
| Material sleeve: | Steel hardened, zinc-plated, passivated, sealed |
| Material locking collar: | Messing, Zink-Eisen beschichtet, schwarz passiviert, versiegelt |
| Material valve: | Steel hardened, zinc-plated, passivated, sealed |
| Material valve holder: | Steel, yellow zinc-plated, sealed |
| Material spring snap ring: | 1.4310 |
| Material balls/pins: | 1.3541 |
| Weight in kg: | 0,58 |
| Safety locking system: | Yes |
| Single-hand operation: | Yes |
| Two-hand operation: | No |
| Ball locking: | Yes |
| Vacuum suitable: | No |
| Flat-sealing: | No |
| Pressure eliminator: | No |
| Hydraulics: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
