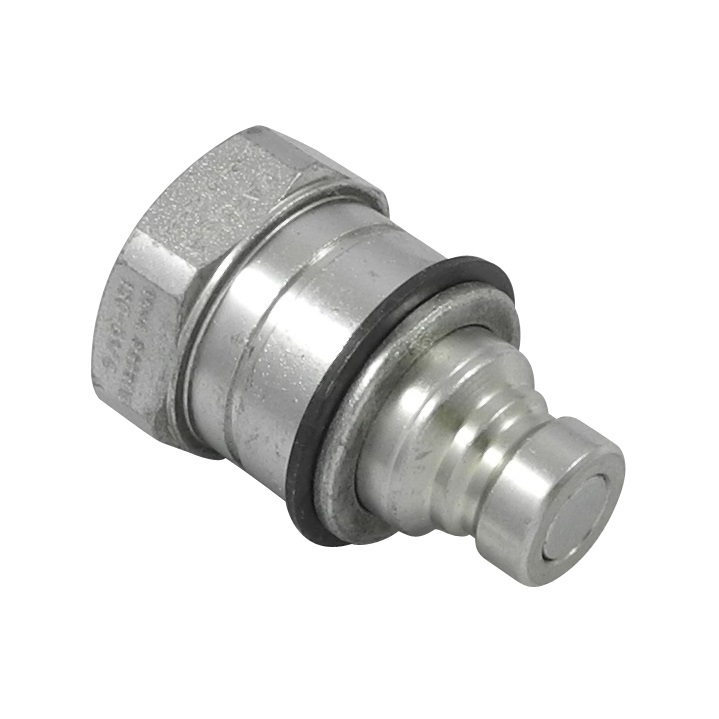

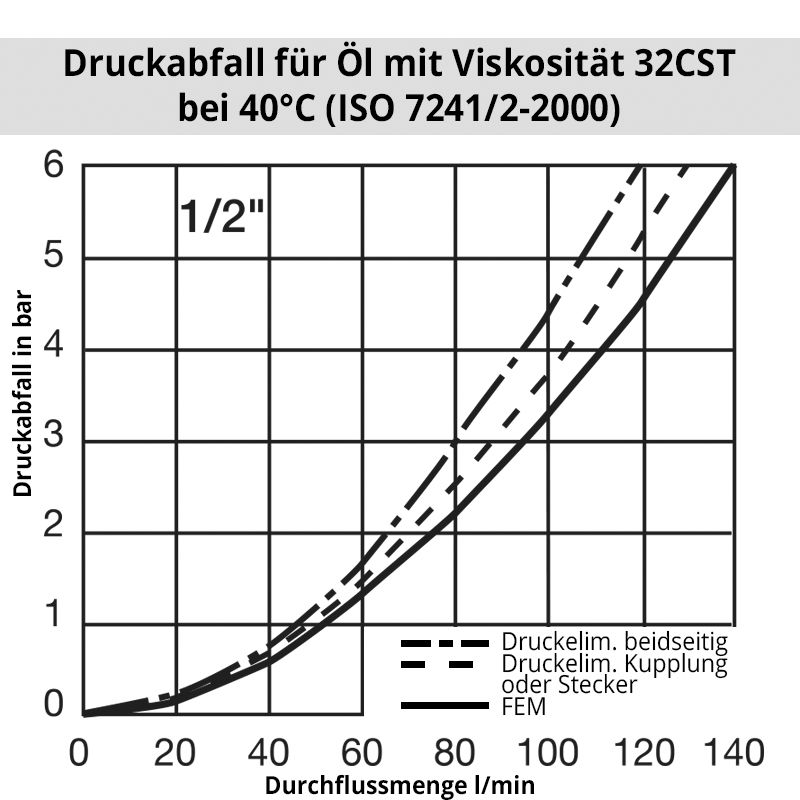

The FEM, FEC and IF series plug profile are produced according to ISO Standard 16028 and are compatible with other series complying with the same standard. These couplings offer a leckage free disconnection – mini-mal oil loss during uncoupling. Thanks to the valve design, the coupling has a minimum pressure drop, and thus achieves maximum cost-effectiveness. Exists in standard version (steel) and stainless steel.
| Series: | FEM/IF |
| Valve: | with |
| Seal: | NBR |
| Old order number: | IF5010-75E |
| Series long: | IF5000 |
| Bore in mm: | 12,5 |
| Bore area in mm²: | 122 |
| Size in general: | 1/2" |
| Advantages: | Can be operated with use of one hand- Safety locking feature as standard to prevent unintentional uncoupling. |
| Additional information: | Installation variant |
| Coupled working pressure in bar: | 250 |
| Working temperature: | -30°C up to +100°C (NBR) -25°C up to +200°C (FKM) depending on the medium. |
| Shut-Off: | Quick coupling Double Shut-Off |
| Connection: | Female thread 3/4" |
| Connection type: | Female thread |
| Material: | Steel |
| Surface: | zinc plated, passivated, sealed |
| Material valve body: | Steel |
| Material sleeve: | Steel, zinc-plated, passivated, sealed |
| Material valve: | Steel, zinc-plated, passivated, sealed |
| Material valve holder: | Steel, zinc-plated, passivated |
| Material spring snap ring: | 1.4310 |
| Material balls/pins: | 1.3541 |
| Safety locking system: | Yes |
| Single-hand operation: | Yes |
| Two-hand operation: | No |
| Ball locking: | Yes |
| Vacuum suitable: | No |
| Flat-sealing: | No |
| Pressure eliminator: | No |
| Hydraulics: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
