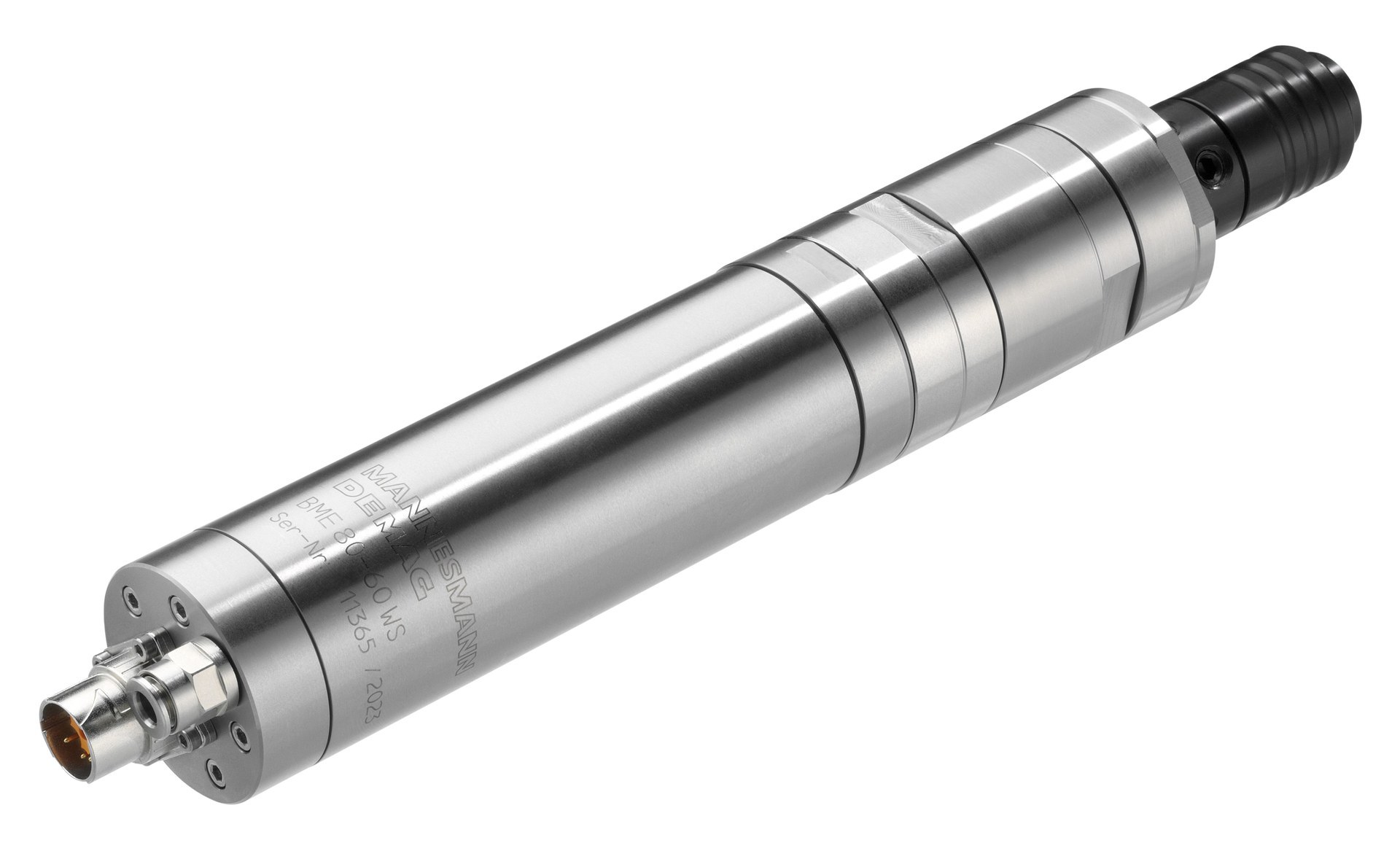

Product information "BME 80-4500 WS Electrical brushing spindle"

  • Constant high torque across the entire flexibly adjustable speed range.
  • Uniform power during operation ensures consistently high surface quality
  • Low energy consumption with high efficiency
  • Very compact design and flexible use of the spindle due to deliberate separation between tool and control system
  • Suitable frequency converter
  • Quiet drive ensures low noise level
  • Quick-change chuck
  • Low maintenance requirements
Weight in kg: 2,4
Material: Stainless steel
Drive: Electrical
Item number: 60076035
Maximum torque in Nm: 1,77
Torque S1 in Nm: 1,14
Maximum speed in 1/min: 4500
Minimum speed in 1/min: 700
ER collet in mm: 16
Frequency in Hz: 100 - 667
Power max. in kW: 0,69
Power S1 in kW: 0,52
Type of motor: 3 ~ selsyn motor (PMSM)
Motor protection: PTC
Protection: IP 55
Spanndurchmesser in mm: 45
Voltage: 33 V DC
Sealing air: 40 - 50
Plug type: Type 915
Current max. in A: 18
Current S1 in A: 13
Inverter recommendation: MD Drive
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

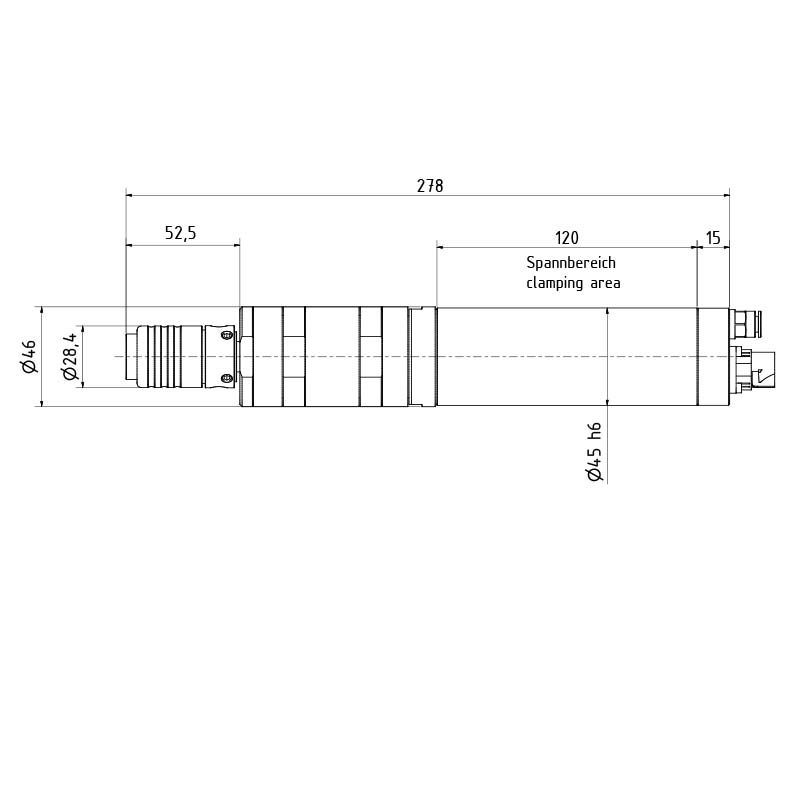

Technische Zeichnung

Electric spindles and brush motors from Mannesmann Demag

Electrifying! The world's first from Swabia.
