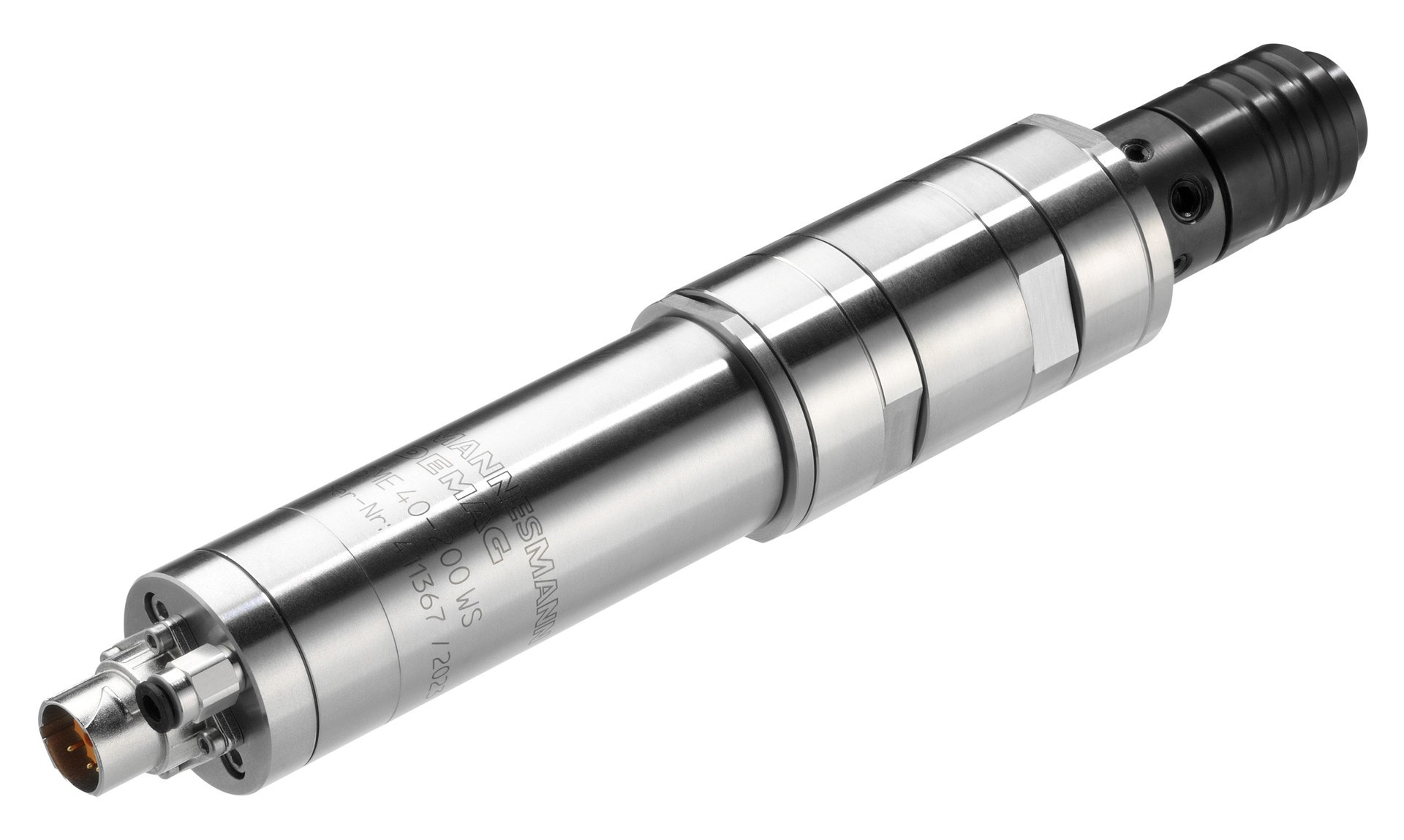

BME 40-6500 WS Electrical brushing spindle
Price on request
Available, delivery time:
Product information "BME 40-6500 WS Electrical brushing spindle"
- Constant high torque across the entire flexibly adjustable speed range.
- Uniform power during operation ensures consistently high surface quality
- Low energy consumption with high efficiency
- Very compact design and flexible use of the spindle due to deliberate separation between tool and control system
- Suitable frequency converter
- Quiet drive ensures low noise level
- Quick-change chuck
- Low maintenance requirements
| Weight in kg: | 1,6 |
|---|---|
| Material: | Stainless steel |
| Drive: | Electrical |
| Item number: | 60076025 |
| Maximum torque in Nm: | 1,23 |
| Torque S1 in Nm: | 0,67 |
| Maximum speed in 1/min: | 6000 |
| Minimum speed in 1/min: | 700 |
| ER collet in mm: | 16 |
| Frequency in Hz: | 100 - 1000 |
| Power max. in kW: | 0,5 |
| Power S1 in kW: | 0,37 |
| Type of motor: | 3 ~ selsyn motor (PMSM) |
| Motor protection: | PTC |
| Protection: | IP 55 |
| Spanndurchmesser in mm: | 36 |
| Voltage: | 33 V DC |
| Sealing air: | 40 - 50 |
| Plug type: | Type 915 |
| Current max. in A: | 18 |
| Current S1 in A: | 10 |
| Inverter recommendation: | MD Drive |
