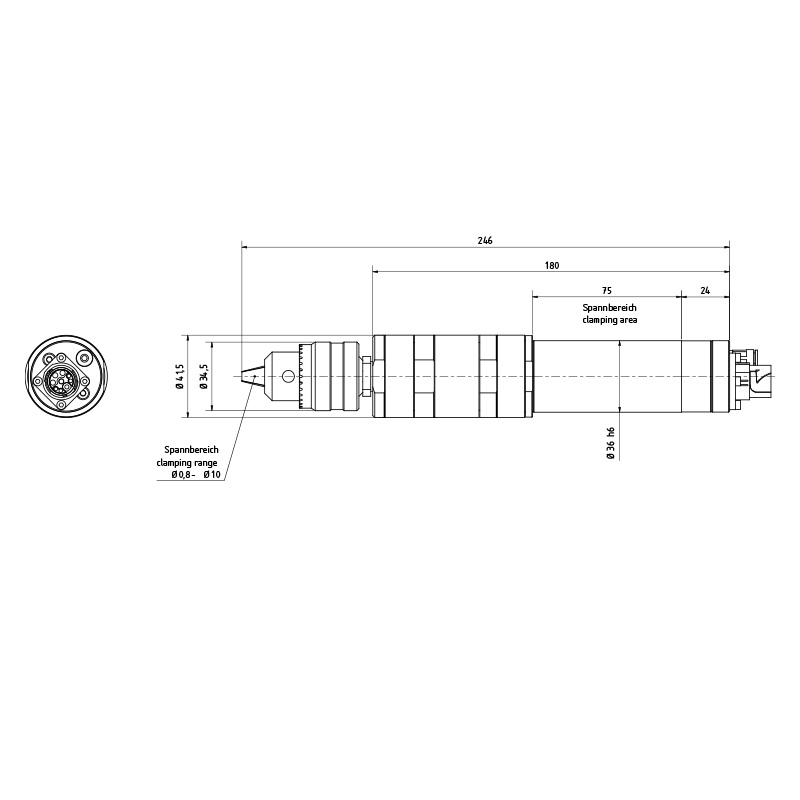

Product information "BME 40-6500 B Electrical brushing spindle"

  • Constant high torque across the entire flexibly adjustable speed range.
  • Uniform power during operation ensures consistently high surface quality
  • Low energy consumption with high efficiency
  • Very compact design and flexible use of the spindle due to deliberate separation between tool and control system
  • Suitable frequency converter
  • Quiet drive ensures low noise level
  • Quick-change chuck
  • Low maintenance requirements
Direction of rotation: Rotating clockwise
Weight in kg: 1,47
Material: Stainless steel
Drive: Electrical
Maximum torque in Nm: 1,23
Torque S1 in Nm: 0,67
Minimum speed in 1/min: 700
Frequency in Hz: 100 - 1000
Power max. in kW: 0,5
Power S1 in kW: 0,37
Type of motor: 3 ~ selsyn motor (PMSM)
Motor protection: PTC
Protection: IP 55
Spanndurchmesser in mm: 36
Voltage: 33 V DC
Sealing air: 40 - 50
Plug type: Type 915
Current max. in A: 18
Current S1 in A: 10
Inverter recommendation: MD Drive
Drill chuck clamping range: 0,8 - 10
Maximum speed in 1/min: 6500
Output: Drill chuck
Item number: 60082085
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
