Series: | C9000 |
Flow rate in l/min: | 1.250 (air) |
Material connection: | Brass nickel plated |
Series long: | C9000 |
Compatibility: | ARO profile with self-venting |
Working temperature: | -20°C to +60°C (NBR) |
Surface: | nickel plated |
Shut-Off: | Quick coupling Self-Venting system |
Connection: | Female thread G 1/4 |
Material sleeve: | Plastic |
Connection description: | Bulkhead mountable female thread BSPP |
Connection type: | Female thread |

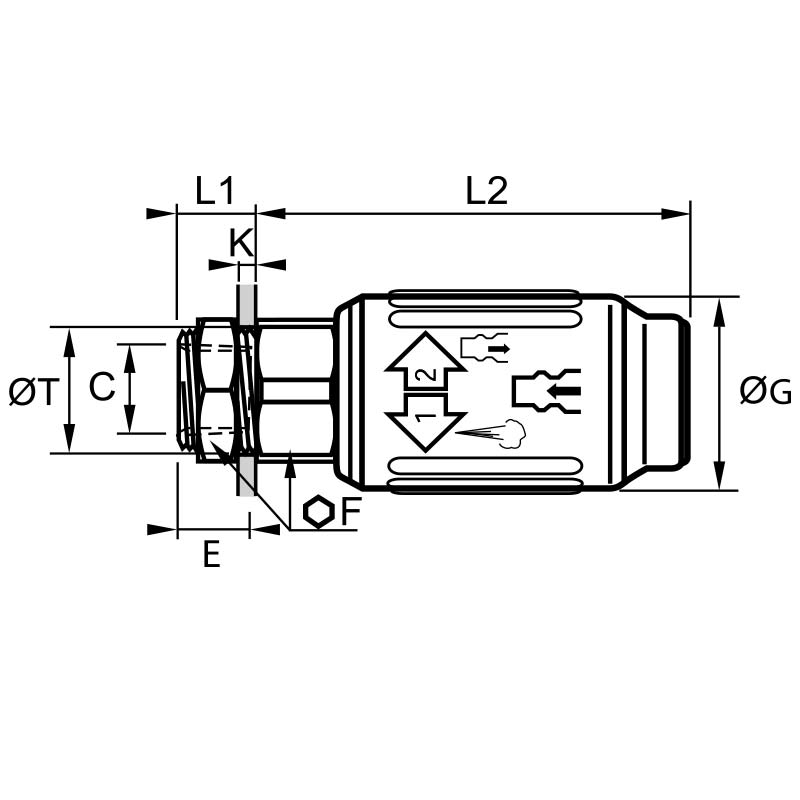

ØT min: | 18,5 |
Bore in mm: | 5,5 |
Maximum working pressure in bar: | 16 |
Material seal: | NBR |
Material balls: | Stainless steel |
Material: | Engineered polymer |
RoHS compliant: | Yes |
Additional information: | Bulkhead mountable |
Weight in kg: | 0,135 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
