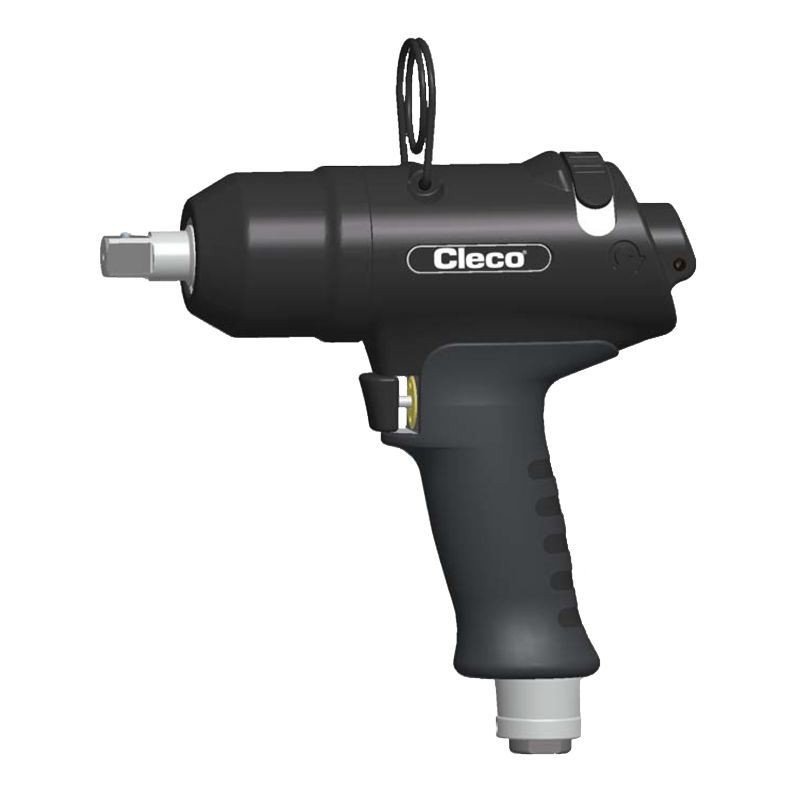

Product information "80PHH604 impulse nutrunner"

non-shut-off impulse nutrunner. Low air consuption due to integrated centrifugal regulator. Long operating times per service interval. Low vibration and noise.
Output: 1/2" Square Drive
Torque in Nm: 80
Weight in kg: 1,4
Idling speed rpm: 6.000
Air connection: female thread 1/4" NPT
Luftverbrauch Leerlauf / Pulsen in m³/min: 0,75
Air supply: down below
Idle sound dB(A): < 80
Hose size: Innen-Ø 3/8" (Ø 9,5 mm), max. 5 m lang
Screw size: M10
Vibrationen (m/s²): < 2,0
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.


80PHH Technische Zeichnung
Length in mm: 190
Side to center in mm: 28,5
