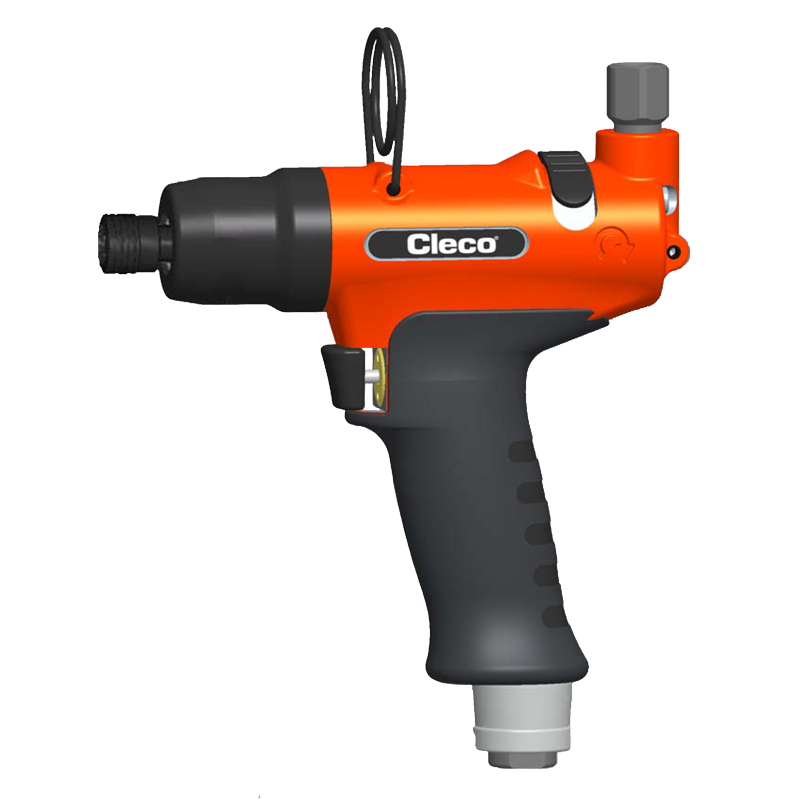

Product information "7PTHHA35Q impulse nutrunner"

Impulse nutrunner with precise shut-off. Low air consuption due to integrated centrifugal regulator. Long operating times per service interval. Low vibration and noise.
Output: 1/4" quick-action chuck
Torque in Nm: 4 - 7
Weight in kg: 0,89
Idling speed rpm: 3.500
Air connection: female thread 1/4" NPT
Luftverbrauch Leerlauf / Pulsen in m³/min: 0,10 / 0,20
Air supply: above
Idle sound dB(A): < 72
Hose size: Innen-Ø 3/8" (Ø 9,5 mm), max. 5 m lang
Screw size: M5
Vibrationen (m/s²): < 1,0
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.


7PTHHA Technische Zeichung
Length in mm: 173
Side to center in mm: 21
Skip product gallery

Zubehör

approx. 10 workdays
Signal-kit TVP110
Signal-kit TVP110
Signal-kit for torque verifier TVP110

€37.48
approx. 10 workdays
Protective cover for 7/11/20PTHHA/20PHHA
Protective cover for 7/11/20PTHHA/20PHHA
Protective cover fitting 7/11/20PTHHA/7/11/20PHHA

€111.03
4-6 workdays
936695PT - Reserve oil filling set
936695PT - Reserve oil filling set
Reserve oil filling set

€186.83
approx. 10 workdays
TVP-110-30-D Torque verifier
TVP-110-30-D Torque verifier
Torque verifier including connecting cables

€3,941.28
