Product name C ØD F G H min H max Price Quantity
7020 04 10 Flow regulator G1/8" 4 mm 18 21,5 38,5 44

€17.83

This article is currently not available!

7020 06 10 Flow regulator G1/8" 6 mm 18 21,5 38,5 44

€17.85

This article is currently not available!

7020 06 13 Flow regulator G1/4" 6 mm 18 21,5 38,5 44

€18.72

This article is currently not available!

7020 08 10 Flow regulator G1/8" 8 mm 24 27 46,5 52,5

€29.11

This article is currently not available!

7020 08 13 Flow regulator G1/4" 8 mm 24 27 46,5 52,5

€19.14

This article is currently not available!

Product information "7020 - Flow regulators, exhaust, made of polymer"

Straight non-return throttle valve, threaded, made of plastic:
- push-in connection
- adjustment with a protective cover
- lock nut guaranteeing stability of adjustment
- Ideally suitable for reduced spaces
Material: Engineered polymer
max. temperature in °C: 70
RoHS compliant: Yes
Material seal: NBR
Material adjusting spindle: Brass nickel plated
Material body: Engineered polymer
Material threaded fitting: Brass nickel plated
Material locknut: Brass nickel plated
Material toothed washer: Stainless steel
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

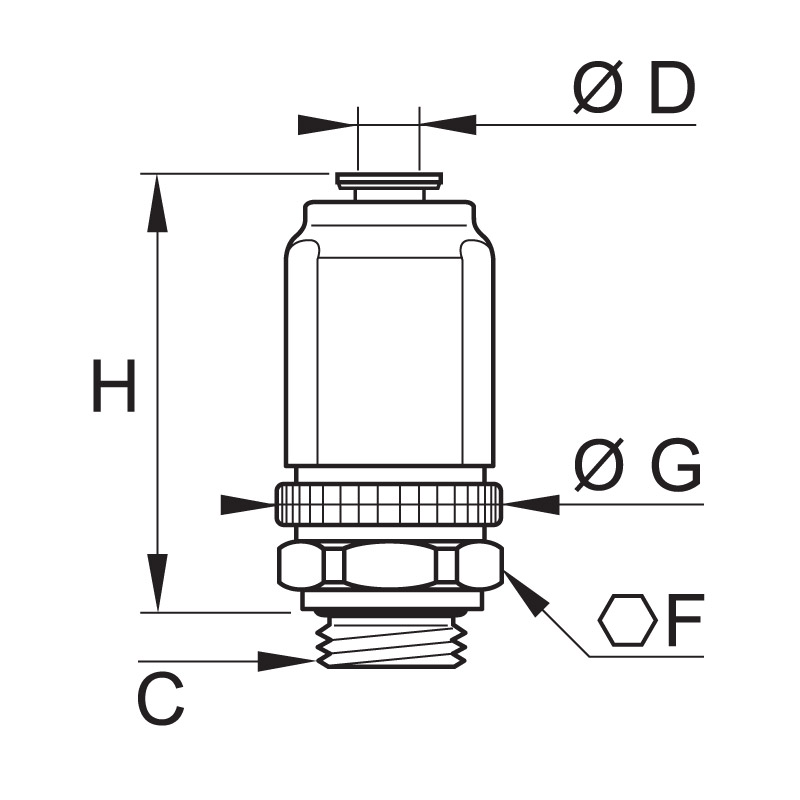

Technische Zeichnung 7020 08 13
