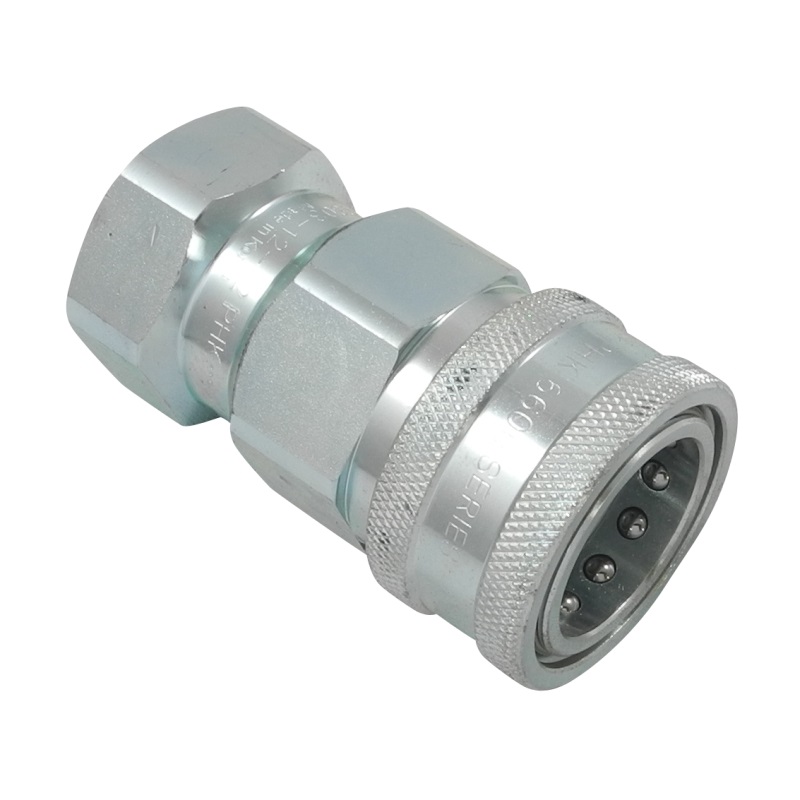

Die Serie IA7500 ist nach den Vorschriften und Maßen der Normspezifikationen ISO 7241-1, Serie A hergestellt.
| Series: | IA |
| Valve: | with |
| Seal: | NBR |
| Old order number: | IA7520 |
| Series long: | 6600 (IA7500) |
| Bore in mm: | 20 |
| Bore area in mm²: | 314 |
| Size in general: | 3/4" |
| Advantages: | NBR seals and back-up ring in PTFE to withstand flow surges at high flow rates. Single acting sleeve. Poppet valving. Chrome 6 freeplated steel. |
| Coupled working pressure in bar: | 280 |
| Working temperature: | -30°C up to +100°C (NBR) depending on the medium. |
| Shut-Off: | Plug Double Shut-Off |
| Connection: | Female thread 3/4" |
| Connection type: | Female thread |
| Material: | Steel |
| Material valve body: | Steel |
| Material valve: | Steel |
| Material valve holder: | Stainless steel |
| Material spring snap ring: | Stainless steel |
| Material balls/pins: | Steel |
| Weight in kg: | 0,2255 |
| Safety locking system: | No |
| Single-hand operation: | Yes |
| Two-hand operation: | No |
| Ball locking: | Yes |
| Vacuum suitable: | No |
| Flat-sealing: | No |
| Pressure eliminator: | No |
| Hydraulics: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
