Series: | 6016 |
Seal: | Without Seal |
Series long: | 6016SF |
Bore in mm: | 16 |
Bore area in mm²: | 200 |

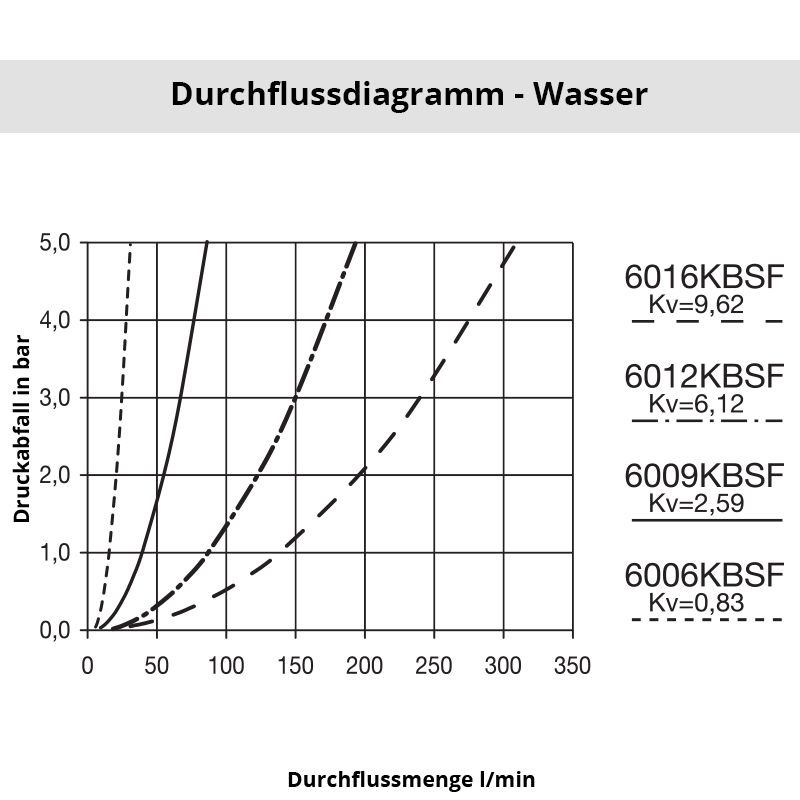

Advantages: | The locking balls guarantee an optimum hold by the insert connection even with forces acting from the side. Optimum flow rate with absolute minimal flow resistance. |
Working pressure: | PB = 20 bar, maximum static working pressure with safety factor of 4 to 1. |
Working temperature: | -15°C up to +200°C (FKM) depending on the medium |
Shut-Off: | Plug Straight-Through |
Connection: | Female thread 3/4" |
Connection description: | Female pipe thread of Whitworth form ISO 228 3/4" |
Connection type: | Female thread |
Material: | Galvanized steel |
Material description: | Steel 9SMnPb28K 1.0718 |
Surface: | zinc plated |
Weight in kg: | 0,1207 |
Self-venting coupling: | No |
Safety locking system: | No |
Single-hand operation: | Yes |
Two-hand operation: | No |
Ball locking: | No |
Pin lock: | No |
Ultra-FLO-valve: | No |
Vacuum suitable: | Yes |
Water-resistant: | Yes |
Flat-sealing: | No |
Suitable breath / respiratory protection: | No |
Pressure eliminator: | No |
Hydraulics: | No |
Pneumatics: | No |
Standard product: | No |
Mould coupling: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
