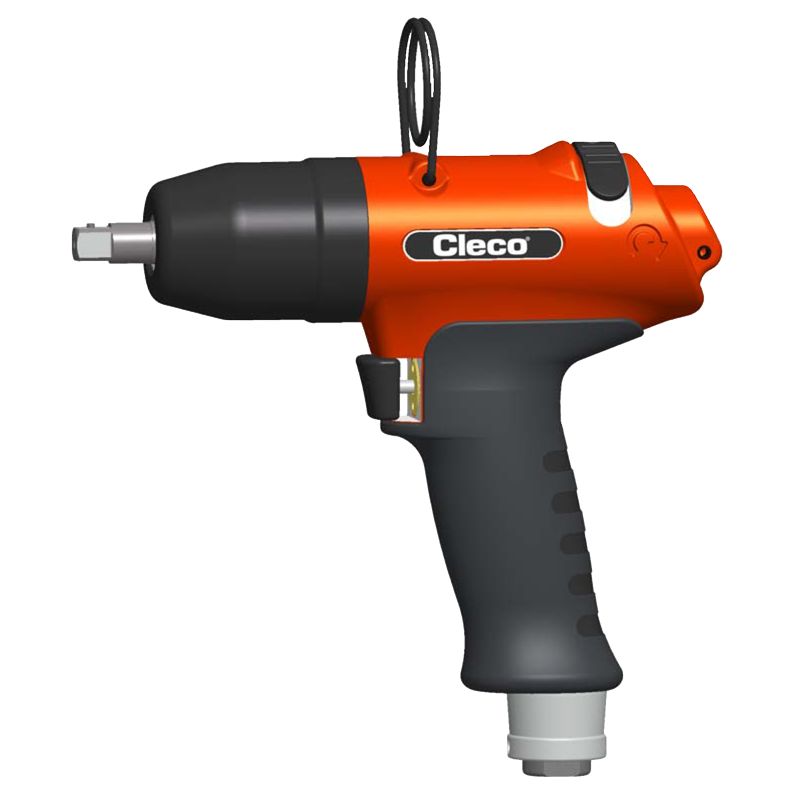

Product information "55PTHH403 impulse nutrunner"

Impulse nutrunner with precise shut-off. Low air consuption due to integrated centrifugal regulator. Long operating times per service interval. Low vibration and noise. quick-action chuck 7/16" available separately as an accessory.
Output: 3/8" Square Drive
Torque in Nm: 30 - 55
Weight in kg: 1,15
Idling speed rpm: 4.000
Air connection: female thread 1/4" NPT
Luftverbrauch Leerlauf / Pulsen in m³/min: 0,15 / 0,45
Air supply: down below
Idle sound dB(A): < 77
Hose size: Innen-Ø 3/8" (Ø 9,5 mm), max. 5 m lang
Screw size: M10
Vibrationen (m/s²): < 1,0
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

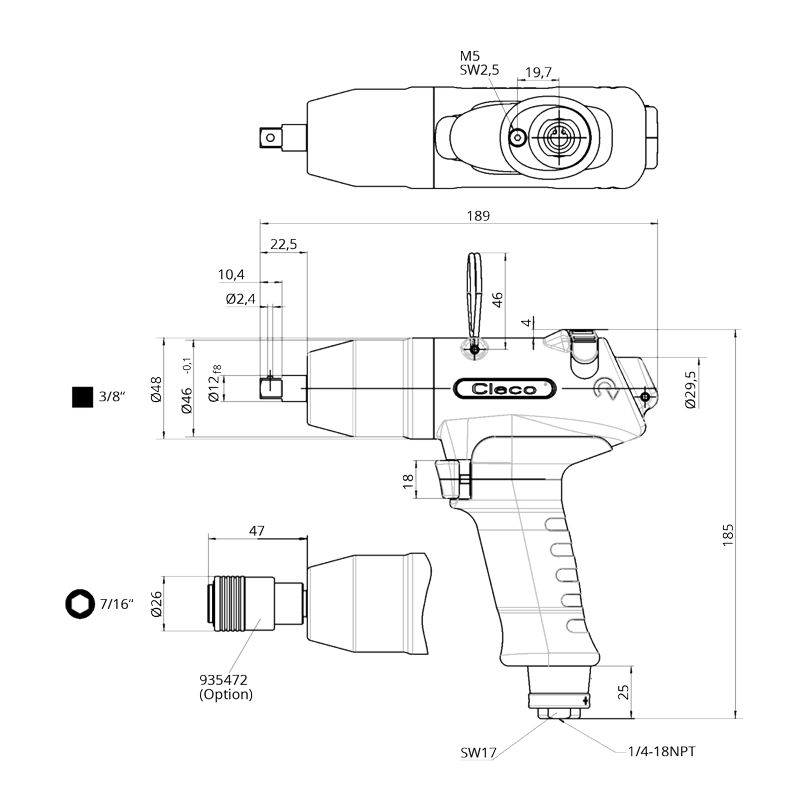

55PTHH Technische Zeichnung
Length in mm: 189
Side to center in mm: 24
