Series: | 48 |
Seal: | FKM |
Series long: | 48SB |
Bore in mm: | 7 |
Bore area in mm²: | 38 |
Advantages: | Coupling system with single-hand operation. The color coding of the coupling and plug offers a guarantee for avoiding mix-ups between media when coupling. The coupling is also available with no valve for a straightthrough system. |
Working pressure: | PB = 10 bar (at 20°C) maximum static working pressure with safety factor 4 to 1. |
Working temperature: | -20°C up to +80°C depending on the medium. |
Shut-Off: | Plug Double Shut-Off |

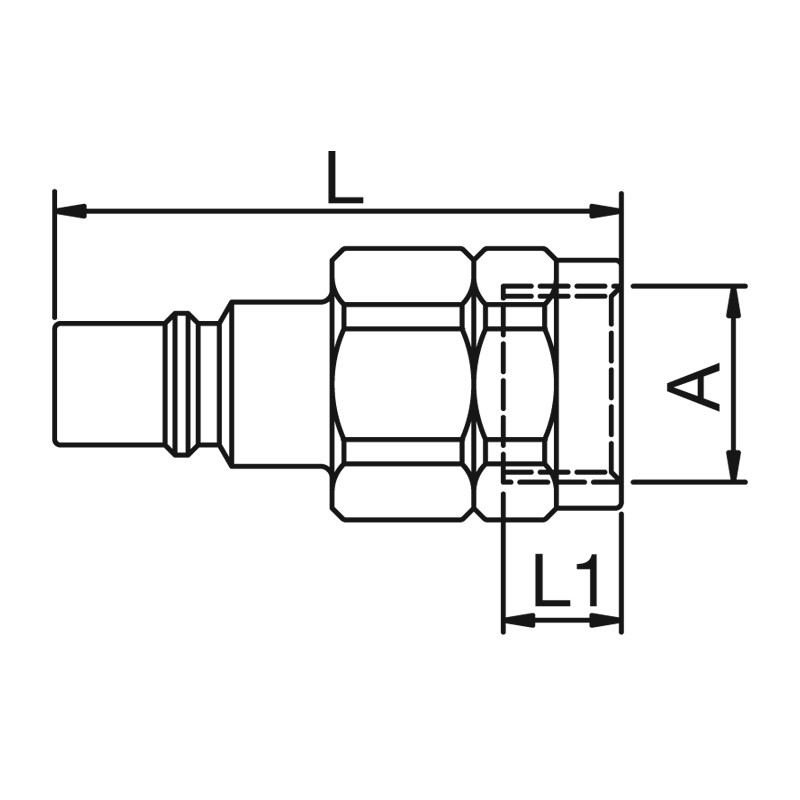

Connection: | Female thread 1/2" |
Connection description: | Female pipe thread of Whitworth form ISO 228 1/2" |
Connection type: | Female thread |
Material: | POM (Delrin) |
Material description: | POM (Delrin) |
Seal description: | Fluororubber |
Surface: | blank finish |
Material valve: | POM, black |
Material spring snap ring: | Stainless steel AISI 316Ti |
Material seal: | Viton® |
Weight in kg: | 0,0157 |
Self-venting coupling: | No |
Safety locking system: | No |
Single-hand operation: | Yes |
Two-hand operation: | No |
Ball locking: | No |
Pin lock: | No |
Ultra-FLO-valve: | No |
Vacuum suitable: | Yes |
Water-resistant: | No |
Flat-sealing: | No |
Suitable breath / respiratory protection: | No |
Pressure eliminator: | No |
Hydraulics: | No |

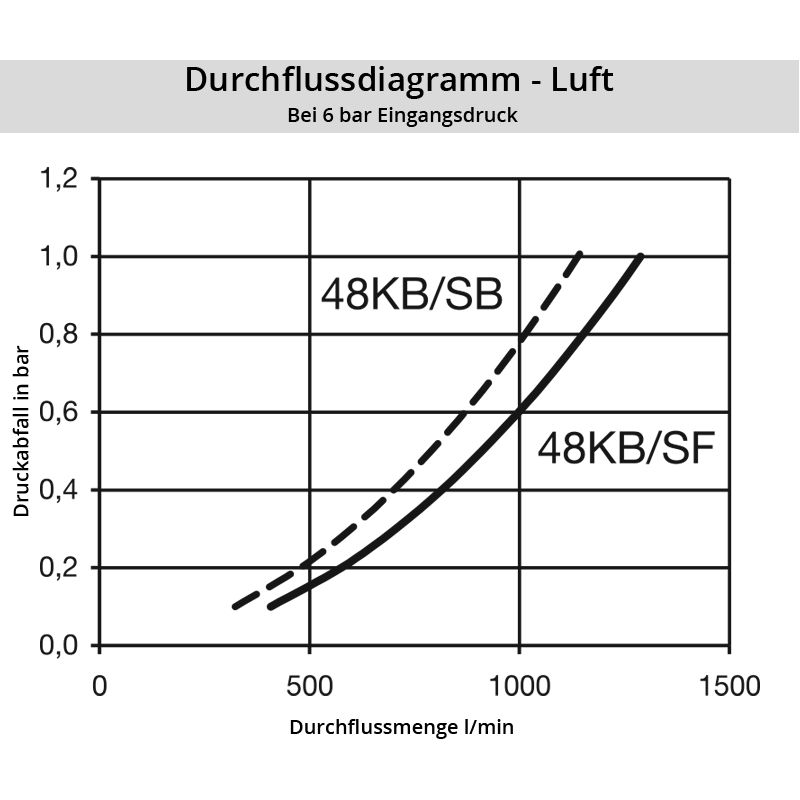

Pneumatics: | Yes |
Standard product: | No |
Mould coupling: | No |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
