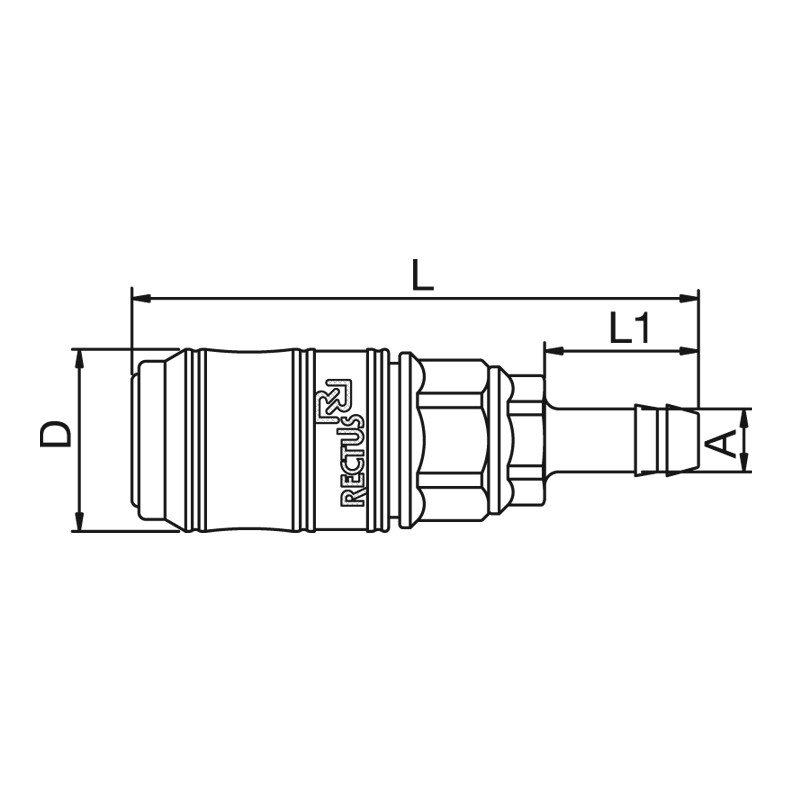

Coupling series made of POM and PVDF has been developed for use in the medical, chemical, food handling, pharmaceutical and laboratory technology industries. The system is also available in a solid plastic design (RectuChem+). Here the metal springs are replaced by springs made of PEEK, an extremely resistant synthetic material.
| Series: | 48 |
| Seal: | FKM |
| Series long: | 48KB |
| Bore in mm: | 7 |
| Bore area in mm²: | 38 |
| Advantages: | Coupling system with single-hand operation. The color coding of the coupling and plug offers a guarantee for avoiding mix-ups between media when coupling. The coupling is also available with no valve for a straightthrough system. |
| Working pressure: | PB = 8 bar (PVDF with springs made of steel) PB = 8 bar (PVDF with springs made of PEEK), maximum static working pressure with safety factor 4 to 1. |
| Working temperature: | -20°C up to +120°C depending on the medium. |
| Shut-Off: | Quick coupling Double Shut-Off |
| Connection: | Hose barb 9mm LW(3/8") |
| Connection description: | Hose barb 9mm LW(3/8") |
| Connection type: | Hose barb |
| Material: | PVDF |
| Material description: | PVDF |
| Seal description: | Fluororubber |
| Surface: | Pressure springs made of PEEK |
| Coding: | R = red |
| Material connection: | PVDF, white |
| Material valve body: | PVDF, white |
| Material sleeve: | PVDF, white |
| Material valve: | PVDF, white |
| Material spring snap ring: | PEEK 450G |
| Material balls/pins: | PEEK 450G |
| Material seal: | Viton® |
| Weight in kg: | 0,001 |
| Coded: | Yes |
| Self-venting coupling: | No |
| Safety locking system: | No |
| Single-hand operation: | Yes |
| Two-hand operation: | No |
| Ball locking: | No |
| Pin lock: | No |
| Ultra-FLO-valve: | No |
| Vacuum suitable: | Yes |
| Water-resistant: | No |
| Flat-sealing: | No |
| Suitable breath / respiratory protection: | No |
| Pressure eliminator: | No |
| Hydraulics: | No |
| Pneumatics: | Yes |
| Standard product: | No |
| Mould coupling: | No |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
