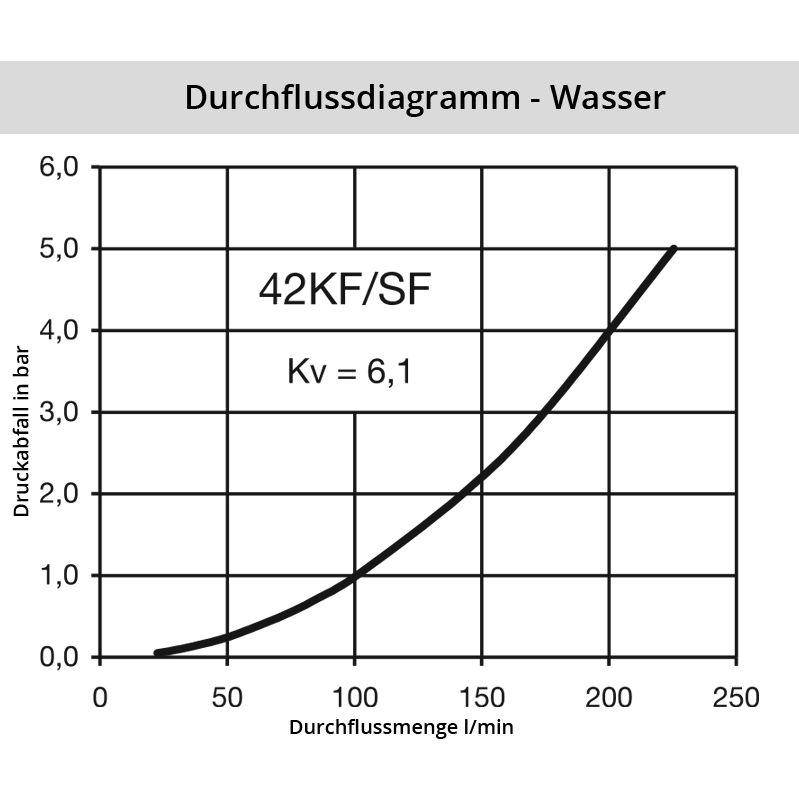

Brass coupling with no valve for applications with liquids in the pressure range up to 35 bar. The couplings are corrosion resistant. The system stands out for a high flow with minimal pressure drop.
| Series: | 42 |
| Seal: | EPDM |
| Series long: | 42KF |
| Bore in mm: | 11 |
| Bore area in mm²: | 95 |
| Advantages: | Non-corrosive. High flow. Minimal pressure drop. |
| Working pressure: | 35 bar maximum static working pressure with safety factor 4 to 1. |
| Working temperature: | -20°C up to +100°C (NBR) -40°C up to +120/150°C (EPDM) -15°C up to +200°C (FKM) depending on the medium. |
| Shut-Off: | Quick coupling Straight-Through |

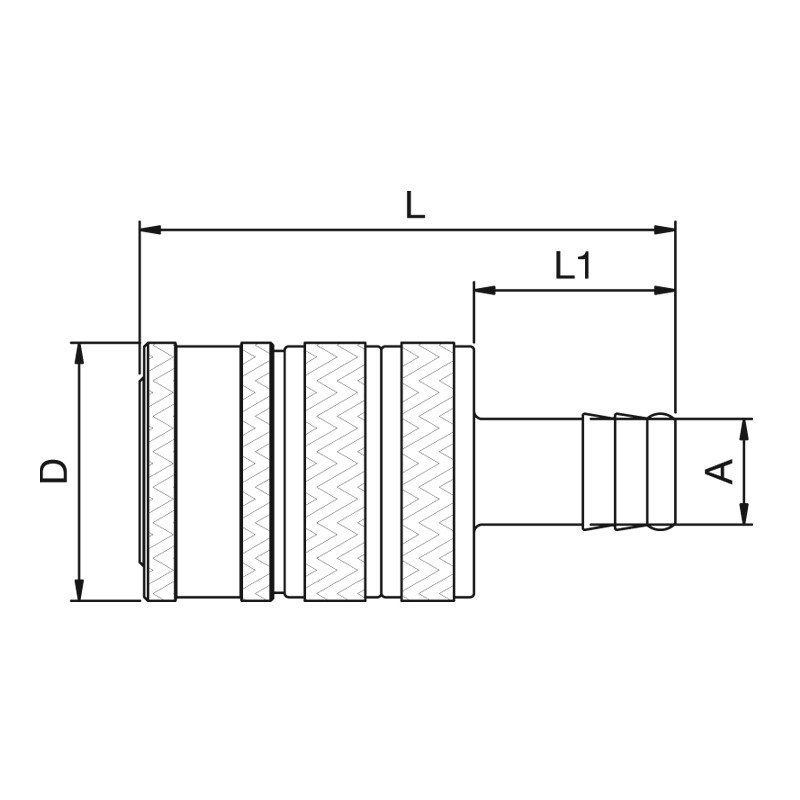

| Connection: | Hose barb 13mm LW(1/2") |
| Connection description: | Hose barb 13mm LW(1/2") |
| Connection type: | Hose barb |
| Material: | brass chrome plated |
| Material description: | Brass CuZn39Pb3 2.0401 (except sleeve) |
| Seal description: | Ethylene-propylene-diene rubber |
| Surface: | chrome plated |
| Material connection: | brass chrome plated |
| Material valve body: | brass chrome plated |
| Material sleeve: | brass chrome plated |
| Material spring snap ring: | stainless steel AISI 301 |
| Material balls/pins: | 1.3541 |
| Weight in kg: | 0,1771 |
| Self-venting coupling: | No |
| Safety locking system: | No |
| Single-hand operation: | Yes |
| Two-hand operation: | No |
| Ball locking: | Yes |
| Pin lock: | No |
| Ultra-FLO-valve: | No |
| Vacuum suitable: | Yes |
| Water-resistant: | Yes |
| Flat-sealing: | No |
| Suitable breath / respiratory protection: | No |
| Pressure eliminator: | No |
| Hydraulics: | No |
| Pneumatics: | Yes |
| Standard product: | No |
| Mould coupling: | No |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
